Quick Details
-
Model Number:
-
2200mm saw balde tips
-
Product name:
-
2200mm diamond segment
-
Material:
-
Diamond + Metal Powder
-
Usage:
-
Wet Cutting
-
Advantage:
-
Fast cutting speed and long lifespan
-
Application:
-
Granite Cutting
-
Grade:
-
A-Grade
-
Feature:
-
Easy Operation
-
Certification:
-
TUV
-
Shape:
-
M shape
-
Technology:
-
Sintered Hot Press
Quick Details
-
Warranty:
-
None
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
LINSING
-
Model Number:
-
2200mm saw balde tips
-
Product name:
-
2200mm diamond segment
-
Material:
-
Diamond + Metal Powder
-
Usage:
-
Wet Cutting
-
Advantage:
-
Fast cutting speed and long lifespan
-
Application:
-
Granite Cutting
-
Grade:
-
A-Grade
-
Feature:
-
Easy Operation
-
Certification:
-
TUV
-
Shape:
-
M shape
-
Technology:
-
Sintered Hot Press

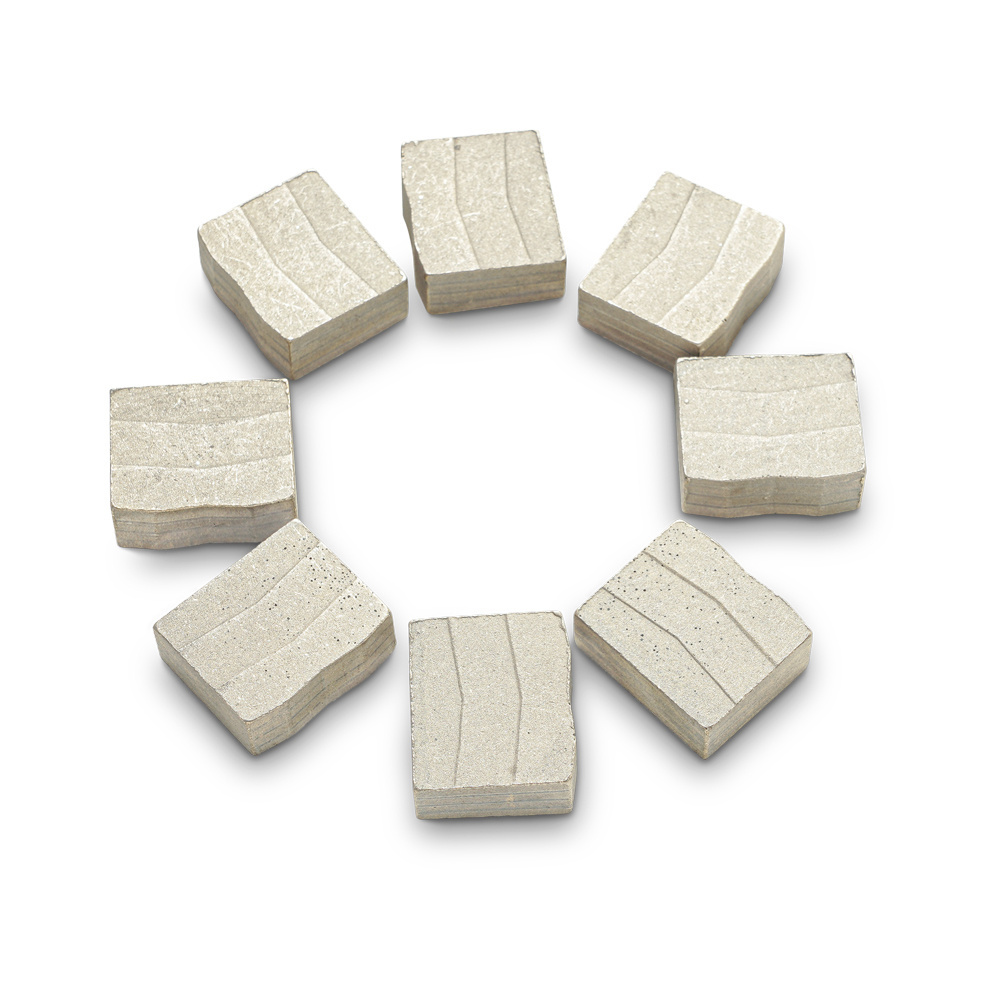

Diamond Segment For Granite Cutting
Product Features:
1. Good sharpness and high efficiency without chipping;
2. Strict QC for stable cutting performance;
3. Long life span with high cost-effective;
4. Segment is easy for opening.
Product Specification:
|
Blade Diameter(inch/mm) |
Steel Core Thickness(mm) |
Segment Specification(mm) |
Segment No.(pcs) |
|
Φ12”/300 |
2.2 |
40x3.2x10(12,15, 20) |
21 |
|
Φ14”/350 |
2.2/2.4 |
40x3.2x10(12,15, 20) |
24 |
|
Φ16”/400 |
2.6 |
40x3.6x10(12,15, 20) |
28 |
|
Φ18”/450 |
2.8/3.0 |
40x4x10(12,15, 20) |
32 |
|
Φ20”/500 |
3.0/3.2 |
40x4.2x10(12,15, 20) |
36 |
|
Φ24”/600 |
3.6/3.8 |
40x5x10(12,15, 20) |
42 |
|
Φ28”/700 |
4 |
40x5.2x10(12,15, 20) |
50 |
|
Φ32”/800 |
4.5 |
40x6x10(12,15, 20) |
46 |
|
Φ36”/900 |
5.0 |
24x7.0/6.2x15(13,20) |
64 |
|
Φ40”/1000 |
5.0 |
24x7.0/6.2x15(13,20) |
70 |
|
Φ48”/1200 |
5.5 |
24x7.4/6.6x15(13,20) |
80 |
|
Φ52”/1300 |
6.0 |
24x8.0/7.2x15(13,20) |
88 |
|
Φ56”/1400 |
6.5 |
24x8.4/7.6x15(13,20) |
92 |
|
Φ64”/1600 |
7.2 |
24x9.2/8.4x15(13,20) |
108 |
|
Φ72”/1800 |
7.5 |
24x10.0/9.2x15(13,20) |
120 |
|
Φ80”/2000 |
8.0 |
24x10.6/9.8x15(13,20) |
128 |
|
Φ88”/2200 |
8.0/9.0 |
24x11.0/10.2x15(13,20) |
132 |
|
Φ100”/2500 |
9.0 |
24x11.4/10.6x15(13,20) |
140 |
|
Φ120”/3000 |
9.5 |
24x12.4/11.6x15(13,20) |
160 |
|
Φ140”/3500 |
9.5 |
24x12.4/11.6x15(13,20) |
180 |
Other specifications are available upon request.
