Quick Details
-
Applicable Material:
-
Plastic Glass Jar
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
UR MACHINE
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1360*1650*1650mm
-
Weight (KG):
-
340
-
Power (kW):
-
0.75 Kw
-
Product name:
-

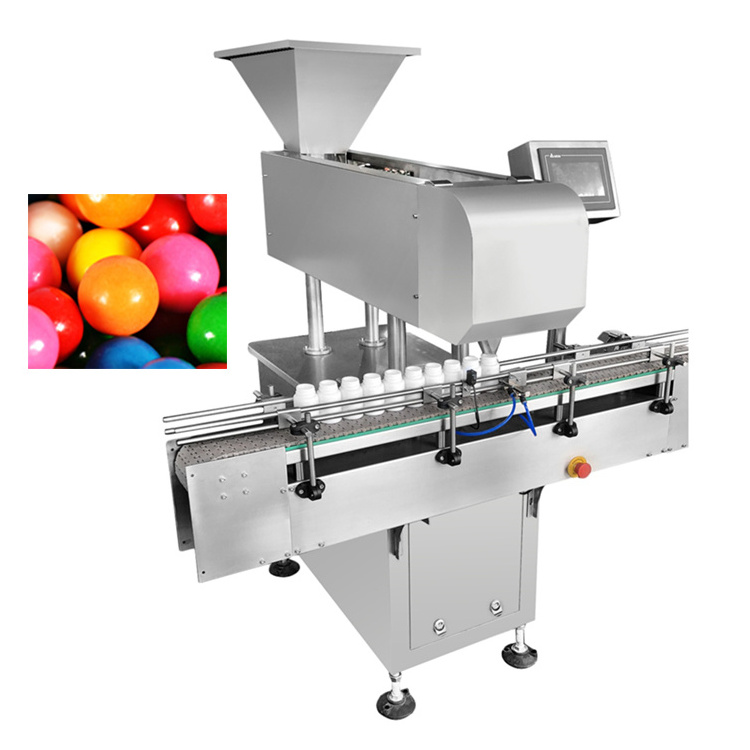

Soft Sweets Counting Machine
-
Name:
-
12 Channel
-
Production Capacity:
-
10-50bpm
-
Keyword:
-
Electronic Bottle Counting Machine
-
Applicable types:
-
chewing gum Counting
-
Material:
-
Staninless Steel
-
Bottle Capacity:
-
1-100pcs/bottle
Quick Details
-
Capacity (bottle/min):
-
8 - 40 bottle/min
-
Bottle Capacity (pcs/bottle):
-
1-9999
-
Capacity (pcs/h):
-
4000 pcs/h
-
Applicable Material:
-
Plastic Glass Jar
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
UR MACHINE
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
1360*1650*1650mm
-
Weight (KG):
-
340
-
Power (kW):
-
0.75 Kw
-
Product name:
-
Soft Sweets Counting Machine
-
Name:
-
12 Channel
-
Production Capacity:
-
10-50bpm
-
Keyword:
-
Electronic Bottle Counting Machine
-
Applicable types:
-
chewing gum Counting
-
Material:
-
Staninless Steel
-
Bottle Capacity:
-
1-100pcs/bottle
Product Overview
Under the driving of the vibration, the pills pass through the regulating valve below the material container, moving forward in order and fall into counting tunnels. When the pill reaches raster holes, the counting photoelectric will produce a pulse signal and counting. The signal is grouped into the left and the right, accumulated and sent to the PLC. When the set quantity is reached, the flashboard will close. At the same time, the bottle to be filled is already in its position. The funnel cylinder board opens, and the counted pills fall into the bottle. Then the tunnel begins another counting, the positioning cylinder opens, and the filled bottle is sent to the next process. A new bottle is placed under the funnel, a new round of counting and filling starts.
Products Description
Product Specification
|
Model
|
URGC-12S
|
|
Capacity
|
10-50 bottles/min
|
|
Working Range
|
1-9999pcs/bottle
|
|
Power
|
0.75 kw
|
|
Filling Error
|
≤2‰ bottles
|
|
Dimension
|
1360*1530*1700(L*W*H)
|
|
Weight
|
340KG
|
