Quick Details
-
Features:
-
Handheld Mini
-
Mounting Type:
-
inserted
-
Description:
-

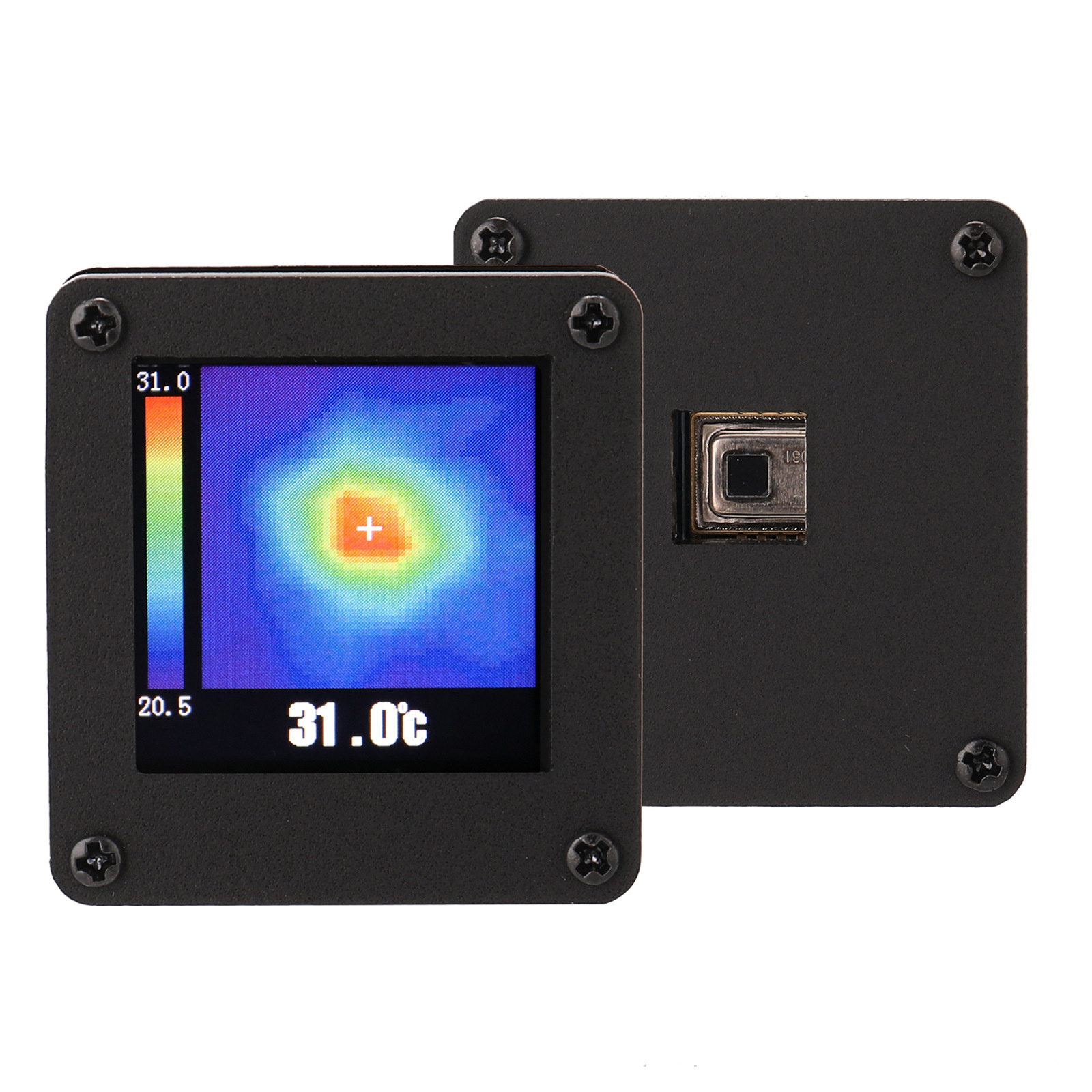

Handheld Mini Thermal Imaging Camera
-
Product Name:
-
Handheld Mini Thermal Imaging Camera
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fuzhongqi
-
Model Number:
-
AMG8833
-
Features:
-
Handheld Mini
-
Mounting Type:
-
inserted
-
Description:
-
Handheld Mini Thermal Imaging Camera
-
Product Name:
-
Handheld Mini Thermal Imaging Camera
Description:
Made of high quality material, practical, easy to operate, wide range of use, long service life.
Features:
The module can be powered directly from USB 5V to produce infrared images.
Use AMG8833 infrared thermal sensor. The resolution is 8*8 and the farthest detection distance is 7 meters.
Can be used for the detection of electronic products.
Portable and compact, high performance, easy to use.
Specification:
Material: PCB
Temperature Accuracy:
High performance type high gain: typical ±2.5℃±4.5℉
High performance type low gain: typical ±3.0℃±5.4℉
Body Detection Distance: 7m or less (reference value) 22.966 ft
Network:
Type. 0.05°C 32.900°F 1 Hz
Type. 0.16°C 32.288°F 10Hz
Viewing angle: 60° typical
Optical axis clearance: within ±5.6° typical
Current consumption:
Typical 4.5mA (normal mode)
Typical 0.2mA (Sleep Mode)
Typical 0.8mA (standby mode)
Setup time:
Typical 50ms (time to enable communication after setup)
Typical 15 seconds (time to stabilize output after setup)
Number of pixels: 64 (Vertical 8*Horizontal 8 matrix)
External Interface: 1²C (fast mode)
Frame rate: Typical 10 fps or 1 fps
Operating modes: Normal, Sleep, Standby (10 sec. or 60 sec. intervals)
Output mode: Temperature output
Calculation mode: no moving average or two moving averages
Temperature output resolution: 0.25℃/32.45℉
Number of sensor addresses: 2 (1²C slave address)
Thermistor output temperature range: -20℃~80℃ (-4℉~176℉)
Thermistor output resolution: 0.0625℃/32.125℉
Item size: 38*36*17mm/1.5*1.4*0.7in
Item weight: 17g/0.6oz
Package size: 90*80*20mm/3.5*3.1*0.8in
Package weight: 19g/0.7oz
Packing list:
1*AMG8833 Thermal Imaging Camera with Case
