- Product Details
- {{item.text}}
Quick Details
-
Encoding Format:
-
H.265 H.264
-
Input:
-
HD-MI,SDI,AES,EBU,analog stereo
-
Output:
-
IP
-
Protocol:
-
HLS (M3U8), UDP, HTTP, RTMP, SRT
-
Multiple Resolutions:
-
1080P,1080I, 720P, 576I, 480I
-
Push Stream:
-
Each channel supports 3 push stream
-
Rate Mode:
-
CBR/VBR
-
Application:
-
Live streaming
-
Management:
-
Web-based NMS
-
Dual Power Supply:
-
AC 110V~220V 50/60Hz
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Yukuan
-
Model Number:
-
YUK9002
-
Encoding Format:
-
H.265 H.264
-
Input:
-
HD-MI,SDI,AES,EBU,analog stereo
-
Output:
-
IP
-
Protocol:
-
HLS (M3U8), UDP, HTTP, RTMP, SRT
-
Multiple Resolutions:
-
1080P,1080I, 720P, 576I, 480I
-
Push Stream:
-
Each channel supports 3 push stream
-
Rate Mode:
-
CBR/VBR
-
Application:
-
Live streaming
-
Management:
-
Web-based NMS
-
Dual Power Supply:
-
AC 110V~220V 50/60Hz

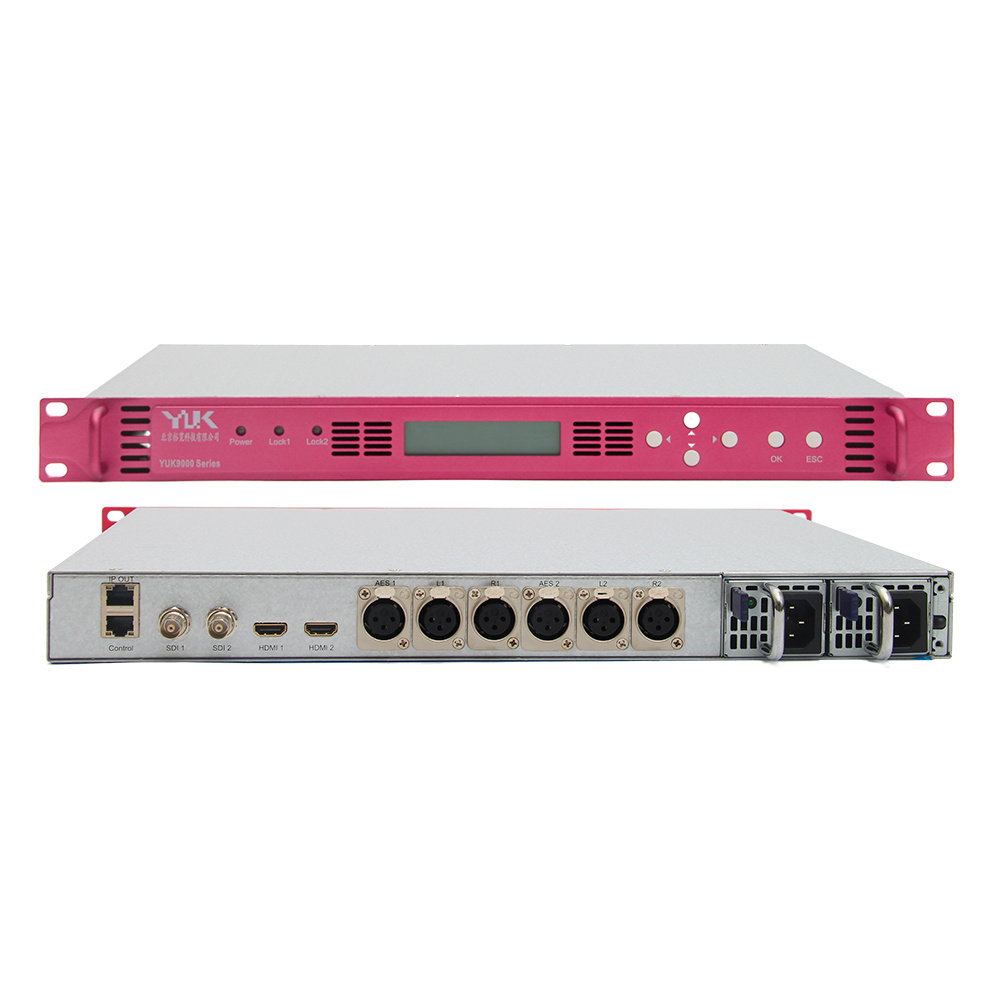

YUK9002
Push Live Stream to Streaming Servers SDI Video Encoder for Live Streaming Encoder IPTV
Product Overview
YUK9002 live streaming encoder adopts H.264 H.265 video compression algorithm and AAC-LC AAC-HE audio compression algorithm. It has excellent video performance and audio reproduction even under severe conditions of low network bandwidth. 1080P25 encoding delay is less than 300ms by using low-latency encoding technology.
Specification
|
Feature
|
Configuration
|
|
|
Input
|
|
|
|
Video
|
2×HD/SD-SDI(BNC)
|
|
|
|
2×HD-MI(support HDCP)
|
|
|
|
Support 720×480i/p, 720×576i/p, 1280×720p, 1920×1080i/p
|
|
|
Audio
|
HD/SD-SDI (embedded audio)
|
|
|
|
HD-MI (embedded audio)
|
|
|
|
Analog audio left and right channels (XLR)
|
|
|
|
AES/EBU (XLR)
|
|
|
Video Encoding
|
|
|
|
Maximum Processing Capacity
|
1920×1080P60, 1280×720P60
|
|
|
Pretreatment
|
Support deinterlacing
|
|
|
Coding Standard
|
H.264 H265 HEVC
|
|
|
Encoding Delay
|
Below 300ms of all supported resolutions
|
|
|
Resolution
|
640×360~1920×1080 adjustable
|
|
|
Frame Rate
|
15Hz~60Hz adjustable
|
|
|
Coding Grade
|
High, medium and low adjustable
|
|
|
Coding Level
|
Adaptive according to parameters
|
|
|
Bit Rate
|
500kbps~10Mbps adjustable, peaks of high, medium and low channels are different
|
|
|
Rate Control
|
CBR/VBR
|
|
|
GOP Length
|
Adjustable
|
|
|
Audio Encoding
|
|
|
|
Sampling Accuracy
|
24bit
|
|
|
Sampling Rate
|
48KHz
|
|
|
Sound Channel
|
Stereo
|
|
|
Coding Standard
|
AAC-LC, AAC-HE
|
|
|
Bit Rate
|
32Kbps~128Kbps
|
|
|
Output
|
|
|
|
Connector
|
1×RJ45, 10/100/1000Mbps, with exchange function
|
|
|
Output Protocol
|
TS Over UDP
|
|
|
|
FLV Over HTTP
|
|
|
|
HLS
|
|
|
|
RTMP
|
|
|
|
SRT
|
|
|
Equipment Management
|
|
|
|
Front Panel
|
LCD display
|
|
|
Network
|
Web browser directly access and manage
|
|
|
Physical Specifications
|
|
|
|
Dimension(L×W×H)
|
440mm×350mm×40mm
|
|
|
Weight
|
5KG
|
|
|
Power
|
AC 110V~220V 50/60Hz
|
|
|
Power Consumption
|
30W
|
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
