Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YING HE
-
Power:
-
550W
-
Dimension(L*W*H):
-
1350*610*1230mm
-
Weight:
-
244
-
Glove Making Machine:
-
Fully Automatic
-
Feature:
-
overlock
-
Glove Type:
-
Cotton Glove
Quick Details
-
Production Capacity:
-
2000 Sets/year
-
Voltage:
-
220V
-
Applicable Industries:
-
Other, Sewing machine dealer, Glove machinery and equipment dealer, Labor insurance machinery and equipment distributo, glove factory
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YING HE
-
Power:
-
550W
-
Dimension(L*W*H):
-
1350*610*1230mm
-
Weight:
-
244
-
Glove Making Machine:
-
Fully Automatic
-
Feature:
-
overlock
-
Glove Type:
-
Cotton Glove
Product Overview

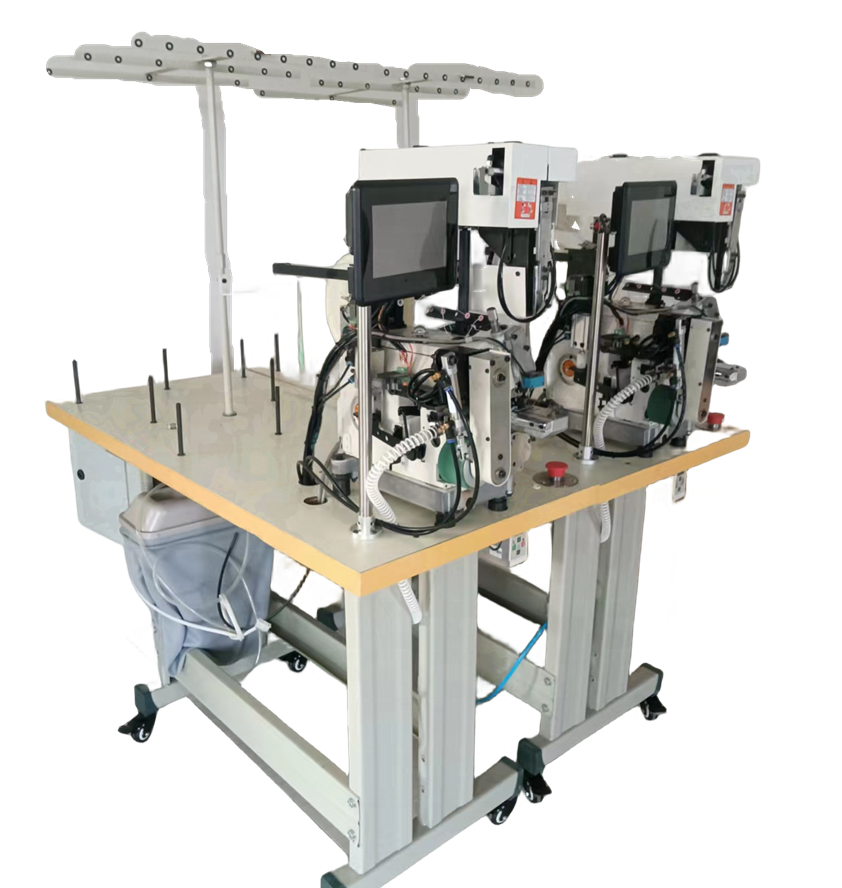

YING HE 5100
glove machine
This automatic glove locking machine: label and no label can be switched, without skilled workers, one person can operate 2-3 sets, the system has 3 sewing modes, 9 parameters one-click memory storage function, 11-bit solenoid valve control, fine sewing more perfect action.
* This machine is composed of two sets of a group, the delivery is a single set of independent packaging, the price is a group of prices. The default surface color of the machine is white, if you need to customize, please contact customer service.
Infrared sensor induction start, with label mode, automatically cut labels and automatically send labels to the station, sewing after the completion of automatic cutting, workers only responsible for sending gloves to the station, no label mode, cut labels and send labels do not work
specification paramete
r
|
Model
|
YING HE 5100 (trademark type)
|
|
Specification
|
13G/ 15G/18G
|
|
Hem width
|
3-6mm
|
|
Label adaptation range
|
width 15-40; length 25-55mm
|
|
Conventional unit fit
|
2units/group
|
|
Clipping form
|
Automatic suction scissors
|
|
rubber-band line
|
Automatic feed
|
|
Maximum speed of sewing machine
|
70000 RPM
|
|
normal service speed
|
4500 RPM
|
|
Main power supply
|
220v
|
|
Other power sources
|
24V
|
|
presser foot lifting height
|
>6mm
|
|
daily output
|
5000-7000 pairs/8 hour
|
|
Normal pressure value
|
4-4.5bar
|
|
Box size
|
1350*610*1230(L*M*H) / set
|
|
Net weight
|
90KG
|
|
Gross weight
|
122KG
|
|
Surface color customization instructions
|
The default surface color of the machine is white, if you need to customize, please contact customer service.
|
Product details
Front
Reverse side
Gloves with a locked edge
Feed wheel, deflector wheel/pushing device/stitch repeating device/rubber band cutting device
Trademark transfer device
Trademark sensor/Material sensor/Electronic drive module
11-position air valve control makes sewing more perfect
Cut wire in suction mode
Cut wire in suction mode
Scram button/trademark heating button
Trademark platen/sewing table
Manual sewing switch
Factory
SIMILAR PRODUCTS
FAQ
Q1：
Are you a factory or trading company?
We are a factory, located in China's sewing machine production base - Taizhou City。
Q2：
What is your main products?
We are specialized in the production of glove sewing machine/glove locking machine/garment locking machine and other overlock sewing machine series, there are different types of locking machine locking different process gloves, since 2007 we began to cooperate with a number of large domestic labor protection gloves upstream and downstream enterprises, as long as it is labor protection gloves mechanical equipment, we can meet your needs.
Q3：
Do I need to pay deposit when contract is done?
Yes, a 30% deposit is required. Our delivery time is based on the date the deposit is credited。
Q4：
How about your after-sales service？
We will always provide patient free technical guidance to ensure the normal operation of the machine.
Q5：
How long is the warranty period?
12 months after installation and commissioning。
Q6 : How about the quality of the parts during the warranty period and post-repair?
We will provide the original parts of this product
We will provide the original parts of this product
