Quick Details
-
Model Number:
-
DC1534ID
-
Identification:
-
Fingerprint, Card, Password
-
Fingerprints:
-
5000
-
Storage Capacity:
-
100,000
-
SDK:
-
Free for software developer
-
Data export:
-
U disk, TCP/IP, USB
-
Software Language:
-
Chinese, English, Arabic, Spanish, French, Thai, Portoguese
-
DC1534ID:
-
Intelligent Fingerprint Time Attendance Device
Quick Details
-
Type:
-
Biometric Time Recording
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
No Brand
-
Model Number:
-
DC1534ID
-
Identification:
-
Fingerprint, Card, Password
-
Fingerprints:
-
5000
-
Storage Capacity:
-
100,000
-
SDK:
-
Free for software developer
-
Data export:
-
U disk, TCP/IP, USB
-
Software Language:
-
Chinese, English, Arabic, Spanish, French, Thai, Portoguese
-
DC1534ID:
-
Intelligent Fingerprint Time Attendance Device

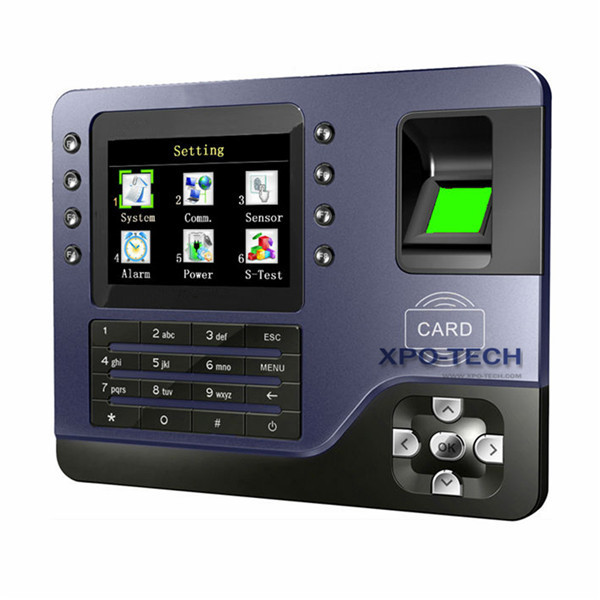

Intelligent Fingerprint Time Attendance Device with Super Capacity
|
DC1534ID is a built-in Linux system and intelligent RIFD and fingerprint attendance time terminal with super capacity, it’s with the most advanced fingerprint arithmetic in the world, and adopts structured design & electronic components for industrial grade, it is 3.5 inch 64K TFT color screen. To store 5,000 fingerprint enrollments and 100,000 records, can download or upload data by U flash memory, TCP/IP communication, message and meeting notification functions, very suitable for medium to large companies.
|
|
* With the most advanced fingerprint arithmetic in the world, automatically analyze the tiny difference of the latest fingerprints vs. the precious fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 1 second.
* Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination, access control is more flexible and secure.
* 3.5 inch 64K TFT color screen
* Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.
* TCP/IP communication, network connection is simple and convenient, support Push Technology, operate access control networking and data collection & sharing freely
* Authentication modes are 1:1 and 1:N, user can register three fingers, max fingerprint capacity to store 5,000(optional to 10,000) enrollment and 100,000 records. With full record warning and log inquiry function. |
|
Model |
DC1534ID |
|
LCD Screen |
3.5 inch TFT( 320*240) |
|
Fingerprint Sensor Resolution |
500DPI (Optical sensor) |
|
Hardware Platform |
AC2911 |
|
Algorithm Version |
RSFv5.1 |
|
CPU |
ARM926EJ CPU, Running Frequency: 200MHZ |
|
Communication |
TCP/IP, USB Memory Disk, USB cable |
|
User Capacity |
5,000(can upgrade to 10,000) |
|
Records Capacity |
100,000 |
|
Software OS |
XP/Win2003/Vista/Win7/Win8 (32bit / 64bit) |
|
Identification Time |
< 1 S |
|
Authentication Method |
Fingerprint/ RFID Card (125Khz, EM4100) /Password |
|
Language |
Chinese / English / Spanish/Arabic/ German (could customize others) |
|
Bell |
Built-in timing bell |
|
Operation Mode |
Off-line/Online |
|
Power |
DC 12V/0.5A |
|
FRR |
<1% |
|
FAR |
<0.00001% |
|
Operating Mode |
Off-line/On-line |
|
Authentication Mode |
1:1, 1:N |
|
Operating environment |
Operating Temp: 0-50C, Humidity:80% |
|
Dimension(L*W*H)mm
|
Terminal – 190*140*37mm Package – 325*103.5*255mm |
|
Weight |
Terminal – 0.455 Kg Package – 1.117Kg |
Software Language: Chinese, English, Arabic, Spanish, French, Thai, Portoguese
