its widely applicable to various construction projects.
The complete machine adopts beautiful shape;
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
construction
-
Span:
-
65m
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
52000 kg
-
Keyword:
-
Towr Crane
-
Model:
-
HTP6518
-
Color:
-
Optional
-
Brand:
-
avencer
-
Max.load:
-
10T
-
Tip load:
-
1.8t
-
Jib length:
-
65m
-
Origin:
-
China Original
-
Material:
-
Q355B
-
Apply to:
-
House Building
Quick Details
-
Rated Loading Capacity:
-
10 TON
-
Max. Lifting Height:
-
61m
-
Marketing Type:
-
Hot Product
-
Application:
-
construction
-
Span:
-
65m
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
52000 kg
-
Keyword:
-
Towr Crane
-
Model:
-
HTP6518
-
Color:
-
Optional
-
Brand:
-
avencer
-
Max.load:
-
10T
-
Tip load:
-
1.8t
-
Jib length:
-
65m
-
Origin:
-
China Original
-
Material:
-
Q355B
-
Apply to:
-
House Building
Products Description

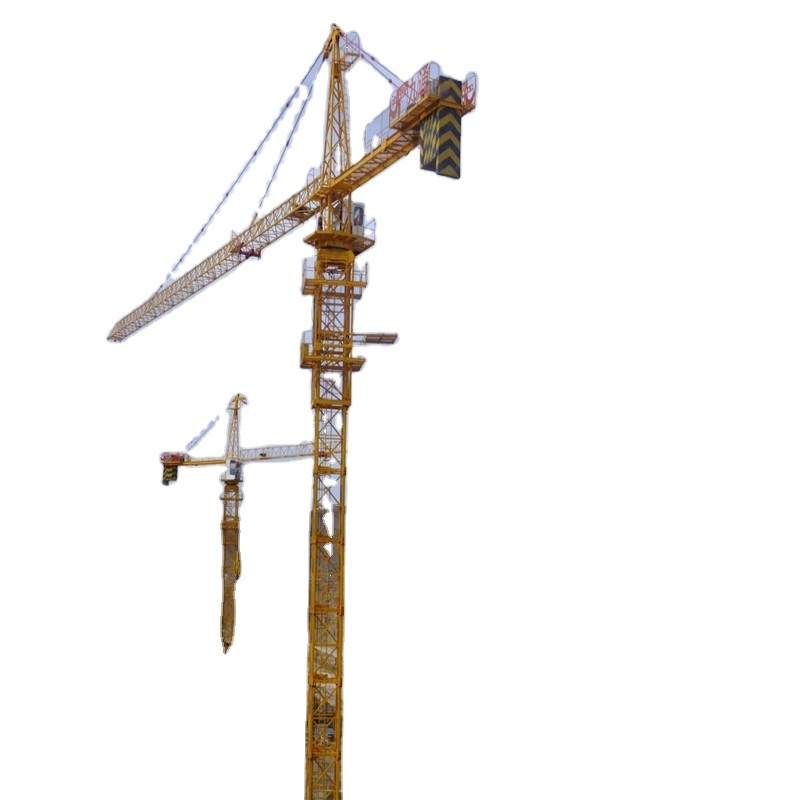

HTP6518 10ton building topless tower crane
HTP6518 10ton building topless tower crane
series tower crane is topless/flat-headed tower crane，with new design,
This crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall...
topless tower crane
|
model
|
QTZ40
|
QTZ63
|
QTZ80
|
QTZ100
|
QTZ125
|
QTZ160
|
|
Radius(m)
|
40/42/45
|
56/50
|
60/55
|
60
|
60
|
65
|
|
Max. Height(m)
|
100
|
141
|
200
|
180
|
200
|
190
|
|
Max. Hoisting Capacity(t)
|
4
|
6
|
6/8
|
8
|
8/10
|
10/12
|
|
Standard Mast Section Size(m)
|
1.4*1.4*2.5
|
1.6*1.6*2.5 or L46A1
|
1.6*1.6*2.5 or L46A1
|
1.6*1.6*2.5 or L46A1
|
1.835*1.835*2.5 or L46A1 or L68A1
|
1.835*1.835*2.5 or L68A1
|
|
Hoisting Speed(r/min)
|
76/38
|
80/40/8.5
|
80/40
|
100/50
|
100/50
|
100/50
|
|
Slewing Speed(r/min)
|
0.77
|
0.62
|
0.65
|
0.55
|
0.6
|
0.6
|
|
Luffing Speed(m/min)
|
43.2/21.6
|
42/21
|
60/30/10
|
60/30/10
|
60/30/10
|
60/30/10
|
Details Images
Product packaging
standard shipping loading
fixing by wire rope,rope and plywood parts.
