Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ensun
-
Model Number:
-
OEM
-
Pressure:
-
Pressuried
-
Vacuum tube:
-
58*1800mm
-
Heat Source:
-
Solar
-
Tank capacity:
-
60L/100L/120L/150L/200L/260L/300L
-
Market:
-
Europe
-
Insulation layer:
-
50mm Foam Polyurethane
-
Bracket:
-
0/20/27/38/45degree
-
Weld:
-
Auto Welding
-
color:
-
customized
Quick Details
-
Warranty:
-
More than 5 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Type:
-
Evacuated Tube
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
200
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ensun
-
Model Number:
-
OEM
-
Pressure:
-
Pressuried
-
Vacuum tube:
-
58*1800mm
-
Heat Source:
-
Solar
-
Tank capacity:
-
60L/100L/120L/150L/200L/260L/300L
-
Market:
-
Europe
-
Insulation layer:
-
50mm Foam Polyurethane
-
Bracket:
-
0/20/27/38/45degree
-
Weld:
-
Auto Welding
-
color:
-
customized
|
|
Absorbing Area
|
Vacuum tube
|
|
|
Tank Capacity
|
Qty.per
|
||
|
|
|
|
|
|
|
20GP/40HQ
|
||
|
MODEL NO.
|
|
|
|
|
|
Container
|
||
|
|
( m2 )
|
Diameter (mm)
|
Length (mm)
|
No:(pcs)
|
(Liter)
|
(set)
|
||
|
ENSUN-CPS100-58/1.8
|
0.8
|
58
|
1800
|
10
|
100
|
70/178
|
||
|
ENSUN-CPS120-58/1.8
|
0.96
|
58
|
1800
|
12
|
120
|
62/158
|
||
|
ENSUN-CPS150-58/1.8
|
1.9
|
58
|
1800
|
15
|
150
|
51/128
|
||
|
ENSUN-CPS180-58/1.8
|
2.16
|
58
|
1800
|
18
|
180
|
48/118
|
||
|
ENSUN-CPS200-58/1.8
|
2.4
|
58
|
1800
|
20
|
200
|
39/98
|
||
|
ENSUN-CPS240-58/1.8
|
2.8
|
58
|
1800
|
24
|
240
|
33/80
|
||
|
ENSUN-CPS300-58/1.8
|
3.6
|
58
|
1800
|
30
|
300
|
27/68
|
||
|
ENSUN-CPS360-58/1.8
|
4.3
|
58
|
1800
|
36
|
360
|
22/60
|
||
|
Description
|

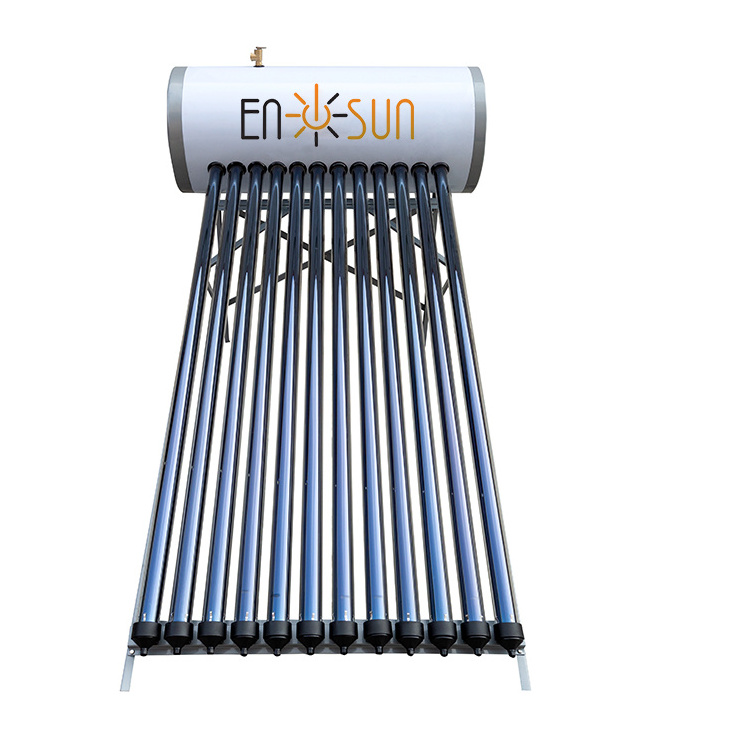

Compact Pressurized solar water heater
|
|
Material of out tank
|
0.4mm thickness color steel/sus 201BA
|
|
Material of inner tank
|
Food grade 1.0-1.5mm thickness SUS304-2B or 316L
|
|
Tank insulating layer
|
50-55mm 45kg/m³ high-density polyurethane foamed
|
|
Working pressure
|
6 Bar
|
|
Testing pressure
|
10 Bar
|
|
Solar collector tube
|
3.3 Borosilicate glass with N/Al coating
|
|
Thickness of glass tube
|
1.6mm/1.8mm/2.0mm/2.2mm
|
|
Vacuum tube tightness
|
P<=0.005 Pa
|
|
Bracket
|
Stainless steel，Galvanized steel，Aluminum alloy，Thickness optional
|
|
Design of tank
|
5 holes for air vent,water inlet and outlet,electric heater,Mag Rod
|
|
Welding
|
Argon arc welding
|
|
Fastening pieces
|
Made of stainless steel screw
|
|
Tank capacity
|
From 100-300L
|
1. Is solar water heater a viable alternative to gas or electricity?
Solar should not be seen as a alternative to gas or electricity, but rather a supplement. Solar cannot totally replace the need for gas or electric heating as there are sometimes days when there is little sunlight. When averaged over a year, a correctly sized solar system can provide 60%-70% of a household's hot water needs. Providing more than this is unadvisable, as too much heat will be produced in the summer. The hot water system system can easily be automated so hot water is guaranteed regardless of sunlight levels.
2. Can KESUN solar collectors be used in cold conditions?
Yes.KESUN collectors can be used in temperatures as low as -30℃, although performance is greatly reduced in such extreme conditions. Good heat output is still achieved in mild sub-zero conditions.
3. What happens if one of the solar tubes is broken?
Firstly, tubes are very strong and not easily broken, but if the worst should happen, solar tubes can be replaced very easily. They are inexpensive and available, you can contact us for purchase. The KESUN solar collectors can operate with several broken tubes, but the efficiency will be reduced, so it is recommended that broken tubes be replaced immediately.
4. Will water be heated on a cloudy day?
Yes. Although the heat output of the solar collector is reduced on overcast days it will still be able to provide heating. If it is a heavily clouded day or raining, then more gas or electric boosting may be required to maintain water at the required temperature. This system will be automated so you don't have to worry about running out of hot water on a rainy day.
