Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mingxin
-
Voltage:
-
220V/380V
-
Weight:
-
750 KG
-
Dimension(L*W*H):
-
Types
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

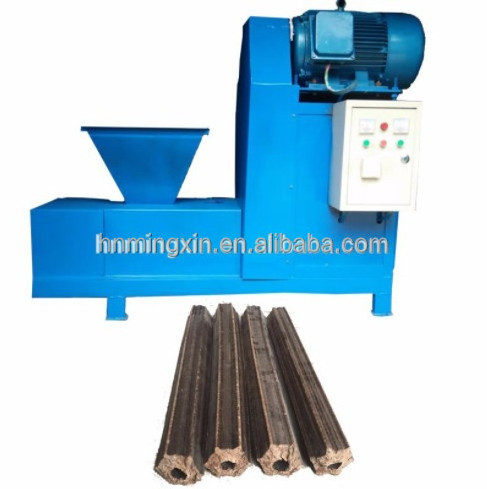

artificial sawdust grass charcoal briquette making machine
-
Raw material:
-
Biomass Wastes
-
Product name:
-
Charcoal Making Machine
-
Usage:
-
Making coal
-
Capacity:
-
200-300kg/h(variable)
-
Model:
-
depend on capacity
-
Color:
-
White,green,red,blue
-
Mold:
-
Cube, round(variable)
-
Heating Method:
-
Electricity
Quick Details
-
Warranty:
-
1 Year
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
Motor
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mingxin
-
Voltage:
-
220V/380V
-
Weight:
-
750 KG
-
Dimension(L*W*H):
-
Types
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
artificial sawdust grass charcoal briquette making machine
-
Raw material:
-
Biomass Wastes
-
Product name:
-
Charcoal Making Machine
-
Usage:
-
Making coal
-
Capacity:
-
200-300kg/h(variable)
-
Model:
-
depend on capacity
-
Color:
-
White,green,red,blue
-
Mold:
-
Cube, round(variable)
-
Heating Method:
-
Electricity
Product Description
Introduction
1. The machine has the characteristics of reasonable design, reliable manufacturing quality, simple structure, convenient operation, small volume, less area, less work and electricity saving.
2. The designed automatic control electric heating device can adjust the dry humidity of the material randomly, ensure the stability of the material forming and improve the working
4. It is suitable for the pressing and forming of various biomass raw materials, with less energy consumption and high production efficiency.
efficiency.
3. The main parts of this product are specially treated with wear-resistant material, so it can be continuously pressed and durable.
6. The old type of oil - based lubrication is oil immersion lubrication, as long as it is not short of oil, it can be used for many years.
5. Three bearing the heart of the old machine is four, an increase of the machine stability and durability.
7. Increase the pitch to increase the feed volume, thus greatly increase the output.
8. The structure of the molding cylinder is improved, the friction force between the machine and the raw material is reduced, and the density of the mandrel is increased.
Specification
|
Model
|
Power (kw)
|
Capacity (kg/h)
|
Dimension (mm)
|
Weight (kg)
|
|
50 A
|
15
|
150-200
|
1600*560*2000
|
730
|
|
50 B
|
18.5
|
200-300
|
1600*560*2000
|
750
|
|
50 C
|
22
|
300-400
|
1600*560*2000
|
800
|
Screw Propeller:
The Screw advanced design,high speed of producing rod ,high density,high resistance to wear.
Die Mold:
It Can determine the shape of the wooden rod, we mainly have four-sided cylindrical and six-sided cylindrical.
Heating Ring:
The heating ring is mainly for shaping the raw materials. The most important thing is to promote the softening and combination of lignin to improve the compactness and hardness of the rod; the softening of the lignin in the sawdust to a suitable viscosity results in a tighter interior of the rod. To strengthen the quality of the mechanism salary bar.
Application
Charcoal briquette making machine is using sawdust, straw (corn straw, soybean straw, sorghum straw, cotton stalk, rape straw, peanut, sunflower stalk), rice husk, grasses, shrubs, bamboo head, butts, such as bag as seas raw material, high temperature and high pressure area is formed after wood crusher in the spiral propulsion device and the heating ring under the action of loose material into the hollow rod. The product has high density, small size, good flammability, and can replace firewood and coal. The general products outside diameter 50-60 mm, diameter 15-20 mm, hollow four or six angle form. It can also be made into spherical, granular and honeycomb coal.
Packing & Delivery
Inner package:
Plastic packing
Outer package:
Wooden case
Delivery:
15 working days after placing the order.
