1. Constant voltage design（Constant Voltage Mode）2. Universal AC input
3. Sealed inside with plastic irrigation. Conform with IP67 rating
4. Withstand 300VAC surge input for 5 seconds5. Built-in Protections: Short circuit/Overload
6. Cooling by free air convection
7. 100% full load burn-in test
8. High performance
- Product Details
- {{item.text}}

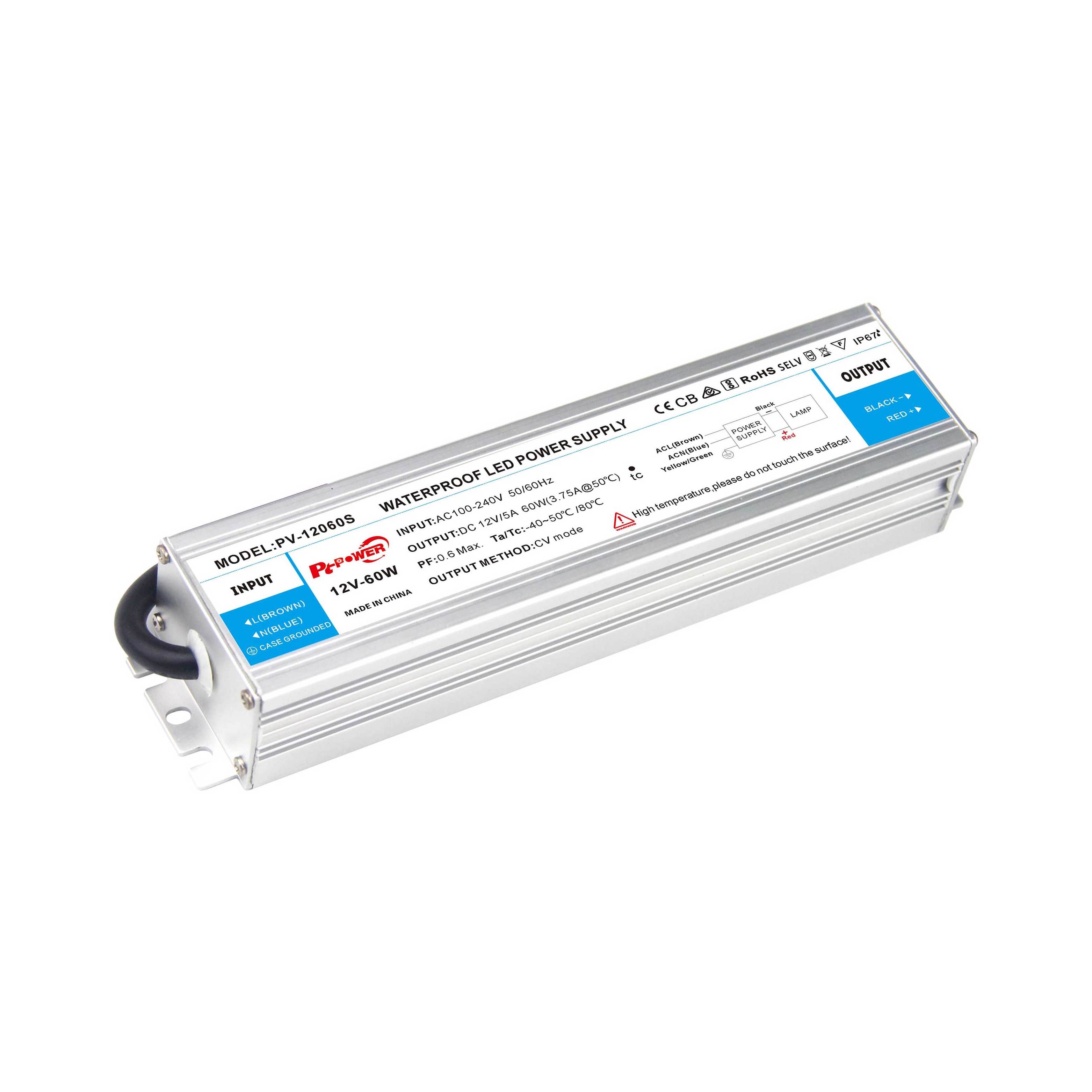

Quick Details
-
Brand Name:
-
Pt POWER
-
Model Number:
-
PV-12060S
-
Output Frequency:
-
50/60 Hz
-
Type:
-
Constant Voltage LED Driver
-
Application:
-
LED Lighting
-
Housing Material:
-
Aluminum Shell
-
Color:
-
Silver
-
Waterproof Level:
-
IP67
-
PF:
-
>0.6
-
OEM:
-
YES
-
Certification:
-
TUV-CE(EMC) CB SAA
-
Size:
-
160*42*30mm
-
Efficiency:
-
>85%
Quick Details
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
0.35
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Pt POWER
-
Model Number:
-
PV-12060S
-
Output Frequency:
-
50/60 Hz
-
Type:
-
Constant Voltage LED Driver
-
Application:
-
LED Lighting
-
Housing Material:
-
Aluminum Shell
-
Color:
-
Silver
-
Waterproof Level:
-
IP67
-
PF:
-
>0.6
-
OEM:
-
YES
-
Certification:
-
TUV-CE(EMC) CB SAA
-
Size:
-
160*42*30mm
-
Efficiency:
-
>85%
Features：
|
Model No.：
|
|
PV-12060S
|
|
|
PV-24060S
|
|
|
|||||
|
Output
|
Rated Output Voltage
|
12V
|
|
|
24V
|
|
|
|||||
|
|
Output current Range
|
0-5A
|
|
|
0-2.5A
|
|
|
|||||
|
|
Rated Output Power
|
60W
|
|
|
|
|
|
|||||
|
|
Output Voltage Precision
|
±3%
|
|
|
|
|
|
|||||
|
|
Output Ripple and Noise
|
＜240mVP-P
|
|
|
480mVP-P
|
|
|
|||||
|
|
Load Regulation
|
±2%
|
|
|
|
|
|
|||||
|
|
Start/Rise Time
|
<1000ms/230VAC
|
|
|
|
|
|
|||||
|
|
Retention Time
|
20ms/230VAC
|
|
|
|
|
|
|||||
|
Input
|
Input Voltage Range
|
100-240VAC
|
|
|
|
|
|
|||||
|
|
Input Frequency Range
|
50-60HZ
|
|
|
|
|
|
|||||
|
|
Power Efficiency
|
>85%
|
|
|
>86%
|
|
|
|||||
|
|
Leak Current
|
＜0.7mA/230VAC
|
|
|
|
|
|
|||||
|
Protection
|
Overload Protection
|
When the load current exceeds 110-140% of the output current, the power supply will enter protection state. Protection Mode:
Hiccup Mode. |
|
|
|
|
|
|||||
|
|
Short Circuit Protection
|
Protection mode: hiccup mode. When the short-circuit fault is removed, the power supply will automatically resume work.
|
|
|
|
|
|
|||||
|
Working Environment Protection
|
Working Temperature
|
-40℃~70℃ (Pls refer to "Derating Curve")
|
|
|
|
|
|
|||||
|
|
Storage Temperature
|
-40℃~80℃
|
|
|
|
|
|
|||||
|
|
Ingress Protection Rating
|
90%RH non condensing, refer to IP67
|
|
|
|
|
|
|||||
|
|
Shockproof Character
|
10-500HZ,2G 10min/1cycle,preiod for 60min,each along X,Y,Z axes
|
|
|
|
|
|
|||||
|
|
Temperature Coefficient
|
±0.03%℃ (0-50℃)
|
|
|
|
|
|
|||||
|
Security Features
|
Security Standard
|
IEC 61347-2-13 2014+A1 IEC 61347-1 2015+A1
|
|
|
|
|
|
|||||
|
|
Withstand Voltage
|
I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG:1.5KVAC
|
|
|
|
|
|
|||||
|
|
Insulation Resistance
|
I/P-O/P:>100M Ohms/500VDC/25℃/70% RH
|
|
|
|
|
|
|||||
|
Others
|
Wires
|
Input：《VDE》 H03VV-F 300/500V 2x0.75mm² L=200mm
Output:《VDE》 H03VV-F 300/500V 2x0.75mm² L=200mm |
|
|
|
|
|
|||||
|
|
Outter Size
|
160*42*30mm(L*W*H)
|
|
|
|
|
|
|||||
|
|
Weight/PCS
|
345g
|
|
|
|
|
|
|||||
FAQ
Q1: Are you a manufacturer? If yes, in which city?
Q2. What is the warranty for your LED power supplies?
A2: We offer LED power supplies with warranties of 2 years, 3 years, and 5 years to accommodate various market demands.
Q3. Do you offer free samples?
A3: Yes, free samples are available, but the buyer is responsible for the shipping costs.
Q4. Does your LED power supplies are original?
A4: Yes, all of our LED power supplies are 100% brand new originals.
Q6. Can you help me make my own design? How about the sample fee and sample time?
A1: Yes, we are a professional manufacturer located in Zhuhai. Welcome to visit us. Please kindly inform us of your schedule before your arrival, and we will prepare to pick you up.
Q2. What is the warranty for your LED power supplies?
A2: We offer LED power supplies with warranties of 2 years, 3 years, and 5 years to accommodate various market demands.
Q3. Do you offer free samples?
A3: Yes, free samples are available, but the buyer is responsible for the shipping costs.
Q4. Does your LED power supplies are original?
A4: Yes, all of our LED power supplies are 100% brand new originals.
Q5. What is your delivery date?
A5: The delivery date for our products is typically between 3 to 15 days after payment receipt, depending on your order quantity.
A5: The delivery date for our products is typically between 3 to 15 days after payment receipt, depending on your order quantity.
Q6. Can you help me make my own design? How about the sample fee and sample time?
A6: Certainly, we have a professional development team dedicated to designing new projects. We offer
OEM
and
ODM
services to many customers. You can share your ideas or provide us with drawings, and we will develop it accordingly. Regarding samples, the lead time is typically around 15 to 30 days. The sample fee is determined based on the material and size of the product. If the sample meets your satisfaction, the sample fee can be refunded after regular mass orders.
