Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JideTech
-
Model Number:
-
NK2-32H-8MP
-
Video Compression Format:
-
H.264/H.265/H.265+ MJPEG Video Compression
-
Lens:
-
3.6mm Fixed Lens
-
IR Distance:
-
20m
-
Resolution:
-
5MP
Quick Details
-
Special Features:
-
Human Motion Tracking, NIGHT VISION, Motion Detection, Waterproof / Weatherproof, Area Detection, Vehicle Detection
-
Function:
-
NIGHT VISION, Waterproof / Weatherproof
-
Customized support:
-
Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JideTech
-
Model Number:
-
NK2-32H-8MP
-
Video Compression Format:
-
H.264/H.265/H.265+ MJPEG Video Compression
-
Lens:
-
3.6mm Fixed Lens
-
IR Distance:
-
20m
-
Resolution:
-
5MP
Product Description
Specification
|
Model number
|
NK2-32H-5MP
|
|
Sensor
|
1/2.8" SSC30KQ
|
|
Lens
|
3.6mm fixed Lens
|
|
IR LED
|
4PCS LED, Support Night vision 20meters
|
|
Video input
|
32 channel
|
|
HDMI output
|
1 channel, resolution: 3840×2160、2560×1440、1920×1080、 1440×900、1280×1024、1280×720、1024×768
|
|
VGA output
|
1 channel, resolution: 1920×1080、1440×900、1280×1024、 1280×720、1024×768
|
|
Audio output
|
2 channels, HDMI/AUX interface (3.5mm)
|
|
Working temperature
|
-10℃～＋55℃
|
|
Working humidity
|
10%～90%
|
|
Hard disk drive
|
Supports single hard drives up to 8TB
|
Features of NVR:

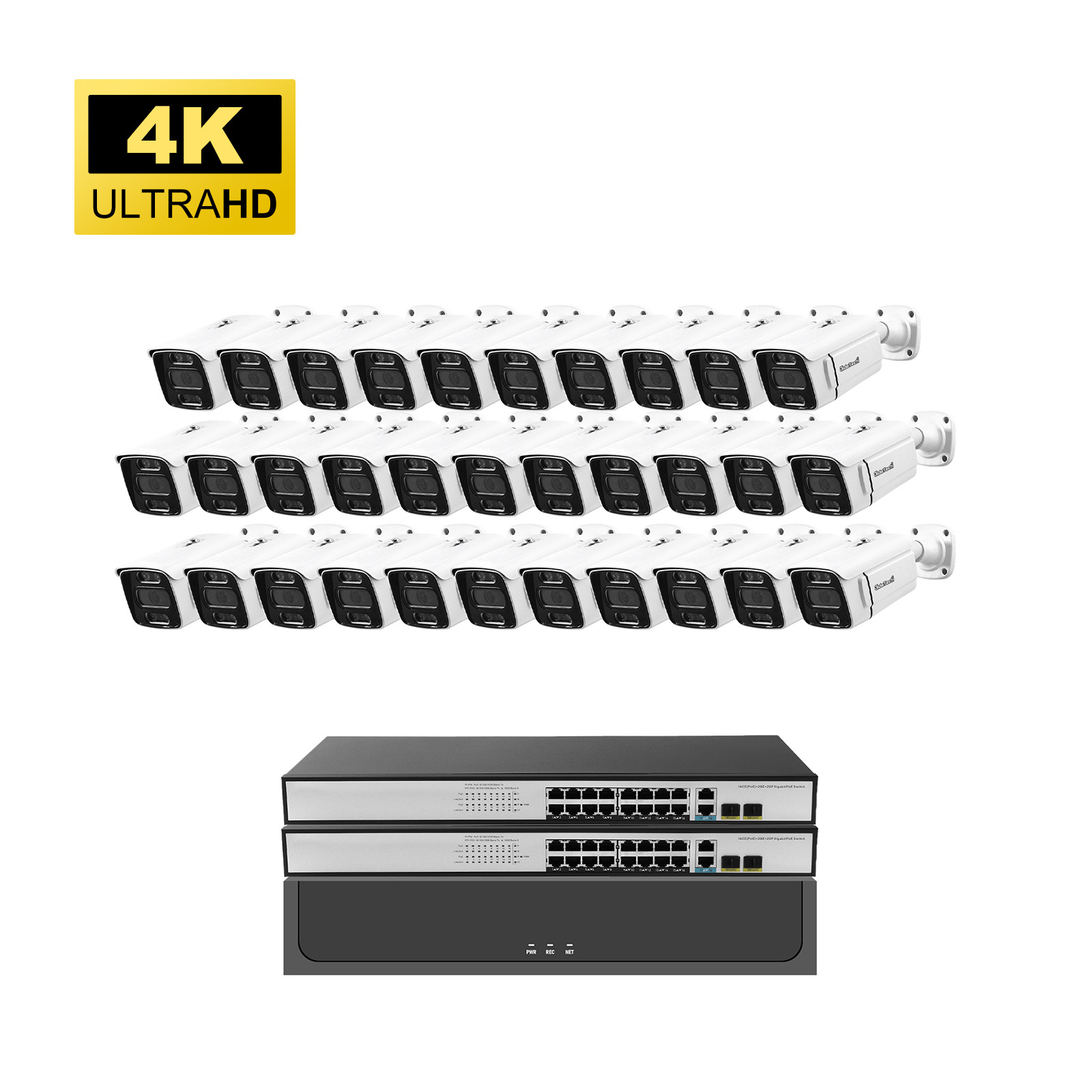

1. 32CH NVR, Max Resolution 25ch 12MP, 36channel 8MP, 5MP/4MP/3MP/1080P/720P; Support 8mp playback
Support 1* HDMI, 1*VGA, 1* Video Interface, 2*USB2.0 , 1*RJ45, Support 2 Hard Disk * 8TB,. HDMI supports 4K@30 output, VGA supports 1080P@30 output; HDMI and AUX (3.5mm) audio output, VGA up to 1080P output;
2. 2pcs 18-port 10/100/1000M+2-port 1000M optical port Ethernet switch,Ports 1-16 support PoE, IEEE 802.3af/at international standard, single port power supply maximum 30W, 2 Gigabit network ports + 2 Gigabit SFP optical port uplinks; switching capacity 36Gbps, built-in power supply, IP30, desktop/standard 1U rack mount
3. Using High Performance Sensor and Chipset: 1/2.8” Mstar Sensor and SONY335 Chip, fully apply to USA NDAA (Section 889).
Features of Cameras:
1. Camera Resolution: 8MP(3840*2160) 20fps, 5MP 2592*1944 30fps, 1920*1080 60fps, 3.6mm Fixed Lens, 4pieces LED, IR Night Vision 20m (Support Color Night Vision), Support Precise Humanoid Detection, Area Detection, Vehicle Detection.
2. H.264/H.265/H.265+ MJPEG Video Compression, Support Main Stream, Sub-Stream and D1. Compatible With Onvif 2.4.
3. Support static IP, also support dynamic IP (DHCP), Support IE, Google, Firefox, and Safari browsers, Support custom network card (Mac)address, Support P2P plug and play, and mobile phone, Supports custom users and authority management, Waterproof IP66
