Quick Details
-
Color:
-
Black
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ZL19SBD
-
Brightness:
-
250 nits (cdm2), 250 nits (cdm2)
-
Contrast Ratio:
-
1200, 1200
-
IP Rating:
-
IP65 Front / IP40 Back, IP65 Front / IP40 Back
-
Installation Type:
-
Wall Mounting / Shelf Mounting, Wall Mounting / Shelf Mounting
-
Resolution:
-
1920*360
-
View Angle（H/V）:
-
89/89/89/89(L/R/U/D), 89/89/89/89(L/R/U/D)
-
Product Name:
-
Stretched Bar LCD Display
-
Panel Sizes:
-
19 inch (Optional)
-
Operating System:
-
Android 11
-
Storage:
-
2GB RAM/ 16GB ROM or above
-
CPU:
-
RockChip RK3566
-
Installation:
-
Wall, Shelf, Ceiling Mount
-
Video format:
-
RM/RMVB/AVI/MPG/MPEG/FLV/VOB/MP4/MKV
-
Audio:
-
MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC
-
Connectivity:
-
WiFi 2.4G/802.11, Bluetooth 4/4,2
-
Certification:
-
CE, FCC, RoHS
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LCD
-
Brand Name:
-
ZULJANA
-
Color:
-
Black
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ZL19SBD
-
Brightness:
-
250 nits (cdm2), 250 nits (cdm2)
-
Contrast Ratio:
-
1200, 1200
-
IP Rating:
-
IP65 Front / IP40 Back, IP65 Front / IP40 Back
-
Installation Type:
-
Wall Mounting / Shelf Mounting, Wall Mounting / Shelf Mounting
-
Resolution:
-
1920*360
-
View Angle（H/V）:
-
89/89/89/89(L/R/U/D), 89/89/89/89(L/R/U/D)
-
Product Name:
-
Stretched Bar LCD Display
-
Panel Sizes:
-
19 inch (Optional)
-
Operating System:
-
Android 11
-
Storage:
-
2GB RAM/ 16GB ROM or above
-
CPU:
-
RockChip RK3566
-
Installation:
-
Wall, Shelf, Ceiling Mount
-
Video format:
-
RM/RMVB/AVI/MPG/MPEG/FLV/VOB/MP4/MKV
-
Audio:
-
MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC
-
Connectivity:
-
WiFi 2.4G/802.11, Bluetooth 4/4,2
-
Certification:
-
CE, FCC, RoHS

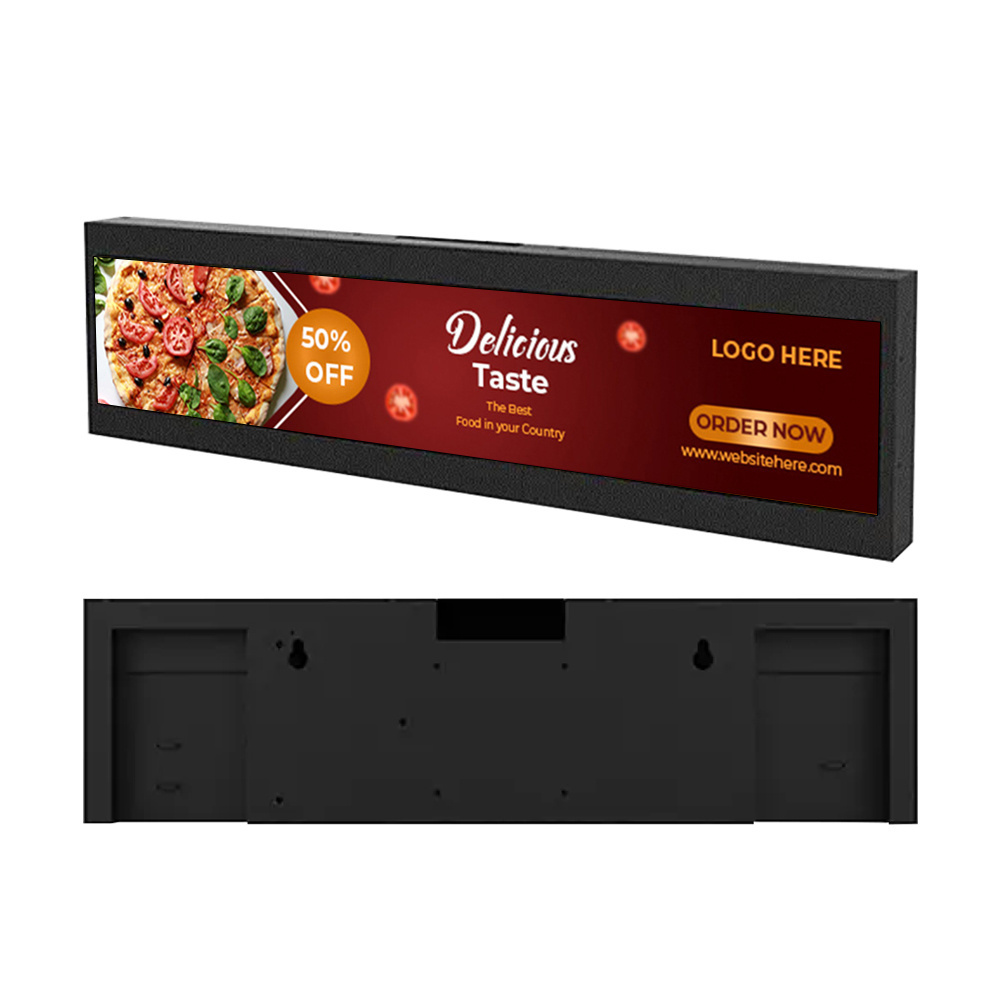

19" Ultra Wide Stretched Bar LCD Digital Signage Displays Advertising Shelf Android Screens with OEM/ODM Support
|
System |
CPU |
RockChip RK3566 |
|
RAM |
2GB (or above) |
|
|
Internal memory |
16GB (or above) |
|
|
Operation system |
Android 11 |
|
|
Display |
Panel |
19 inch |
|
Resolution |
1920 x 360 |
|
|
Display mode |
Normally Black |
|
|
Viewing angle |
89/89/89/89(L/R/U/D) |
|
|
Contrast ratio |
1200 |
|
|
Brightness / Nits |
250 cd/m2 |
|
|
Aspect Ratio |
Bar screen |
|
|
Network |
Wi-Fi |
802.11b/g/n |
|
Ethernet |
10M/100M ethernet |
|
|
Support BT |
Bluetooth 4.0 / 4.2 |
|
|
Interface |
USB |
USB host 2.0*3 |
|
SD card slot |
SD/MMC card slot |
|
|
USB OTG |
USB OTG |
|
|
RJ45 |
Ethernet interface (POE function optional IEEE802.3at, POE+, class 4, 25.5W) |
|
|
Power jack |
DC power input |
|
|
Earphone |
3.5mm earphone |
|
|
Media play |
Video format |
MPEG-1, MPEG-2, MPEG-4, H.265, H.264, VC-1, VP8, etc., support up to 4K |
|
Photo |
jpeg |
|
|
Others |
Mounting |
Wall, Shelf, Ceiling |
|
Power consumption |
24W |
|
|
Certificates |
CE, FCC, RoHS |
|
|
Language |
Multi-language |
|
|
Accessories |
Adapter |
Adapter, 12V/3A |
|
User manual |
Yes |
|
|
Product Measurement |
Unit (mm) |
495.5 * 117.4 * 30 |
|
Package (mm) |
648 * 211 * 170 |
