Quick Details
-
Voltage:
-
220V 50/60hz
-
Power:
-
250
-
Dimension(L*W*H):
-
1320*770*2210
-
Weight:
-
180 KG
-
Item:
-
50 Litre Rotary Evaporator, Matching Chiller and Vacuum Pump
-
Evaporation speed(Water):
-
8L/H
-
Evaporation speed(Ethanol):
-
15~20L/H
-
Rotate Power:
-
250W
-
Heating Power:
-
6Kw
-
Rotating Speed:
-
20~110 rpm
-
Temperature Control:
-
Digital PID control, RT~99℃
-
Max. vacuum(Pa):
-
399.9
-
Boiling flask(L):
-
50
-
Collection flash(L):
-
20
Quick Details
-
Core Components:
-
Glassware
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Touch Science
-
Voltage:
-
220V 50/60hz
-
Power:
-
250
-
Dimension(L*W*H):
-
1320*770*2210
-
Weight:
-
180 KG
-
Item:
-
50 Litre Rotary Evaporator, Matching Chiller and Vacuum Pump
-
Evaporation speed(Water):
-
8L/H
-
Evaporation speed(Ethanol):
-
15~20L/H
-
Rotate Power:
-
250W
-
Heating Power:
-
6Kw
-
Rotating Speed:
-
20~110 rpm
-
Temperature Control:
-
Digital PID control, RT~99℃
-
Max. vacuum(Pa):
-
399.9
-
Boiling flask(L):
-
50
-
Collection flash(L):
-
20

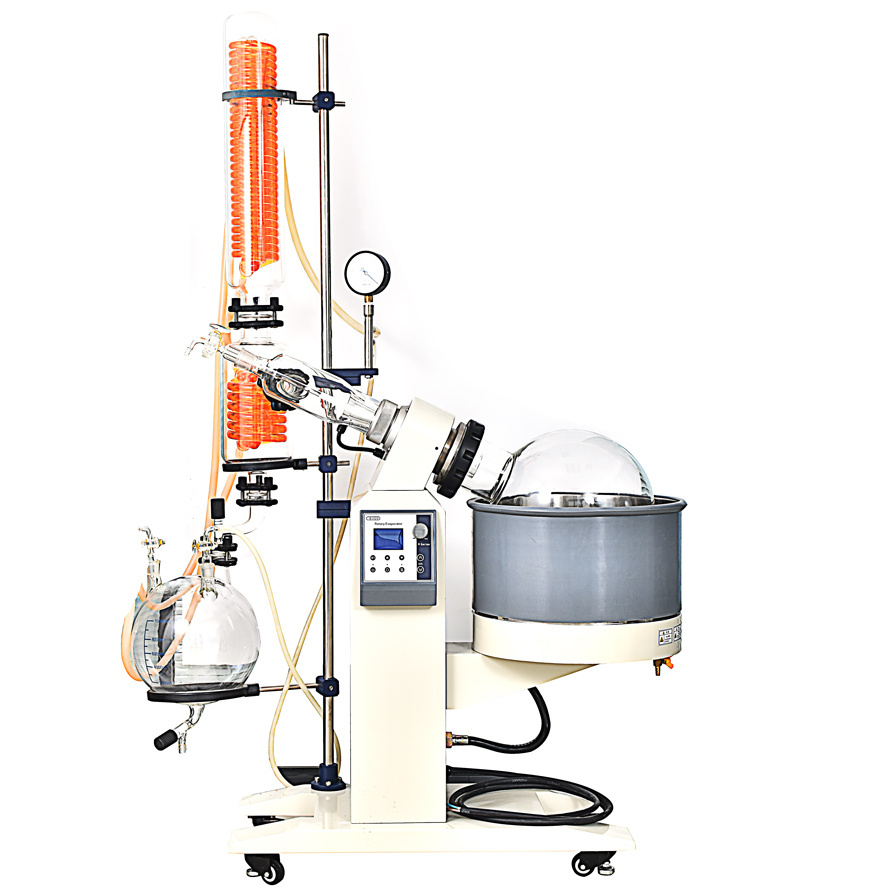

50L Chillers Rotary Evaporator Vacuum Full Kit Laboratory Scale Ethanol Solvent Recovery Machine
Parameters of 50L Rotary Evaporator, Matching Chiller and Vacuum Pump:
| Model | R1005 | R1010 | R1020 | R1050 |
| Evaporating Flask | 5L | 10L | 20L | 50L |
| Collecting Flask | 3L | 5L | 10L | 20L |
| Motor Power | 250W | |||
| Rotating Speed |
20~140rpm |
20~130rpm |
20~110rpm |
|
| Power Supply |
Single-phase 220V/50HZ |
Three-phase 220V/380V/50HZ | ||
| Bath Power | 2KW | 4.5KW | 6KW | 8KW |
| Bath Size | Φ300×170 | Φ350×220 | Φ450×260 | Φ550×320 |
| Ethanol Evaporate Rate | >=4L/Hour | >= 6.5L/Hour | >= 11L/Hour | >= 19L/Hour |
| Lifing Height | 0~150mm | 0~160mm | 0~190mm | 0~180mm |
| Condenser | Vertical Double Coil | Main+Vice Condenser Three Reflux | ||
| Dimensions | 765×400×1070 | 920×550×1700 | 1250×600×2100 | 1320×770×2340 |
| Vacuum degree | 399.9pa | |||
| Temperature Control | Intelligent Digital/RT-399℃ | |||
| Ambient Temperature | 5~35 ℃ | |||
| Lifting Mode | Electric | |||
Other Solvent Recovery Evaporator System:
SS molecular distillation & wiped film evaporator & Falling Film Evaporator
This is big and valuable equipment, if you need, then we quote the suitable type for you.Please
New Big SS Jacket Solvent Tank ( Stirrer is optional ) Recommendation:
New Updated Production of CENTRIFUGE with Soaking Function:
1. Your choice is our first option of we can make it, whatever the shipping way it is.
2. Our recommendation: In genneral.
About 150kg and below, we prefer the Express.
About 250kg and above, we like the Air , also we can charge the delivery and clearance.
3. The sea cost is cheapest, but, only your order is big enough and no hurry, it will be a excellent choice.
4. Please note:
You need pay the tariff to your customs.
If the customs clearance is delayed due to your reason , you need pay the storage fee .
SO, When you send the inquiry, you can let us know your delivery address and zip code, then we can quote you with shipping cost for better reference.
