Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UONE
-
Model Number:
-
UO750-1380
-
Voltage:
-
220V/380V
-
Motor:
-
AC Motor,Copper wire motor
-
Motor brand:
-
China customized or SIEMENS
-
Certification:
-
ce
-
Motor Frequency:
-
50/60Hz
-
Fan Material:
-
Galvanized Sheet,SS304
-
Fan Bearing:
-
China customized or CU Bearing
-
Fan weight:
-
38~95KG
-
Fan type:
-
Axial
-
Fan driven type:
-
Belt drive or motor drive directly
-
Fan noise:
-
Lower 70DB
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Electric Current Type:
-
AC
-
Mounting:
-
Wall Fan
-
After-sales Service Provided:
-
Video technical support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UONE
-
Model Number:
-
UO750-1380
-
Voltage:
-
220V/380V
-
Motor:
-
AC Motor,Copper wire motor
-
Motor brand:
-
China customized or SIEMENS
-
Certification:
-
ce
-
Motor Frequency:
-
50/60Hz
-
Fan Material:
-
Galvanized Sheet,SS304
-
Fan Bearing:
-
China customized or CU Bearing
-
Fan weight:
-
38~95KG
-
Fan type:
-
Axial
-
Fan driven type:
-
Belt drive or motor drive directly
-
Fan noise:
-
Lower 70DB

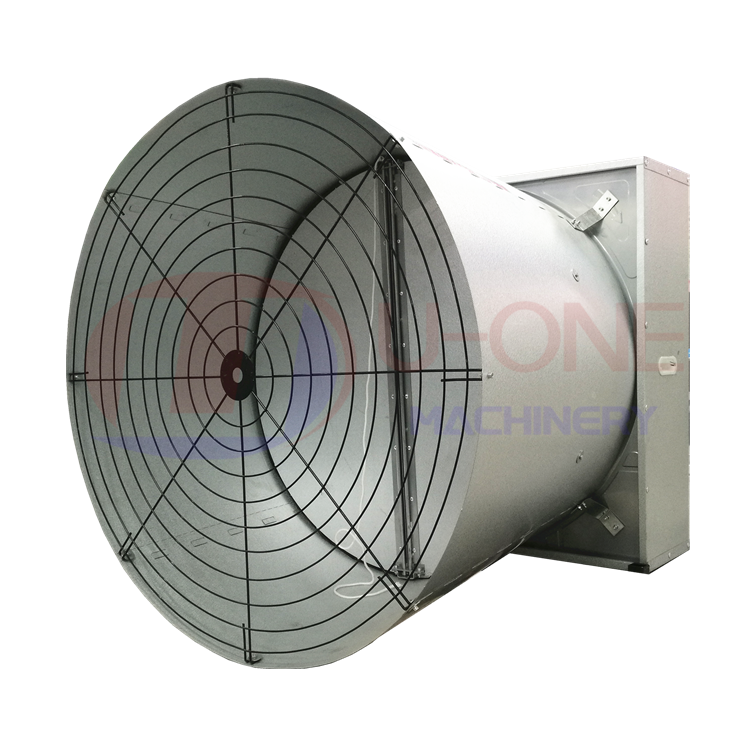

Double-door cone fan(Butterfly cone fan)
Fan blades are adjusted by intelligent dynamic-balance tester,ensure the fan smooth running,lower vibration,less noise,increase stability.
The first adopt Type b belt which 3 times longer service life instead of type A.
Complete new CNC production line improved fan quality up to top grade,aesthetic appearance.
Technical parameter:
|
Model NO.
|
Blades Diameter
(mm)
|
Blades speed (RPM)
|
Blades speed (RPM)
|
Air volume
(CFM/CMH)
|
Noise(DB)
|
Power
(W)
|
Voltage (V)
|
Size(mm)
|
|
UOB-1000
|
910(36'')
|
438
|
1400
|
15300/28000
|
≤70
|
550
|
380/220
|
1000*1000*1180
|
|
UOB-1100
|
1000(40'')
|
600
|
1400
|
19400/36000
|
≤70
|
750
|
380/220
|
1100*1100*1150
|
|
UOB-1380
|
1270(50'')
|
439
|
1400
|
25600/51020
|
≤80
|
1100
|
380/220
|
1380*1380*1300
|
Horn cone fan(Shutter cone fan)
Reasonable cone design,improve exhaust power,Large air volume,strong draft capacity,stable performance.Adopt aluminum alloy shutters which light and attractive.
Fan blades is made of krupp stainless steel by punch forming.No dust,attractive and durable.Special blades shape design ensure large air volume,no deformation,no broken,keep air volume same all the way.Thickness 1.2mm,surface finish BA grade
Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduce the weight of blade impeller complete,high corrosion resistance.Special three reinforced ribs pulley design.Blast-standing treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability,never broken.
Fan bearing adopts imported double-row bearing with special waterproof design,water can't enter.High strength,lower noise,maintenance free and long service life.
Fan blades are adjusted by intelligent dynamic-balance tester,ensure the fan smooth running,lower vibration,less noise,increase
stability.
stability.
Complete new CNC production line improved fan quality up to top grade,aesthetic appearance.
Technical parameter:
|
Model NO.
|
Blades Diameter
(mm)
|
Blades speed (RPM)
|
Blades speed (RPM)
|
Air volume
(CMH)
|
Noise(DB)
|
Power
(W)
|
Voltage (V)
|
Size(mm)
|
|
UOB-750
|
610(24'')
|
960
|
960
|
11000
|
≤70
|
370
|
380/220
|
750*750*1080
|
|
UOB-900
|
750(30'')
|
630
|
1400
|
22000
|
≤65
|
370
|
380/220
|
900*900*1100
|
|
UOB-1000
|
910(36'')
|
610
|
1400
|
25000
|
≤65
|
550
|
380/220
|
1000*1000*1180
|
|
UOB-1100
|
1000(40'')
|
600
|
1400
|
32500
|
≤64
|
750
|
380/220
|
1100*1100*1280
|
|
UOB-1220
|
1100(43'')
|
460
|
1400
|
38000
|
≤64
|
750
|
380/220
|
1220*1220*1280
|
|
UOB-1380
|
1250(50'')
|
439
|
1400
|
44000
|
≤64
|
1100
|
380/220
|
1380*1380*1480
|
