Quick Details
-
Product name:
-
Cylindrical Battery Tester
-
Function:
-
Charging test discharging test
-
Offer:
-
One Stop Service
-
Battery type:
-
cylinder cell
-
PC Communication:
-
USB Port and SD Card storage
-
Voltage Range:
-
0-40V Programmable
-
Current Range:
-
0.05~10A
-
Power:
-
400W
-
Channel Control Mode:
-
Independent Control
Quick Details
-
Brand Name:
-
TOB
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
TOB-CT-4008-40V10A-NFA, 40V/10A
-
Product name:
-
Cylindrical Battery Tester
-
Function:
-
Charging test discharging test
-
Offer:
-
One Stop Service
-
Battery type:
-
cylinder cell
-
PC Communication:
-
USB Port and SD Card storage
-
Voltage Range:
-
0-40V Programmable
-
Current Range:
-
0.05~10A
-
Power:
-
400W
-
Channel Control Mode:
-
Independent Control

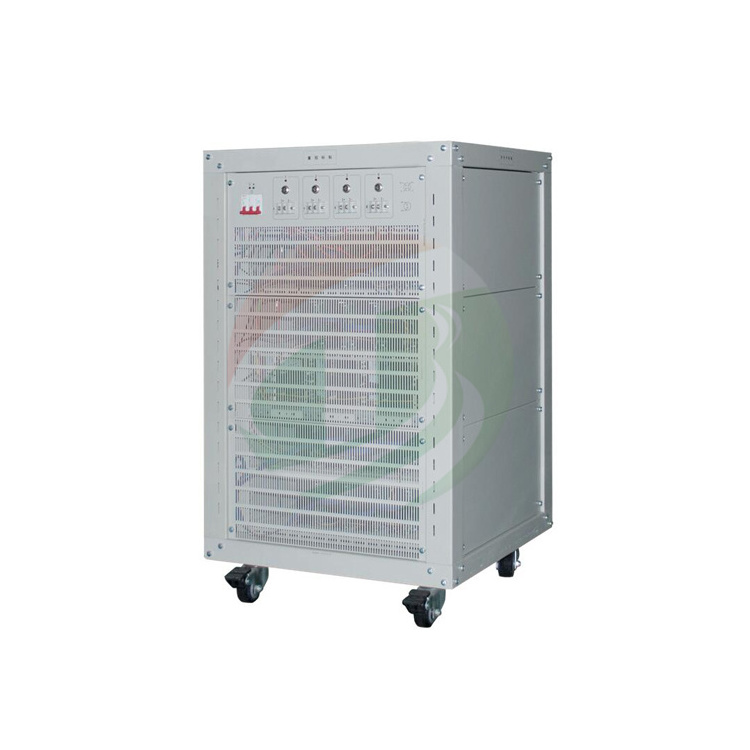

40V10A Lithium Battery Capacity Tester For 18650 Battery Charge And Dischager
This model battery tester depond on the max discharge and charge current and voltage,the max charge and discharge current is 10A, the max voltage is 40V.
|
Model |
TOB-CT-4008-40V10A-NFA |
|
|
Input Power |
AC 220V ±10% / 50Hz |
|
|
Resolution |
AD:16bit;DA:16bit |
|
|
Input Resistance |
≥1MΩ |
|
|
Input Power |
4253W |
|
|
Channel Features |
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure |
|
|
Channel Control Mode |
Independent Control |
|
|
Voltage |
Per Channel Voltage Range |
0.2V-40V |
|
Min discharge Voltage |
0V |
|
|
Accuracy |
± 0.1% of FS |
|
|
Stability |
± 0.1% of FS |
|
|
Current |
Per Channel Current Range |
0.05A-10A |
|
Cut off Current |
0.02A |
|
|
Accuracy |
± 0.1% of FS |
|
|
Stability |
± 0.1% of FS |
|
|
Power |
Per Channel Output Power |
400W |
|
Stability |
± 0.2% of FS |
|
|
Time |
Current Response Time |
20ms (0-Full Range) |
|
Step Time Range |
≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms) |
|
|
Data Recording |
Record Condition |
Minimum Time Interval: 100ms |
|
Minimum Voltage Interval: 80mV |
||
|
Minimum Current Interval : 20mA |
||
|
Record Frequency |
10Hz |
|
|
Charge |
Charge Mode |
Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge,CPC |
|
End Conditon |
Voltage,Current,Relative Time,Capacity,-ΔV |
|
|
Discharge |
Discharge Mode |
CCD,CPD,CRD |
|
End Condition |
Voltage,Current,Relative Time,Capacity,-ΔV |
|
|
Pulse |
charge |
CCC |
|
Discharge |
CCD |
|
|
Min Pulse Width |
500ms |
|
|
Automated Switch |
Automated switch from charge to discharge for each pulse |
|
|
End Condition |
Voltage, Test Time |
|
|
DCIR |
Support DCIR testing |
|
|
Cycle |
Loop Measure Range |
1~65535 times |
|
Max Steps Per Loop |
254 |
|
|
Nested Loop |
Nested loop Function,Max Support 3 Layers |
|
|
Protection |
Software Protection |
l Power-down Data Protection |
|
l Off-line Testing Function |
||
|
l Setting Protection Condition,Setting Parameter: Low Voltage limit,Upper Voltage limit,Low Current limit, Upper Current limit,Delay Time |
||
|
Hardware Protection |
Additional Anti-reverse Protection Model |
|
|
Voltage and Current Testing Sample |
4-wire connecting |
|
|
Noise |
<85dB |
|
|
Database |
MySQL Database |
|
|
Host computer communication mode |
TCP/IP Protocol |
|
|
Data Output |
EXCEL 2003, 2010,TXT |
|
|
Communication Interface |
Ethernet Port |
|
|
Per Unit Main Channels No. |
8 |
|
