Quick Details
-
Table Travel (Y) (mm):
-
600
-
Dimension(L*W*H):
-
3200x2550x2650mm
-
Weight (T):
-
7.3 T
-
Positioning Accuracy (mm):
-
0.0075mm
-
Repeatability (X/Y/Z) (mm):
-
0.005mm, 0.003
-
Range of Spindle Speed(r.p.m):
-
100 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
11KW
-
Max. Table Load(kg):
-
1000 kg
-
Feed Speed(mm/min):
-
1 - 24 mm/min
-
Rapid Feed Speed(m/min):
-
1-10000RPM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHENGHUAN
-
Voltage:
-
380V/50Hz
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
2 Year
-
Product name:
-

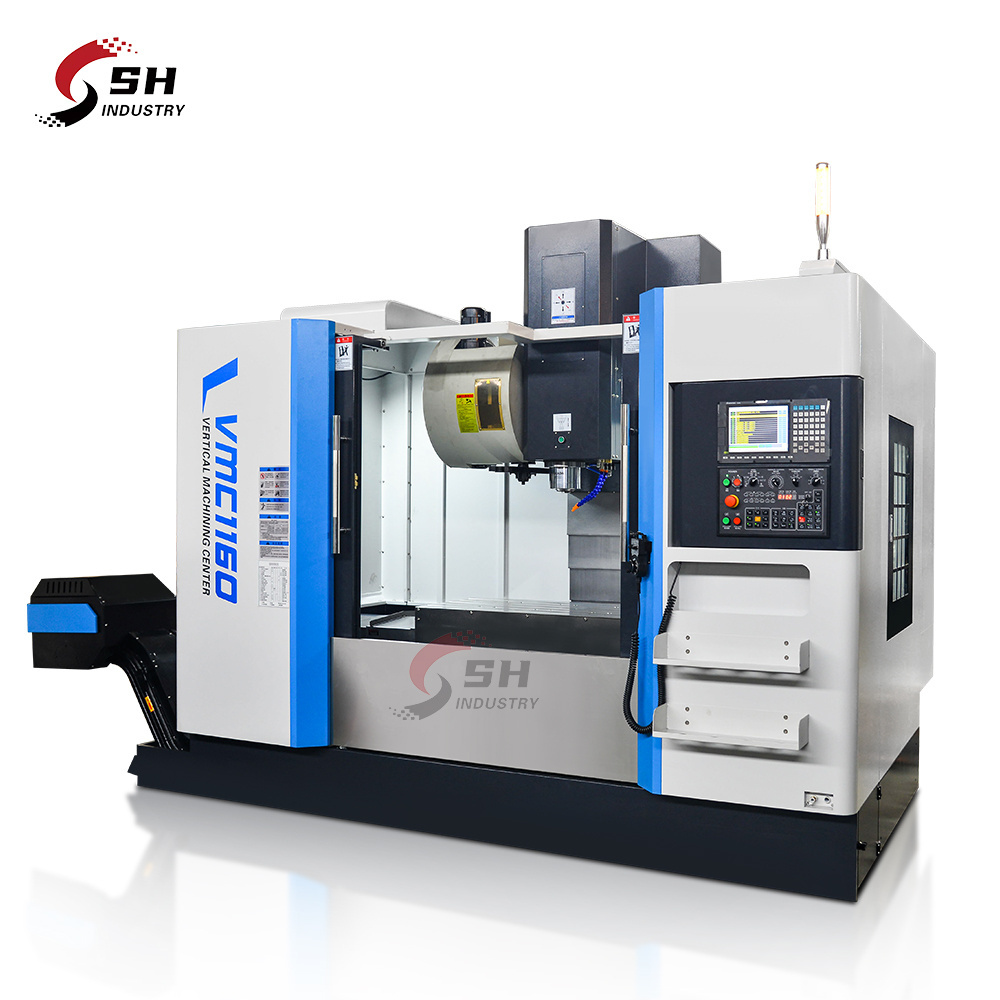

Vertical Cnc Machining Center VMC1160
-
Machine Type:
-
CNC Vertical Machining Center VMC1160
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Spindle Speed:
-
8000/10000/12000rpm
-
X/Y/Z Axis Travel:
-
1100*600*600
-
Worktable size:
-
1200x600mm
-
Tool Changer:
-
24 Tools Changer Robot
-
Color:
-
Custom-made
-
Certification:
-
ISO CE
Quick Details
-
Table Size (mm):
-
1200x600
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1100
-
Table Travel (Y) (mm):
-
600
-
Dimension(L*W*H):
-
3200x2550x2650mm
-
Weight (T):
-
7.3 T
-
Positioning Accuracy (mm):
-
0.0075mm
-
Repeatability (X/Y/Z) (mm):
-
0.005mm, 0.003
-
Range of Spindle Speed(r.p.m):
-
100 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
11KW
-
Max. Table Load(kg):
-
1000 kg
-
Feed Speed(mm/min):
-
1 - 24 mm/min
-
Rapid Feed Speed(m/min):
-
1-10000RPM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHENGHUAN
-
Voltage:
-
380V/50Hz
-
Marketing Type:
-
New Product 2024
-
Warranty of core components:
-
2 Year
-
Product name:
-
Vertical Cnc Machining Center VMC1160
-
Machine Type:
-
CNC Vertical Machining Center VMC1160
-
Control system:
-
SIEMENS GSK FANUC (optional)
-
Spindle Speed:
-
8000/10000/12000rpm
-
X/Y/Z Axis Travel:
-
1100*600*600
-
Worktable size:
-
1200x600mm
-
Tool Changer:
-
24 Tools Changer Robot
-
Color:
-
Custom-made
-
Certification:
-
ISO CE
Main configuration：
1. The CNC Machine Tool Body Has Undergone a Complete Casting Process To Ensure The Quality Of The Product
2. Taiwan Spindle (Speed, Brand, Can Be Matched According To Customer Requirements)
3. Taiwan Ball Screw And Locking Nut
4. Taiwan Pressure Cylinder
6.Japanese Nsk Bearing Germany R+W Coupling
7. Automatic Lubrication System
8.Chip Conveyor At Optional (According To Customer Requirements)
Optional Configuration：
System: Syntec,Siemens,Fanuc
1.24 Arm Tool Magazine
2.The 4th Axis
3.Spindle Oil Cooling
4.Chip Conveyor
5.Oil-Water Separator
6.12000rpm Spindle Unit
Application:
This Vmc Is Suitable For Mechanical Processing And Mold Making .And It Can Adapt To The Processing
Requirement From Rough Machining To Finish Machining .It Can Also Finish Many Working Procedures Like Milling ,Drilling ,Tapping,Boring ,Etc.
Technical Parameter：
|
Working table
|
Table size
|
1200×600mm
|
|
|
T-slot
|
5-18-100mm
|
|
|
Max loading capacity of table
|
1000kg
|
|
Spindle
|
Spindle taper
|
BT40
|
|
|
Spindle speed
|
8000rpm
|
|
|
Spindle power
|
11kw
|
|
Travel
|
X,Y,Z axis travel
|
1100×600×600mm
|
|
|
Distance from spindle nose to table
|
120-720mm
|
|
|
Distance from spindle center to vertical guide way surface
|
600mm
|
|
Feed
|
Rapid movement speed X,Y,Z
|
24/24/24m/min
|
|
|
Feed rate of cutting X,Y,Z
|
1~10000mm/min
|
|
Three axis
|
X Y Z axis motor torque
|
23/23/23NM
|
|
|
X Y Z axis linear guide rail width
|
45mm
|
|
|
X Y Z lead screw size
|
4012
|
|
|
X Y Z sliding block no
|
2006/4/6
|
|
Tools capacity
|
Tools capacity
|
24T
|
|
|
Max tool weight
|
8kg
|
|
|
Max length
|
φ78/300mm
|
|
|
Tool magazine type
|
Arm type
|
|
Precision
|
Positioning accuracy X/Y/Z
|
0.0075mm
|
|
|
Repeated positioning accuracyX/Y/Z
|
0.005mm
|
|
Machine tool
|
Machine size
|
3200*2550*2650mm
|
|
|
Casting material model
|
HT300
|
|
|
Machine hardness
|
45-50rkc
|
|
|
Machine weight
|
7300kg
|
