Quick Details
-
Voltage:
-
380V
-
Power:
-
12.4KW
-
Weight:
-
480 KG
-
Dimension(L*W*H):
-
2120*1360*1590mm
-
Year:
-
2020
-
Application:
-
Vegetable
-
Function:
-
Cooling+Drying+Dehumidity
-
Usage:
-
Food Processing Industries
-
Material:
-
304 Stainless Steel
-
Capacity:
-
1000kg
-
MOQ:
-
1 Set
-
Package:
-
Plywood Package
-
Heating source:
-
Air Heat Pump
-
Brand:
-
KINKAI
-
Certification:
-
CCC,CE,ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
KINKAI
-
Type:
-
JK12RD
-
Voltage:
-
380V
-
Power:
-
12.4KW
-
Weight:
-
480 KG
-
Dimension(L*W*H):
-
2120*1360*1590mm
-
Year:
-
2020
-
Application:
-
Vegetable
-
Function:
-
Cooling+Drying+Dehumidity
-
Usage:
-
Food Processing Industries
-
Material:
-
304 Stainless Steel
-
Capacity:
-
1000kg
-
MOQ:
-
1 Set
-
Package:
-
Plywood Package
-
Heating source:
-
Air Heat Pump
-
Brand:
-
KINKAI
-
Certification:
-
CCC,CE,ISO

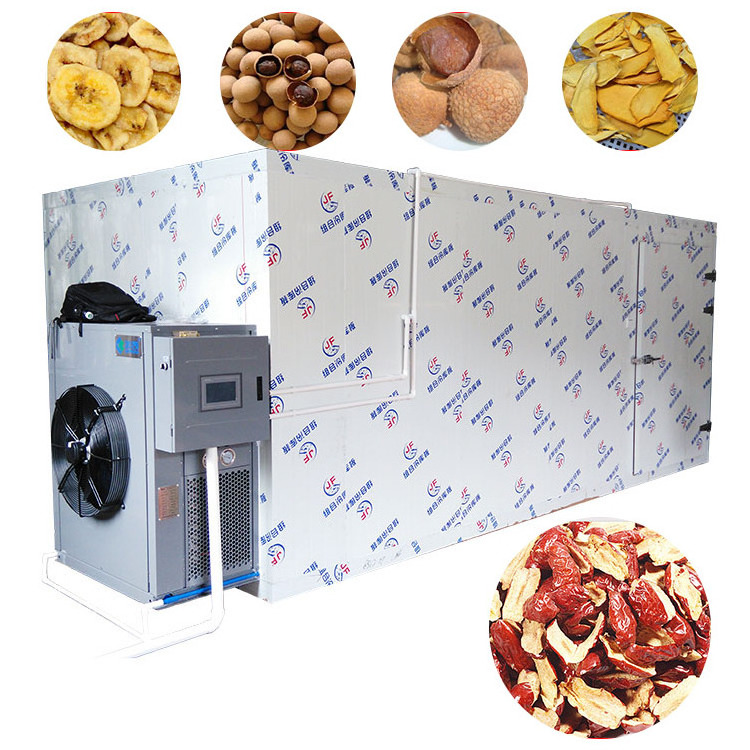

What Is KINKAI Heat Pump Tray Dryer Type Fruit Dehydrator?
KINKAI Heat pump tray dryer type fruit dehydrator
takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried.
This kind of dryer is mainly composed of heat pump dryer and drying chamber.
This dryer will be controlled by touch screen controller, and the temperature can be adjusted.
It has low electric consumption.
How Does It Work?
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final fruits will be dried by the hot air circulating in drying chamber
What's main accessories of dryer?
What is the Technical Parameters?
Model: JK03RD, JK06RD, JK12RD
Power Supply: 220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp: 75C
Working Temp: -10~45C
Functions: Heating / Cooling / Dehumidify
Dryer Type: (Heat Pump)Batch System
|
MODEL |
UNIT |
JK03RD |
JK06RD |
JK12RD |
|
POWER SUPPLY |
V/PH/HZ |
380V/3PH,50/60HZ |
380V/3PH,50/60HZ |
380V/3PH,50/60HZ |
|
220V/1PH,50/60HZ |
||||
|
RATED CURRENT |
A |
6.4 A(380V), 14.5 A (220V) |
12.4 |
24.8 |
|
HEATING CAPACITY |
KW |
10.5 |
21.0 |
42.0 |
|
COOLING CAPACITY |
KW |
7.8 |
18.0 |
32.0 |
|
DEHUMIDIFY |
L/H |
12.0 |
25.0 |
50.0 |
|
TEMPERATURE |
C |
10-75 |
10-75 |
10-75 |
|
NOISE |
dB(A) |
75 |
75 |
75 |
|
ELECTRIC HEATER |
KW |
3.0 |
6.0 |
12.0 |
|
DRYER DIMENSION |
MM |
1675X860X1280 |
1760X1060X1280 |
2120X1360X1590 |
|
WEIGHT |
KG |
180 |
285 |
480 |
How can I choice the model?
|
Model |
Dryer Qty |
Product capacity |
Chamber Size |
Trolleys qty |
|
JK03RD |
Single |
300kg/ batch |
3160*2070*2200 mm |
6 |
|
Double |
800 kg/ batch |
7 51 0 *2070*2200 mm |
16 |
|
|
JK06RD |
Single |
600kg/ batch |
5700* 2 17 0x2200mm |
12 |
|
Double |
1 2 00kg/ bacth |
10 53 0 * 2 17 0 * 2200mm |
24 |
|
|
JK12RD |
Single |
1000kg/ batch |
5810* 3 23 0 * 2200mm |
20 |
|
Double |
30 00kg/ batch |
10 75 0 * 3 23 0 * 2200mm |
40 |
Warm prompt: We can make any drying chamber sizes as your required.
How widely used are dryers?
How is the customer feedback?
Our products sold around the world, has won very good feedback from European and American customer, high customer satisfaction.
Meanwhile, The service life of the machine can be reach 10~15years.
We provide one year warranty, the all of part can be free replaced during the warranty period.
