Quick Details
-
Brand Name:
-
Emark
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
1050*600*1400
-
Power (kW):
-
3
-
Weight (T):
-
0
-
Applicable Industries:
-
All
-
Core Components:
-
/
-
Knife Size:
-
180*12
-
Knife Quantity:
-
24
-
Input Torque:
-
1628Nm
-
Revolving Speed:
-
16
Quick Details
-
Max.Production Capacity (kg/h):
-
10000
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
100 - 9000 kg/h
-
Brand Name:
-
Emark
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
1050*600*1400
-
Power (kW):
-
3
-
Weight (T):
-
0
-
Applicable Industries:
-
All
-
Core Components:
-
/
-
Knife Size:
-
180*12
-
Knife Quantity:
-
24
-
Input Torque:
-
1628Nm
-
Revolving Speed:
-
16

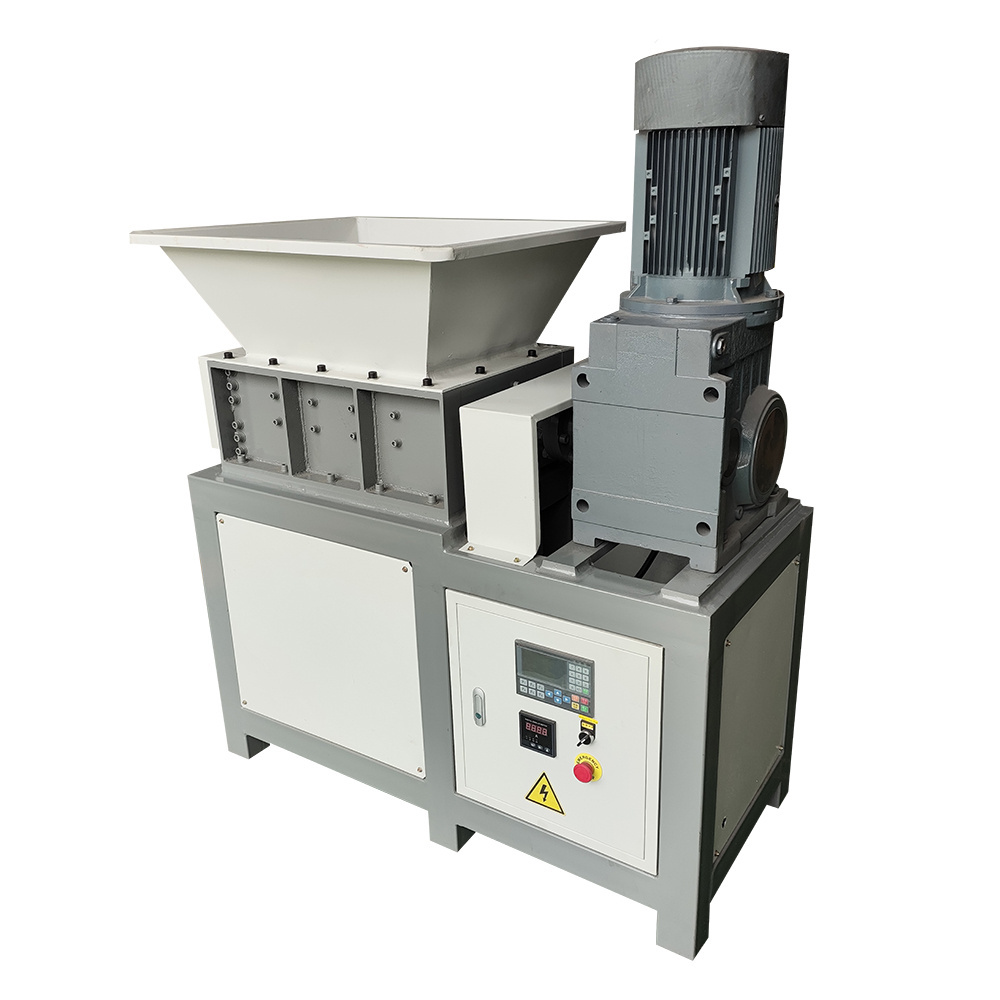

Industrial Portable Thuis Polystyrene Pellets Bottle Plastic Granulator Shredder
| Type | Knife Size(mm) |
Power
(kw) |
Knife Quantity(pcs) |
Input Torque
(Nm) |
Revolving Speed(r/min) | Overall Dimension(mm) |
| EB300*200 | Φ180*12 | 3KW | 24 | 1628Nm | 16 | 1050*600*1400 |
| EB400*200 | Φ180*15 | 4KW | 26 | 2176Nm | 17 | 1160*600*1450 |
| EB500*250 | Φ200*20 | 7.5KW | 24 | 4574Nm | 17 | 1350*700*1600 |
| DB500*250 | Φ200*20 | 7.5KW | 24 | 9148Nm | 15 | 1840*650*1450 |
Shredding machine product advantages:
1. The blade holder and blade on the rotor can be disassembled for easy cleaning, maintenance and maintenance;
2. Each moving knife has 4 cutting edges, which can be rotated 90° after wear to continue to use;
3. The main shaft is driven by the gear reduction box, running smoothly, low noise, large torque;
4. Adopt PLC program control system, can automatically reverse, make the machine run stably;
5. The box body is welded and tempered after welding to eliminate the welding stress;
6. The installation position of moving knife is precisely machined by machining center to ensure that the clearance between each moving knife and fixed knife is the same;
7. The moving tool holder is embedded in the tool shaft with high strength screws. On, can prevent welding type after long-term vibration caused by the phenomenon of knife drop.
8. Convenient transportation after tearing, can reduce transportation cost, increase transportation efficiency, convenient
seco
Nanjing Emark Heavy Industry Technology Co., Ltd. is a heavy equipment manufacturing enterprise, mainly producing industrial shredders, garbage crushers, and related auxiliary equipment. The core technical personnel of the company have more than ten years of experience in crushing design and production, and currently have rich experience in system solutions in the field of garbage crushing. They can provide complete solutions for large waste in urban sanitation and OEM services for solid waste treatment enterprises.
A:During the warranty period, everything is free except for wearing parts and man-made damage. First, you need to provide the bad parts; then we will be free to repair or change for you.
Q:What about your machine price?
A:Anytime, high quality is the primary standard of our factory, on the top quality basis, sure you will get reasonable and satisfied price!
Q:Can you send me the video to show how the machine work?
A:Certainly, we have made video of every machine and uploaded them by our chain address.If you need, we will send you operation video.
Q:How long it takes for lead time?
A: For sample, 1-5 days after payment; for bulk order, 5-10 days after deposit.
Q: Is customized design acceptable ?
A:Yes, of course, we have professional engineers help design the most proper one for you.
Q: Does your company accept custom-made?
A:Yes, we accept it, OEM and ODM supported.If you want to be our distributor or agent, let's talk more details.
