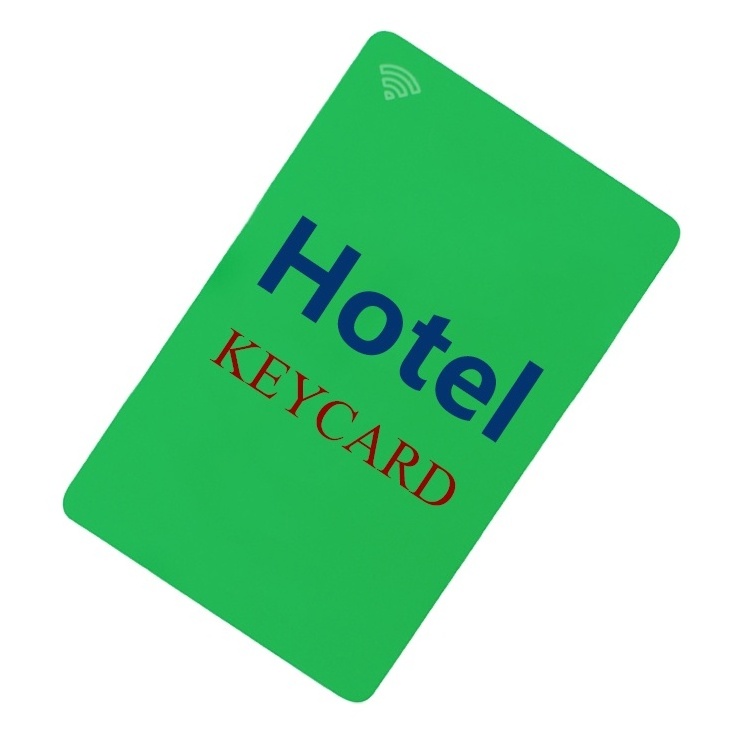

CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock
CR80 Plastic PVC Contactless MIFARE Ultralight EV1  13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock

CR80 Plastic PVC Contactless MIFARE Ultralight EV1 13.56mhz Rfid Card HF Smart Card Rfid Key Card Hotel Door Lock

FOB Reference Price: Get Latest Price
≥1000 Pieces
US $0.12
≥5000 Pieces
US $0.09
≥10000 Pieces
US $0.07
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
RZX
Model Number:
RZX-Hotelcard
Material:
Gread A PVC material
Surface:
Glossy Matte Frosted
Color:
CMYK Color/Pantone color etc
Size:
85.5*54mm or customized size
Craft:
Signature Panel, UV spot, Gold foil Etc
Thickness:
0.9mm thickness
Application:
Access Control/door lock/hotel card
Reading distance:
1-5cm (depends)
Chip:
13.56MHZ
Package:
200pcs/box

Quick Details

Special Features:
Waterproof / Weatherproof, 13.56MHz hotel card, hotel smart card 13.56MHz, door lock rfid card
Communication Interface:
RFID, NFC
Frequency:
13.56Mhz
Place of Origin:
Guangdong, China
Brand Name:
RZX
Model Number:
RZX-Hotelcard
Material:
Gread A PVC material
Surface:
Glossy Matte Frosted
Color:
CMYK Color/Pantone color etc
Size:
85.5*54mm or customized size
Craft:
Signature Panel, UV spot, Gold foil Etc
Thickness:
0.9mm thickness
Application:
Access Control/door lock/hotel card
Reading distance:
1-5cm (depends)
Chip:
13.56MHZ
Package:
200pcs/box
Specification
Item
13.56MHz contactless rfid card FM11RF08 smart Hotel card printing famous hotel door lock
Chip
MIFARE Ultralight® EV1
( MIFARE® and MIFARE Ultralight® is the registered trademark of NXP B.V,are used under license)
Frequency
13.56mhz
Material
High quality PVC
Card Surface
Glossy/Matte/Frosted finish
Physical Dimension
85.5*54*0.9mm or OEM
Card Weight
6.5g+/-0.5g
Available Printing Method
Offset/SilKscreen/Digital printing/UV Printing
Printing
Can be printed in 1 to full color on both sides, and also pantone colors or silk screen colors
Technical support
Chip Encoding
Woking times
>100000 times
Sample Availability
Free samples are available as request
Packaging
Standard size card packing: 200pcs/inner box, 5000pcs/ctn. G.W.: 30KG/CTN
Available Crafts:
Hot stamp (gold/silver/red), Laser silver/gold, Laser Engraving, Inkjet printing, Scratch off-panel, Barcode/QR
code, Thermal printing, Hologram, Embossing, Adhesive sheet, UV ink, Hologram, Hole punch, etc.

Printing equipment:
Heidelberg offset printing machine with UV passageway HP Indigo Digital printing machine -for a personalized design, especially for the Photo ID Card.

Printing effect:
RZX understands Printing the s key issue to meet client’s satisfaction. Therefore we print cards
strictly according to client’s layout. Keeping the consistency between printing effect and approved layout is always the priority for us.

QC:
Every single card will be carefully checked by machine or manual work before dispatched.

Application Area:
widely used for promoting, social meida, identification, access control, marketing, loyalty, hospitality & Hotel locking etc.

RFID card RZX monthly produces over 20 million cards and distributes them to more than 50 countries worldwide. RFID card normal for Hotel locking uses RFID system or magnetic stripe system.

For RFID locking system, high frequency (13.56MHz) under protocol ISO 14443A is the most popular choice for the majority of hotels.

Frequently used magnetic stripes for hotel locking system:
1_ Low-coercivity(loco) at 300 Oe
2_ High-coercivity (Hico) at 2750 Oe
We are providing magnetic stripe cards with different shapes and coercivities (300oe, 600oe, 2750oe, 4000oe) to our customers.

To make sure cards can be delivered without any damage, RZX uses top standard packaging. All Paper boxes and cartons are made of high-quality material.

For standard size CR80: 3-3/8" x 2-1/8" (thickness: 34mil)//85.5*54mm(Thickness:0.86mm)):
Inner box:200pcs/inner box;
Outer Box: 225*196*168mm, 1000pcs/carton, 7kg
Product Description
Related products
RFID blank card
Standard/customized size with LF/HF/UHF chip blank/printed cards:
You can share us you wanted chip or artwork to quote the price:

packaging
200pcs/inner box and then in carton:
1K:22.5*19.6*16.8cm
2K:48*22.5*14cm
3K:48*22.5*18.5cm
4K:48*22.5*24.5cm
5K:48*22.5*30cm

RFID library tag
50*50mm ISO/IEC 15693 FM13HF01 RFID HF blank Library Book Tag/Sticker/Label with Adhesive Back
Chip: FM13HF01
Size :Antenna size: 45x45mm/Wet Inlay SIZE: 47X47mm/Tag Size: 50x50mm
Reading Range:5-8cm depend on reader and tag size
Substrate:PET
Antenna Process:Aluminum ETCH(AL10um)
Protocol:ISO15693
Operating Frequency:13.56Mhz

Packing
Why Choose Us
Why us?
8 reasons why choose RZX: 1) Spot inventory, same day delivery Source factory, large stock spot, fast delivery. 2) New materials High quality new ABS material, no fade, more environmental protection 3) Beautiful and durable Small and exquisite, waterproof, moisture-proof, shockproof, anti-corrosion, pure copper high-precision large coil, super induction 4) Environmental protection ink Safe, non-toxic, harmless, non-flammable, non-explosive, high color saturation 5) Certificates are complete Domestic and foreign standard certificates are complete. 6) Strong strength Mechanized automatic production, dozens of automatic equipment. 7) Professional services 16 years of RFID experience, to provide professional business card printing solutions, full follow-up, to solve all your needs.
8) Quality assurance From raw materials to finished products, layers of quality inspection.

Lead time
1,000 – 50,000pcs………around 5-8 days
60,000 – 100,000pcs …..around 8-10 days
150,000 – 500,000pcs….around 10-15 days

How to get free Pvc card sample from RZX
1) Free printable blank plain card is available for 5pcs;
2) Free blank smart cards with common chips are available for 3pcs. If special chips, need to discuss with sales;
3) The company brochure is free;
4) New clients can have one sample order for free;
5) 5-20pcs sample can be customized for free if the order for mess production confirmed reached 50,000pcs;
6) Loyalty clients who cooperated with us for over 1 year, can share free sample making if mess production order reaches 5000pcs.
FAQ
1. How long will it take to get your price?Within 24 hours, call and email will get faster quotation when it was urgent.

2. How can I get a sample to check your quality?
The free sample will be offered all the time. But if you want customized samples,it would be charged.

3. What kind of files do you accept for printing?
All vector file will be accepted. Such as AI, PDF, CDR, high-resolution JPG.

4. How long can I expect to get the sample?
3-5 working days.

5.What about the lead time for mass production?
4-7 working days in regular,1-2 weeks for the busy season.

6. What are your terms of delivery?
EXW, FOB, CIF and the bases of the other on your requestion.

7.Terms of payment?
T/T, L/C, Escrow, PayPal or others according to your requirement.
