Quick Details
-
Weight:
-
≤110kg
-
Brand Name:
-
ziHYD/THOTH
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
CE
-
Output torque:
-
1200-4000N.M
-
Transmission form:
-
Planetary
-
Displacement:
-
900-24047 ml/r
-
Rated torque:
-
1000-38000n.m
-
Substitute type:
-
bonfiglioli, Comer, Brvini, Intermot etc
-
Rated pressure:
-
10
-
Max.pressure:
-
16
-
Model:
-
ZCM
-
Brand:
-
ZIHYD/THOTH
-
Place of origin:
-
ZhejiangChina(Mainland)
Quick Details
-
Warranty:
-
1.5 years
-
Pressure:
-
hydraulic pressure
-
Structure:
-
hydraulic system
-
Weight:
-
≤110kg
-
Brand Name:
-
ziHYD/THOTH
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
CE
-
Output torque:
-
1200-4000N.M
-
Transmission form:
-
Planetary
-
Displacement:
-
900-24047 ml/r
-
Rated torque:
-
1000-38000n.m
-
Substitute type:
-
bonfiglioli, Comer, Brvini, Intermot etc
-
Rated pressure:
-
10
-
Max.pressure:
-
16
-
Model:
-
ZCM
-
Brand:
-
ZIHYD/THOTH
-
Place of origin:
-
ZhejiangChina(Mainland)

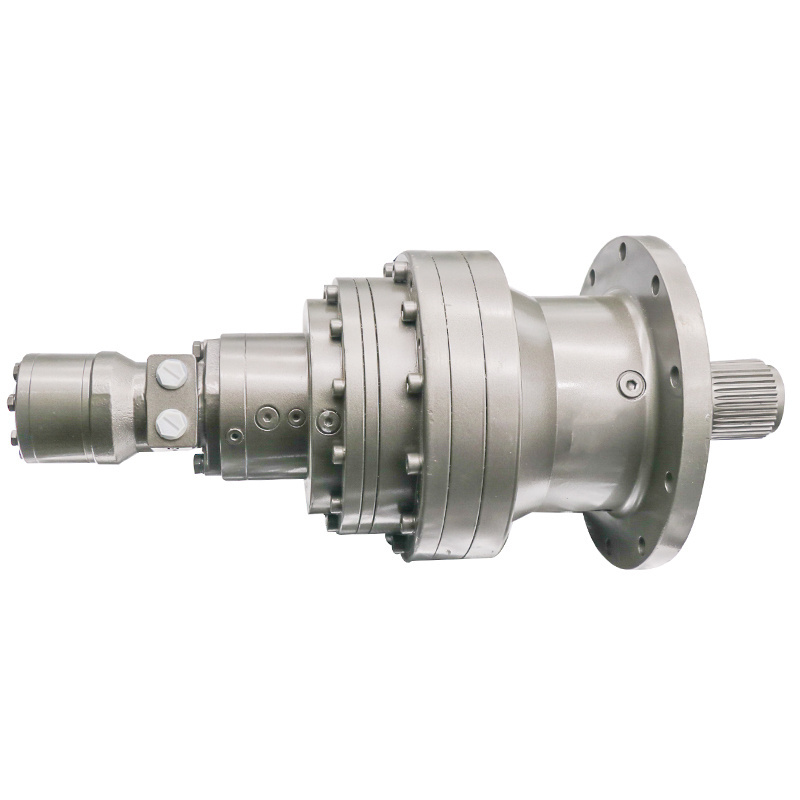

1. Gearbox is made up of hydraulic motor, multi-disc friction braker and planet gearbox decelerator. Having characteristics of small, light, large torque, high start and transmission efficiency, low noise, ect. Output shaft can bear large axial force.
2. Hydraulic transimission can be applied in kinds of hydraulic transimission system and rotating facilities.
Characteristics:
1.Low noise
2.High staring torque ( mechanical efficiency improved to over 0.9 ), good stability when low speed.
3.High volumetic efficiency
4.Higher mechanical efficiency
5.Opposite rotating available
6.Radial and axial load available
7.Higher kw/kg rati
TECHNICAL DATA
| Type | Displacement ml/r | Torque N.m | Pressure Mpa | Speed range r/min | Braker | Ratio of gearbox | Associated motor | Weight | Length mm | |||
| Rated torque |
Max. torque |
Rated pressure |
Max. pressure |
Releasing pressure Mpa | Brake torque N.m | kg | ||||||
| ZCM1200/B | 960 | 1200 | 1920 | 10 | 16 | 3-83 | 2.6 | 2800 | 6 | BM4-160 | 60 | 348 |
| ZCM1600/B | 1200 | 1600 | 2200 | 11.6 | 16 | 3-83 | 2.6 | 2800 | 6 | BM4-200 | 60 | 353 |
| ZCM2000/B | 1500 | 2000 | 2750 | 11.6 | 16 | 3-66 | 2.6 | 2800 | 6 | BM4-250 | 60 | 359 |
| ZCM2500/B | 1900 | 2500 | 3500 | 11.4 | 16 | 3-60 | 2.6 | 3600 | 6 | BM4-320 | 60 | 376 |
| ZCM3000/B | 1900 | 3000 | 3500 | 13.8 | 16 | 3-60 | 2.6 | 3600 | 6 | BM4-320 | 60 | 376 |
| ZCM3500/B | 2400 | 3500 | 4375 | 12.8 | 16 | 2-52 | 2.8 | 7500 | 6 | BM5S1-400 | 100 | 363 |
| ZCM4000/B | 3000 | 4000 | 5520 | 11.6 | 16 | 2-46 | 2.8 | 7500 | 6 | BM5S1-500 | 100 | 380 |
| ZCM5000/B | 3750 | 5000 | 6900 | 11.5 | 16 | 2-40 | 2.8 | 7500 | 6 | BM5S1-630 | 100 | 392 |
| ZCM6000/B | 3750 | 6000 | 6900 | 13.9 | 16 | 2-40 | 2.8 | 7500 | 6 | BM5S1-630 | 100 | 392 |
| ZCM2.3-3000/B | 2880 | 3000 | 3500 | 9.2 | 11 | 0.4-17 | 2.2 | 4800 | 36 | BM3-80 | – | – |
| ZCM2.6-4000/B | 2880 | 4000 | 5120 | 12.5 | 16 | 0.4-17 | 2.2 | 7500 | 36 | BM3-80 | 85 | 428 |
| ZCM2.6-5000/B | 3600 | 5000 | 6250 | 12.8 | 16 | 0.4-14 | 2.2 | 7500 | 36 | BM3-100 | 86 | 432 |
| ZCM2.6-6000/B | 4500 | 6000 | 7500 | 12 | 15 | 0.4-11 | 2.2 | 7500 | 36 | BM3-125 | 88 | 436 |
| ZCM1200/C | 580 | 1200 | 1880 | 15.9 | 25 | 3-80 | 2.6 | 2800 | 6 | JMDG2-100 | 70 | – |
| ZCM1800/C | 940 | 1800 | 2260 | 15.9 | 20 | 3-80 | 2.6 | 2800 | 6 | JMDG2-150 | 70 | – |
| ZCM2000/C | 1050 | 2000 | 2630 | 15.2 | 20 | 3-66 | 2.6 | 2800 | 6 | JMDG2-175 | 70 | – |
| ZCM2500/C | 1200 | 2500 | 3000 | 16.6 | 20 | 3-66 | 2.6 | 3600 | 6 | JMDG2-200 | 70 | – |
| ZCM3000/C | 1520 | 3000 | 3820 | 15.7 | 20 | 2-52 | 2.8 | 7500 | 6 | JMDG3-250 | 110 | 431 |
| ZCM3500/C | 1800 | 3500 | 4500 | 15.5 | 20 | 2-52 | 2.8 | 7500 | 6 | JMDG3-300 | 110 | 431 |
| ZCM4000/C | 2100 | 4000 | 5260 | 15.2 | 20 | 2-52 | 2.8 | 7500 | 6 | JMDG3-350 | 110 | 431 |
