Customized Spherical Table Fan Electric Motor Ball Bearing Bushing

Customized Spherical Table Fan Electric Motor Ball Bearing Bushing

FOB Reference Price: Get Latest Price

≥10000 Pieces

US $0.05

≥50000 Pieces

US $0.04

≥100000 Pieces

US $0.03

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: TEHCO

Model Number:: TCB40

Product name:: Oil sintered bushing

Size:: Customized Size

Features:: Cheap and stable in dimension

Processing method:: Mold extrusion

Certification:: ISO9001, TS16949

Advantage:: Customized service provided

Samples:: Avaliable

Delivery time:: 5-10days

Service:: OEM Services

Application:: Domestic electric and electronic machines, etc

Quick Details

Applicable Industries:: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Energy & Mining

Type:: sleeve

Material:: Bronze powder/iron powder/copper iron powder alloy

Place of Origin:: Zhejiang, China

Brand Name:: TEHCO

Model Number:: TCB40

Product name:: Oil sintered bushing

Size:: Customized Size

Features:: Cheap and stable in dimension

Processing method:: Mold extrusion

Certification:: ISO9001, TS16949

Advantage:: Customized service provided

Samples:: Avaliable

Delivery time:: 5-10days

Service:: OEM Services

Application:: Domestic electric and electronic machines, etc

Product Description

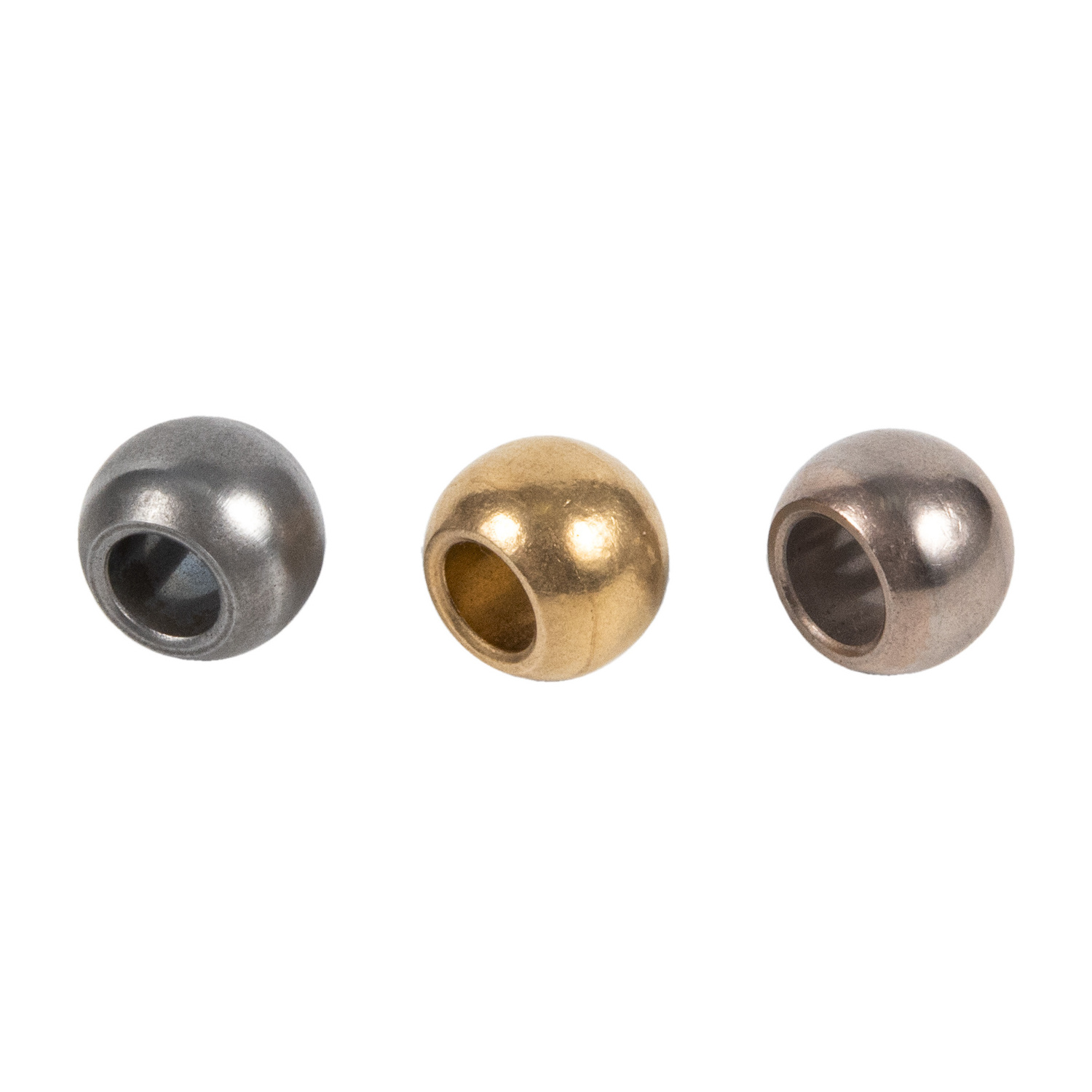

Customized Spherical Table Fan Electric Motor Ball Bearing Bushing

is mold pressed under high pressure and then sintered under high temperature, and oil is
soaked into the homogeneously spreaded tiny pores of the metal under vacuum.

This bearing can withstand dry condition in medium speed and low load for short time. Moreover it is cheap and stable in dimension.

Application:

is widely used in domestic electric and electronic machines, electric tools, textile machines, chemical engineering machines, automobiles and official business machines.

Product Type	Customized Spherical Table Fan Electric Motor Ball Bearing Bushing
Material	Bronze powder
Density	6.4~6.8g/cm3
Static Load	200N/mm²
Dynamic Load	18N/mm²
Max linear speed	7m/s
Volume of oil impregnation	22%
Hardness	25HB
Friction coefficient	0.03μ
Traction resistance	10~20N
Elongation	1~2.5%
Max thermal temperature	-20~+120℃
Application	Domestic electric and electronic machines,electric tools,textile machines,chemical engineering machines,automobiles and official business machines , fan parts,etc.
Notice: In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.

Detailed Images

Application

Company Introduction

Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.

Packing & Delivery

1. Inner Packing

For small products:

100pcs-200pcs per sealed plastic bag.

For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)

2. Outer Packing

8pcs-300pcs per carton (depends on the product size)

3. Shipment Packing

18-24 cartons per wood case or pallet, shockproof and safe for transportation.

Delivery pictures

Products loaded on container.

Products arrives at the destination.

Customer is unloading.

Our Advantages

FAQ

Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.

Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.

Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.

Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.

Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
