Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
PNS
-
Model Number:
-
WL500-1000/RW-28
-
Product name:
-
Rock wool sandwich panels with PU sealing side
-
Thickness:
-
50-150mm
-
Effective width:
-
500-1000 mm
-
Length:
-
1-11.8m
-
Surface material:
-
Color Coated Galvanized steel sheet
-
Core material:
-
Rock Wool Board
-
Density:
-
80-120kg/m3
-
Color:
-
white gray,silver gray,sea-blue,crimson and so on
-
Advantage:
-
Fireproof
Quick Details
-
Project Solution Capability:
-
graphic design, Others, total solution for projects
-
Application:
-
Workshop
-
Design Style:
-
Industrial
-
Place of Origin:
-
China
-
Brand Name:
-
PNS
-
Model Number:
-
WL500-1000/RW-28
-
Product name:
-
Rock wool sandwich panels with PU sealing side
-
Thickness:
-
50-150mm
-
Effective width:
-
500-1000 mm
-
Length:
-
1-11.8m
-
Surface material:
-
Color Coated Galvanized steel sheet
-
Core material:
-
Rock Wool Board
-
Density:
-
80-120kg/m3
-
Color:
-
white gray,silver gray,sea-blue,crimson and so on
-
Advantage:
-
Fireproof
Specification
|
Product Name
|

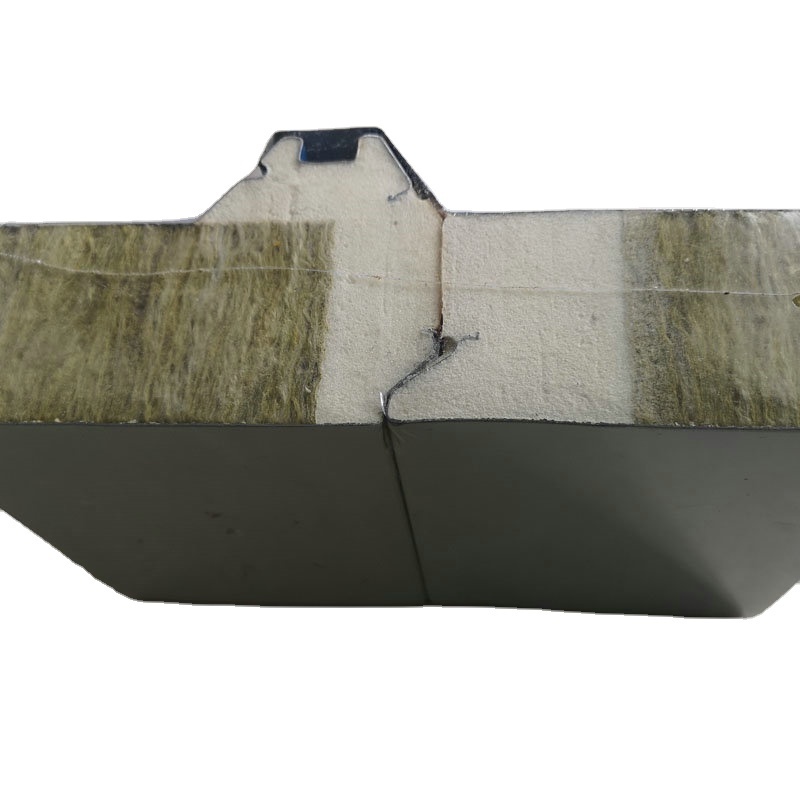

Rock wool Sandwich Wall Panel with PUR/PIR Double Sealing
|
|
|
|
Model
|
WL500-1000/RW
|
WL500-1000/GW
|
|
|
Thickness of Panels
|
50/75/80/100/150/200mm
|
|
|
|
R-Value
|
1.32/1.97/2.11/ 2.63/3.95/5.26 m².K/w
|
|
|
|
Thermal Conductivity of Rockwool
|
λ≤0.038 w/(m. k)
|
|
|
|
Metal Sheet(0.4-0.8mm)
|
1) color prepainted galvanized steel sheet 2) Aluminium zinc sheet 3) stainless steel sheet 4)Aluminum Magnesium Manganese sheet
|
|
|
|
Core Material
|
Rock Wool
|
|
|
|
Hydrophobic Rate
|
98%
|
|
|
|
Glue Connection
|
Bonding Strength > 0.06MPa
|
|
|
|
Gluing Method
|
Automatic Glue Spraying
|
|
|
|
Density : Core Material
|
Rock Wool: 80kg/m³ -120kg/m³
|
|
|
|
Density: Sealing Side
|
PU:40-42kg/m³
|
|
|
|
Fireproof grade
|
Grade A
|
|
|
|
Color of Steel Plate
|
White Grey, Silver Gray, Sea-Blue, Crimsonor as per RAL
|
|
|
|
Exterior / Interior Surface Profile
|
Square Wave, Flat, Embossment, Small Wave, Wide Ribed
|
|
|
|
Effective Width
|
500-1000 mm (Regular 1000mm)
|
|
|
|
Length of Panel
|
Max.11.8 meters
|
|
|
|
Installation Method
|
1. horizontal 2. vertical
|
|
|
|
Connection
|
PU edge tongue and groove with hidden screw
|
|
|
Project Case
Packing & Delivery
PE Film package and paperboard protect corner
