Multi-Span Greenhouse, cost-saving and convenient to use, is a kind of equipment for cultivation or breeding that is constructed simply. The greenhouse has great space-efficient performance and strong ventilation ability, also preventing the heat loss and the intrusion of cold air.
- Product Details
- {{item.text}}
Quick Details
-
Instruction for use:
-
All installation we provided
-
Model Number:
-
Commercial greenhouse agricultural
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dorisun
-
Product name:
-
Multi span greenhouse
-
greenhouse Structure:
-
Hot galvanized steel with 275g/m2
-
Covering material:
-
150/200micron
-
Length:
-
20-200m,customized
-
Width:
-
8m-112m,customized
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Optional system:
-
Cooling system, irrigation system,heater,lights
-
Application:
-
Vegetable planting
-
Advantage:
-
Easy installed,economic
-
Ventilation:
-
Side and top ventilation
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
Dorisun
-
Instruction for use:
-
All installation we provided
-
Model Number:
-
Commercial greenhouse agricultural
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dorisun
-
Product name:
-
Multi span greenhouse
-
greenhouse Structure:
-
Hot galvanized steel with 275g/m2
-
Covering material:
-
150/200micron
-
Length:
-
20-200m,customized
-
Width:
-
8m-112m,customized
-
Basic component:
-
Structure, covering film, air ventilation,doors and insect net
-
Optional system:
-
Cooling system, irrigation system,heater,lights
-
Application:
-
Vegetable planting
-
Advantage:
-
Easy installed,economic
-
Ventilation:
-
Side and top ventilation
Products Description

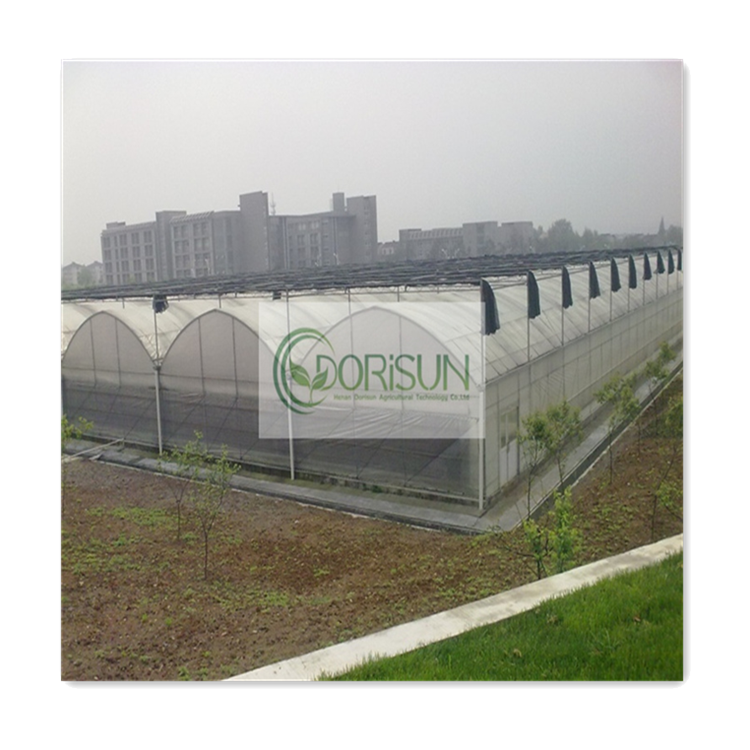

Multi span greenhouse
Multi-span greenhouse is widely used in the cultivation of tomato,vegetables, fruits and flowers. It can provide the conditions of suitable illumination, moisture and temperature, raising the output and resisting the natural disasters.
Product Paramenters
|
Specification of multi span greenhouse
|
|
|
|
|
||||
|
Steel Structure
|
275g/m2 zinc coat Hot galvanized steel pipe
|
|
|
|
||||
|
Cover material
|
PEP 150micon,200micron,customized
|
|
|
|
||||
|
Length
|
20-200m,customized
|
|
|
|
||||
|
Width
|
8m,16m,24m,32m,.......108m,customized
|
|
|
|
||||
|
Gutter Height
|
2m,3m,4m,customized
|
|
|
|
||||
|
Roof height
|
4.5m,5.5m,customized
|
|
|
|
||||
|
Wind load
|
130km/h
|
|
|
|
||||
|
Snow load
|
0.5KN/M2
|
|
|
|
||||
|
Temperature resistance
|
-40 ~ 120°C
|
|
|
|
||||
|
Option
|
Side or top ventilation/heating/cooling/shading system,drip/micro irrigation system
|
|
|
|
||||
|
Service
|
Complete greenhouse solution, overseas after-sales service
|
|
|
|
||||
Details Images
Greenhouse
Steel Structure
1.Hot galvanized steel framework,with 275g/m2 zinc coated
2.There is no bare welding points and connected by galvanized bolts, screws, and self-screws
3.Anti-rust for over 15 years
4.Diameter of arch pipe have 25mm,32mm,40mm,48mm,50mm,60mm
3.Anti-rust for over 15 years
4.Diameter of arch pipe have 25mm,32mm,40mm,48mm,50mm,60mm
Cover film
1.150 mircon (standard)/200 mircom
2.Anti-drip,Anti-fog,Anti-UV
2.Global light transmission≥90%
3.Diffusion: 20%
4.UV transmission 300%-390%
5.Warranty:4-8 years
2.Global light transmission≥90%
3.Diffusion: 20%
4.UV transmission 300%-390%
5.Warranty:4-8 years
Two sides ventilation
Two sides ventilation by manual/electric roll up machine
Roof vebtilation by electric motor
40mesh insect net will be offered for vents
Roof vebtilation by electric motor
40mesh insect net will be offered for vents
Insect net
40 mesh insect net to
Prevent insects from entering
Customers review
Other system for greenhouse
Our factory
Henan Dorisun Agricultural Technology Co,.Ltd specializes in manufacturing all kinds of greenhouse system and rolling bench
sytsem.Like blackout greenhouse,rolling bench,single span greenhouse,multi span greenhouse,cooling system,drip irriation ,heaters and sales and technical services. Lucky Agricultural is one of big factory in China, which were build over 12years.We have a professional design team and production team,we can accept customized size and design. And best after-sales service,we can provide installation guiding service,provide installation drawings and files,and online guiding service too.
