Applicable to the scope:
web, insulating paper, release paper, kraft paper, barley paper, printing paper, label paper,
wallpaper,double-sided adhesive tape, PVC film, PET film, heat shrinkable film, OPP film, insulating film, Bubble film, reflective film,pearl cotton, EVA foam, non-woven fabric, knitted, PU artificial leather, cowhide, copper foil, aluminum foil, wire mesh,etc.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Desktop integrated slitting machine
-
Model:
-
MT-400T
-
Max cutting width:
-
400mm
-
Cutting speed:
-
30-60m/min
-
Cutting Precision:
-
0.1mm
-
Cutting length:
-
1-9999mm
-
Cutting materials:
-
Plastic Paper Cutting Machine
-
Function:
-
High Efficiency
-
Dimension:
-
1850*680*1120mm
-
Weight:
-
195KG
Quick Details
-
Weight (KG):
-
195
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Product name:
-
Desktop integrated slitting machine
-
Model:
-
MT-400T
-
Max cutting width:
-
400mm
-
Cutting speed:
-
30-60m/min
-
Cutting Precision:
-
0.1mm
-
Cutting length:
-
1-9999mm
-
Cutting materials:
-
Plastic Paper Cutting Machine
-
Function:
-
High Efficiency
-
Dimension:
-
1850*680*1120mm
-
Weight:
-
195KG
Product Description

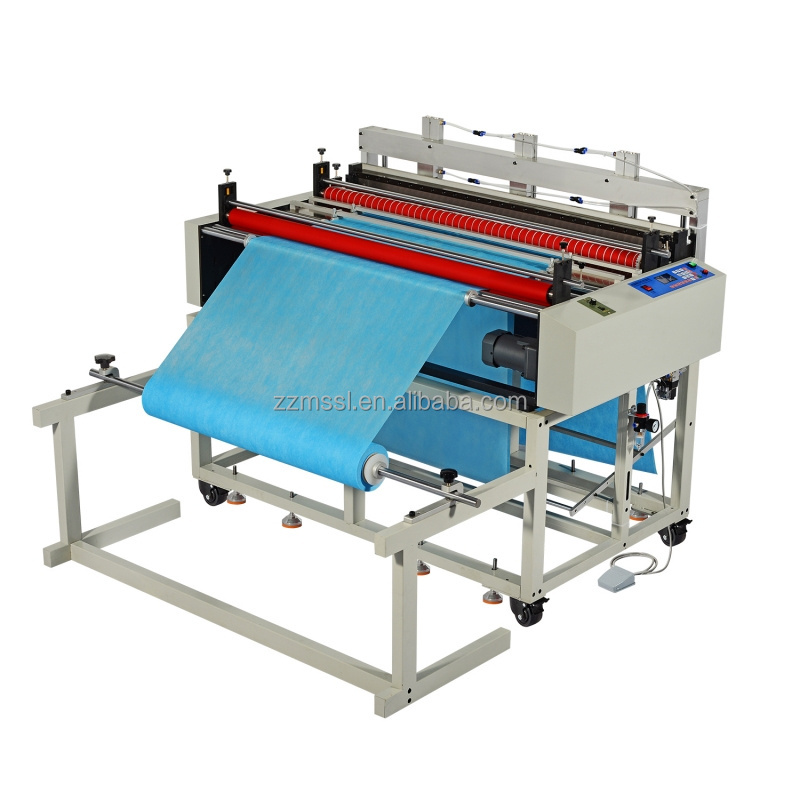

Cloth Cutting Machine Canvas Cutting Machine High Efficiency Electric
400mm Full Automatic Roll To Sheet Pvc Film Paper Cutting Machine / Die-cutting Machine/automatic Roll Sheet Cutting Machine
Specification
|
Model
|
MT-300T/400T/600T/800T/1000T/1300T/1500T/1600T/1700T
|
|
Max cutting width
|
300/400/600/800/1000/1300/1500/1600/1700mm
|
|
Cutting length
|
1-9999mm adjustable
|
|
Cutting precision
|
0.1mm
|
|
Cutting speed
|
30-60m/min
|
|
Voltage
|
220V/110V,50/60hz, Ac
|
|
Language
|
Chinese and English (Spanish is Optional)
|
|
Package
|
Wooden case/Carton
|
|
Optional
|
Electronic eye, Knife slitting group, Round blades slitting group, Spring.Static Eliminator
|
|
Power
|
0.9kw
|
|
Weight
|
195kg
|
Details Images
Chinese and English operating system
LCD large screen display, simple panel, simple operation. One-key switch between Chinese and English.
Spring Device is Optional
Plastic and Metal Spring is optional.
Flatten and straighten the material.
Prevent wrinkles and cutting precision.
Automatic Feeding System
High-sensitivity photoelectric sensor cooperates with motor to automatically sense pre-feeding material. Adjust the speed .
Equips With The Stacking Table
The stacking table can loading is up to 50 kg.
The position of the baffle can be adjusted.
Round Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
3 pieces/Group or more.It is optional.Powerful, durable, easy to adjust and operate.
Knife Blade Slitting Group
Knife Blade slitting group for thin materials, such as plastic film, cloth, pearl cotton, EVA foam,bubble film and so on.
5 pieces/Group or more.It is optional. The slitting knives can work alone.
Matsushita Electronic Eye
Fully automatic location tracking.Positioning and cutting, higher accuracy.
Printed eva soft film, Adhesive sticker, Tablecloth Insulation paper wallpaper, Heat transfer film, etc.
Finished Products
