Quick Details
-
Control method:
-
Customized
-
Lifting mechanism:
-
Eliectric Hoist
-
Color:
-
Customized
-
Main electrical parts:
-
Siemens Brand
-
Power Source:
-
3 Phase 380V 50hz
-
Lifting speed:
-
Variable Speed (standard)
-
Crane feature:
-
Single Girder Oveherd Crane
-
Safety device:
-
Equipped
-
Work duty:
-
A5
Quick Details
-
Max. Lifting Height:
-
6m~12m
-
Place of Origin:
-
Henan, China
-
Product name:
-
LX type 3 ton suspension single beam overhead crane
-
Control method:
-
Customized
-
Lifting mechanism:
-
Eliectric Hoist
-
Color:
-
Customized
-
Main electrical parts:
-
Siemens Brand
-
Power Source:
-
3 Phase 380V 50hz
-
Lifting speed:
-
Variable Speed (standard)
-
Crane feature:
-
Single Girder Oveherd Crane
-
Safety device:
-
Equipped
-
Work duty:
-
A5
Industry Standard LX Model Single Beam Girder Overhead Suspension Type Underslung EOT Bridge Crane 3 ton

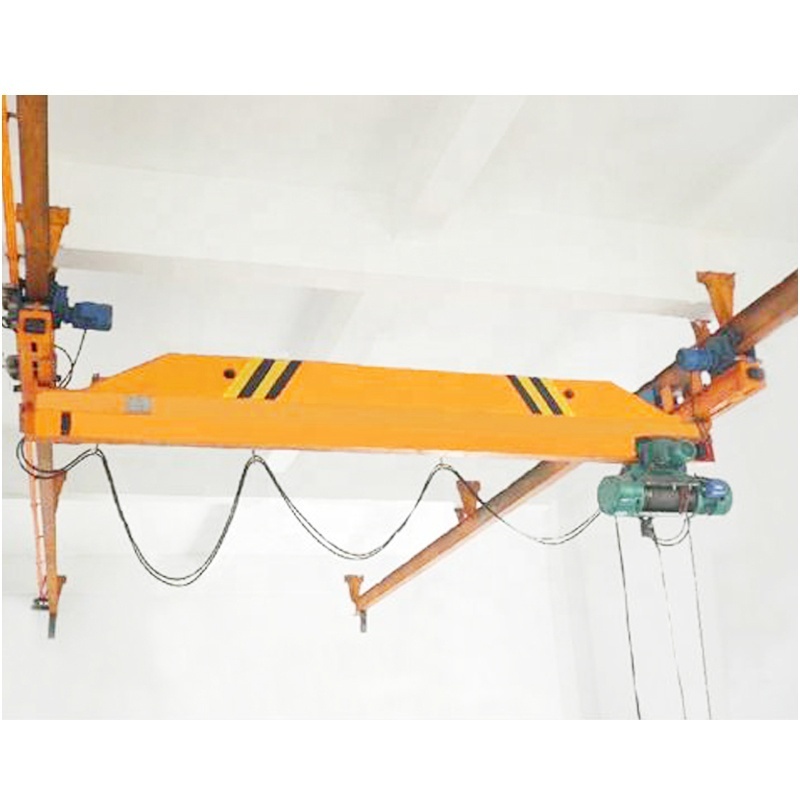

The LX type 3 ton suspension single beam overhead crane is a light duty crane. This type of crane is mainly used in the location where is no possible install columns to support the overhead crane. The end trucks of the underslung bridge crane ride on the bottom flange of the runway beam. Typically, an underhung runway is suspended from the roof of the building and is available only on lighter capacities, not more then 10 tons.
It is good for working environment within working temperature between -25C- +40C. Prohibited to use in locations, where are stocks of flammable, explosive and corrosive materials.
This crane model recommended by the WTO and match technical standard JB/T2603-94.
Characteristics of LX type 3 ton suspension single beam overhead crane:
1. light duty crane with a capacity of 0.5-10 tons
2. span 3-16m
3. lifting height 6-30m
4. working class A3/A5
5. working temperature between -25C to 40C
6. hoist CD or MD
|
Lifting Weight (t)
|
Span (m)
|
Lifting Height (m)
|
Lifting Speed (m/min)
|
Trolley Speed (m/min)
|
Crane Speed (m/min)
|
Recommended Track
|
|
1
|
7.5~22.5
|
6~12
|
0.8/5
|
2~20
|
3~30
|
I20a~I45c
|
|
2
|
6~12
|
I22a~I45c
|
||||
|
3.2
|
6~12
|
I32a~I45c
|
||||
|
5
|
6~12
|
I32a~I45c
|
||||
|
10
|
6~12
|
I40b~I63c
|
||||
|
Working Level
|
A5
|
|||||
|
Power
|
380V,50Hz or other
|
|||||
|
Working Temperature
|
-20~40℃ |
|||||
|
