Quick Details
-
Brand Name:
-
xukang
-
Model Number:
-
UI-TW-15/20/25
-
Operating Temperature:
-
0-100
-
MAXIMUM STARIC PRESSURE:
-
17.5kg/c㎡
-
AMBIENT TEMPERATURE LIMITS:
-
0℃~60℃
-
MAXIMUM LIQUID TEMPERATURE:
-
100℃
-
ELECTRICAL SWITCH:SPDT PRTING:
-
220VAC,15A
-
CONNECTION:
-
SCREW TERMINALS
-
Certification:
-
ISO9001
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
customized
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xukang
-
Model Number:
-
UI-TW-15/20/25
-
Operating Temperature:
-
0-100
-
MAXIMUM STARIC PRESSURE:
-
17.5kg/c㎡
-
AMBIENT TEMPERATURE LIMITS:
-
0℃~60℃
-
MAXIMUM LIQUID TEMPERATURE:
-
100℃
-
ELECTRICAL SWITCH:SPDT PRTING:
-
220VAC,15A
-
CONNECTION:
-
SCREW TERMINALS
-
Certification:
-
ISO9001
Products Description

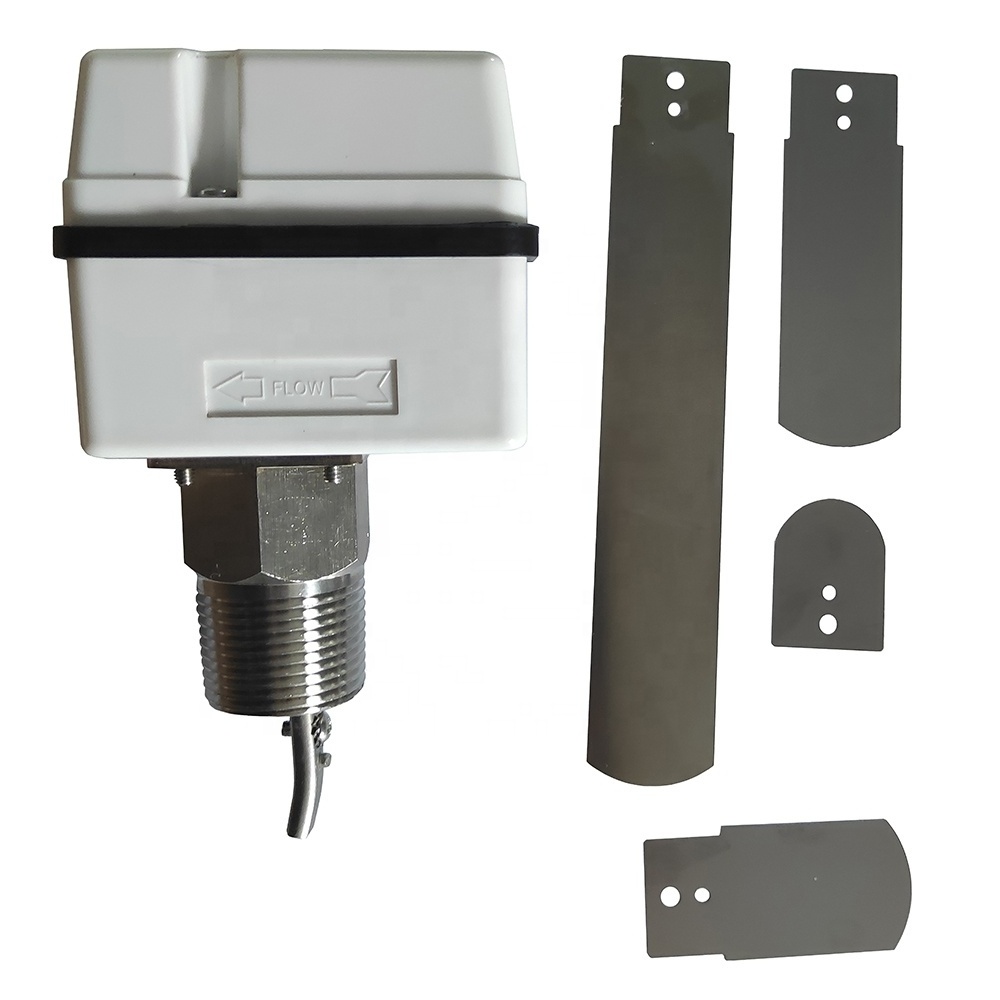

Paddle Flow Switch / SPDT Target flow switch
APPLICATION
FLOW SWITCH USED IN LIQUID FLOW LINES CARRYING WATER OR ANY FLUID NOT HARMFUL TO BARSS OR PHOSPHOR BRONZE AND NOT CLASSIFIED AS HAZARDOUS FLUID.
TO ADJUST SETTING
1.REMOVE SWITCH COVER.
2.FOR HIGHER FLOW RATE TURN RANGE ADJUSTING SCREW COUNTER CLOCKWISE.
3.FOR LOWER FOLW RATE TURN RANGE ADJUSTING SCREW CLOCKWISE.
4.MAKE SURE FLOW SWITCH COVER IS ASSEMBLED BEFORE LEAVING.
MOUNTING
FLOW SWITCH SHOULD BE MOUNTED IN A HORIZONTAL PIPE LINE OR VERTICAL PIPELINE. MOUNT THE INSTRUMENT IN A SECTION OF PIPE WHERE THERE IS A STRAIGHT RUN OF AT LEAST 5 PIPE DIAMETER ON EACH SIDE OF THE FLOW SWITCH.
Specification
|
CONTROL TYPE
|
PADDLE
|
|
MAXIMUM STARIC PRESSURE
|
17.5kg/c㎡
|
|
AMBIENT TEMPERATURE LIMITS
|
0℃~60℃
|
|
MAXIMUM LIQUID TEMPERATURE
|
100℃
|
|
ELECTRICAL SWITCH:SPDT PRTING
|
220VAC,15A
|
|
CONNECTION
|
SCREW TERMINALS
|
|
CASE
|
PLASTIC COVER WITH 1/2 CONDUIT OPENING
|
Company Introduction
Company introduction
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
