Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDP1-015-040-23C
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
54W
-
Outlet Size:
-
5/8" quick attach
-
Max Flow Rate:
-
1.5 GPM [5.6 LPM]
-
Max Pressure:
-
40 PSI [2.8 Bar]
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Self Priming:
-
5' [1.5 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Intermittent
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,ce
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Food and Beverage Industry, Irrigation and Agriculture, Marine, Washing and Cleaning
-
Pressure:
-
Low pressure
-
Voltage:
-
12 V / 24 V DC
-
Warranty:
-
1 years
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDP1-015-040-23C
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
54W
-
Outlet Size:
-
5/8" quick attach
-
Max Flow Rate:
-
1.5 GPM [5.6 LPM]
-
Max Pressure:
-
40 PSI [2.8 Bar]
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Self Priming:
-
5' [1.5 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Intermittent
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,ce
| Features & Benefits |
|
1.Flow rate up to 1.5 GPM [5.6 LPM]
9. Waterproof grade IPX54 11. Capable of supplying 1-2 fixtures |
2.Can run dry without damage 4. Self priming 6. Multiple ports available 8. Adjustable pressure setting 10. By pass technology reduces cycling |

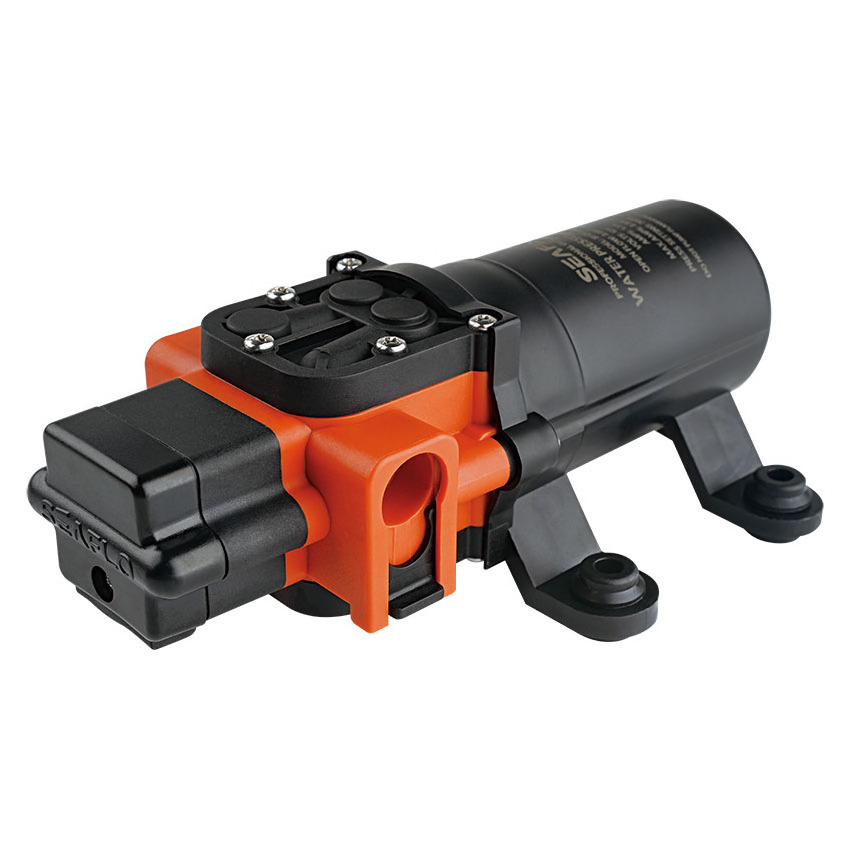

| Product Name | SEAFLO 12V 24V DC high volume Diaphragm Sprayer Water Pump Coffee Syrup Pumps |
| Pump Type | 2 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 1.5 GPM [5.6 LPM] |
| Max Pressure | 40 PSI [2.8 Bar] |
| Voltage | 12 VDC, and 24V, 115V, 230V are available |
| Max Amp | 4. 0A |
| Fuse | 9.0 A |
| Switch Type | On Demand [Cut-off Switch], and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Fluororubber , and EPDM is available |
| Duty Cycle | Intermittent |
| Self Priming | 5' [1.5 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 5/8" Quick Connect, and contact us for more ports |
| Lead | 14" [35 cm] 18 AWG lead with 2-Pin connector |
| Product Show |
| Dimensions |
| Product Details |
Standard Pump Configurations
| Model | Voltage |
Open Flow GPM [LPM] |
Cut off Pressure PSI [BAR] |
Max Draw | Diaphragm | Valve |
| SFDP1-015-040-23C | 12 V | 1.5 [5.6] | 40 [2.8] | 4.5 A | Santoprene | EPDM |
| SFDP2-015-040--23C | 24 V | 1.5 [5.6] | 40 [2.8] | 2.5 A | Santoprene | EPDM |
OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 70 PSI [4.8 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 5.3 GPM [20.0 LPM]. Material can be adjusted according to your requirement.
