Quick Details
-
Product Name:
-
Chinese original high quality metal electic cabinet lock
-
Manner of working:
-
Independently (Be locked when door is close, unlocked power-on);
-
Response time:
-
Less than 20ms
-
Working life:
-
1,000,000 times
-
Sample:
-
Accepted
-
Size:
-
80mm*80mm*13mm
-
Door weight:
-
0.5KG~4KG
-
Usage:
-
Storage cabinet; Express locker; electricity meter box; vending kiosk
-
Working current:
-
0.8A~2A
-
Working humidity:
-
5% ~ 95%RH
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Model Number:
-
NI-S22 digital drawer lock
-
Product Name:
-
Chinese original high quality metal electic cabinet lock
-
Manner of working:
-
Independently (Be locked when door is close, unlocked power-on);
-
Response time:
-
Less than 20ms
-
Working life:
-
1,000,000 times
-
Sample:
-
Accepted
-
Size:
-
80mm*80mm*13mm
-
Door weight:
-
0.5KG~4KG
-
Usage:
-
Storage cabinet; Express locker; electricity meter box; vending kiosk
-
Working current:
-
0.8A~2A
-
Working humidity:
-
5% ~ 95%RH
Intelligent door digital safe box vending machine locker drawer rfid cabinet lock

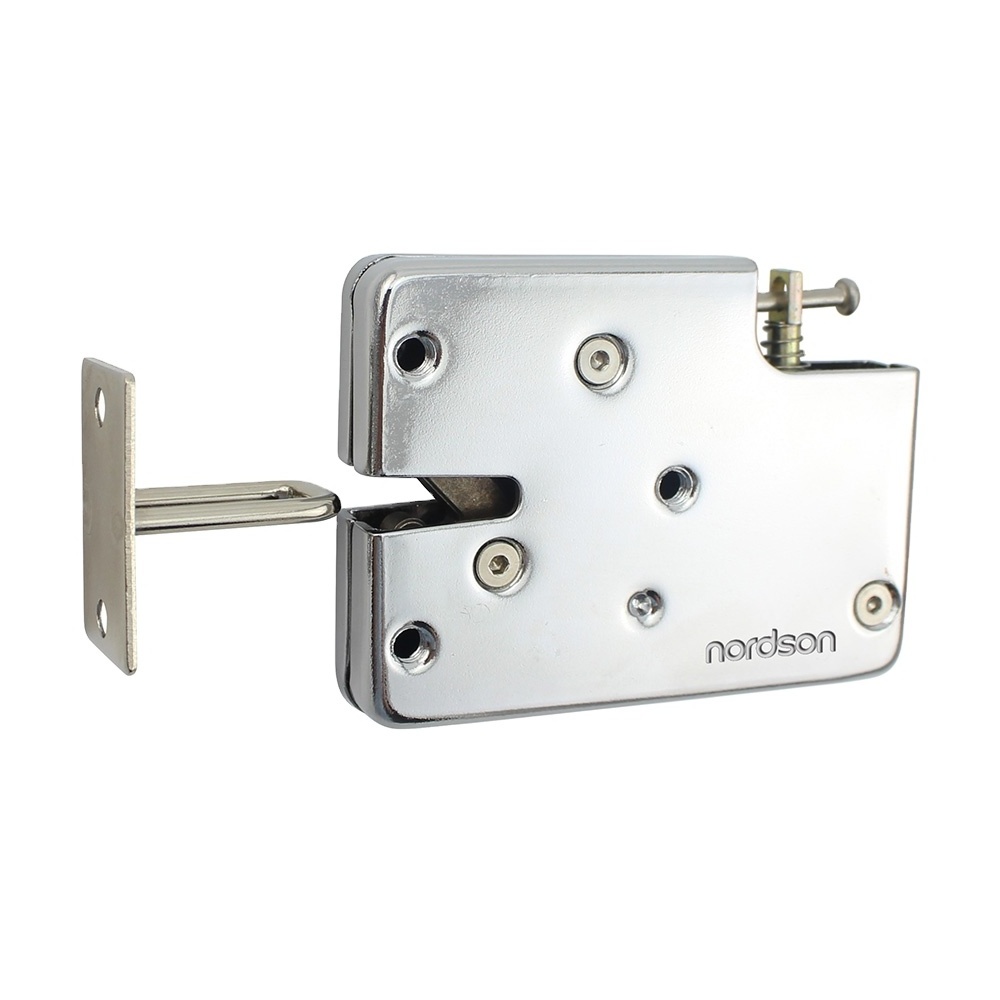

NI-S2 Large elastic force metal electronic cabinet lock, all metal body design, lock shells are made from low carbon steel with three times surface treatment, more robust and wear-resisting, guarding users' property. It use high quality micro detective switch from Japan and AWG24 wires with PVC protecting tube to provide ultra long working life. This smart cabinet lock have powerful compatibility which can connect access control system with multiple opening methods such as: Keypad password, rfid card, fingerprint, remote control and mechnical key. Mechanical emergency lever can open lock in case of power failure, the lock have signal output function, so lock status can be monitored at real-time. users can adjust lock common mode:NC/COM, really making intelligent and humanized management. What's more, This electeic cabinet lock is good value for price, easy installation and low power consumption with high efficiency, when you buy it, you can get 3 year warranty! It's widely used in deposit lockers,fresh freezer, safe box etc, worthy for home and commercial usage. NI-S2 Large elastic force metal electric cabinet lock is also called smart access conrtrol electric cabinet lock, express delivery locker lock, document lock, gym sauna locker lock, wardrobe lock, vending machine lock.
1. Solenoid driven, support 12V & 24V (optional).
2. Lock shells are made from low carbon steel, anti-force performance: 200kgs.
3. Three times surface treatment: copper plated, nickle plated and matt chrome plated.
4. High quality micro detective switch from Japan, 1,000,000-time working life.
5. Mechanical emergency lever, can be unlocked manually in case of power failure .
6. Pushing lever help to push door open. Can be removed.
7. AWG24 wires with PVC protecting tube.
8. Support customizing wires and connectors.
| Product Name | Chinese original high quality metal electic cabinet lock |
| Model | NI-S92 |
| Brand | Nordson |
| Weight with lock hook | 200g |
| Operation voltage | DC12V / DC24V (Option) |
| Working current | 0.8A~2A |
| Maximum power | 24W |
| Protection Class | IP20 |
| Mechanical Override | 7mm hole |
| Manner of working | Independently (Be locked when door is close, unlocked power-on); |
| Response time | Less than 20ms |
| Working temperature | -20℃ ~ +60℃ |
| Working humidity | 5% ~ 95%RH |
| Working life | 1,000,000 times |
| Sample | Accepted |
| OEM | Accepted |
| Size | 80mm*80mm*13mm |
| Door weight | 0.5KG~4KG |
| Usage | Storage locker; cabinet; Express locker; electricity meter box; vending kiosk |
