Quick Details
-
Material:
-
Plywood case, Stainless steel
-
Weight:
-
100kg
-
Size:
-
LxWxH=0.65x0.65x1.5m
-
Power:
-
4kw
-
Weight (KG):
-
100 kg
-
Input water:
-
2 stage RO output water
-
Output water:
-
Deionized water / Ultrapure water
-
Capacity:
-
500L/hour
-
Function:
-
Ultrapure water making
-
Working theory:
-
Ion exchange
-
Treatment procedure:
-
Fine filter + EDI
-
Optional:
-
Filter, Softener, RO, Chemical dosing, UV sterilizer, Ozone sterilizer
-
Operation:
-
Automatic
-
OEM/ODM:
-
Available
Quick Details
-
Applicable Industries:
-
Power plant, Chemical factory, Metallurgical industries, Electronics & Semiconductor industry, Precision machinery industries, Laboratory ultrapure water
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
APS
-
Material:
-
Plywood case, Stainless steel
-
Weight:
-
100kg
-
Size:
-
LxWxH=0.65x0.65x1.5m
-
Power:
-
4kw
-
Weight (KG):
-
100 kg
-
Input water:
-
2 stage RO output water
-
Output water:
-
Deionized water / Ultrapure water
-
Capacity:
-
500L/hour
-
Function:
-
Ultrapure water making
-
Working theory:
-
Ion exchange
-
Treatment procedure:
-
Fine filter + EDI
-
Optional:
-
Filter, Softener, RO, Chemical dosing, UV sterilizer, Ozone sterilizer
-
Operation:
-
Automatic
-
OEM/ODM:
-
Available
Product Overview
DI equipment, Deionized water treatment system
Ultrapure water machines
For Power Cosmetics Electronics Power Medical Cosmetics Electronics
Treatment procedure: Double pass RO + EDI dialysis water treatment system
EDI
(electrodeionization)
description
EDI process systems replace conventional DI mixed resin beds to produce deionized water, ultrapure water.
Unlike DI resin, EDI does not require shutdowns for replacing resin beds or for resin regeneration using chemicals.
Because of this, EDI:
* minimizes water quality upsets
* minimizes operating costs.
EDI removes ions from aqueous streams, typically in conjunction with reverse osmosis (RO) and other purification devices. Our high-quality modules continually produce ultrapure water up to 18.2 MΩ.cm. EDI can be run continuously or intermittently.
EDI input water quality:
*
Temperature range: 15-35 ℃ (optimal 25 ℃)
*
Input PH: 6.5-9.0
*
Input water: Two stage RO output
* Input conductivity: 1-10μs/cm
EDI output water quality:
*
Deionized water,
Ultrapure water,
Resistivity≥18 MΩ.cm
Application
Products Advantage
* EDI does not require chemicals (as does DI resin regeneration)
* EDI does not require shutdowns
* EDI modules are the smallest and lightest per unit flow on the market; EDI skids are therefore compact
* Provides water of consistent quality
* Requires little energy
* Economic use of capital—saves operating expense
Treatment Process
Sand filter + Active carbon filter + Precision filter + One-stage RO + Two-stage RO + EDI system
Optional:
Water softener,
UF ultra filter,
UV sterilizer, Ozone sterilizer, Anti-scale dosing, etc.
APS offer design service according to your water analysis, can provide equipment according to your requirements.
|
No.
|
Part
Name
|
Function
|
|
1
|
Raw water tank
|
Water storage. Overcome the instability of water supply in pipe network and ensure the stability and continuity of water supply
for whole system. |
|
2
|
Raw water pump
|
Provide the necessary working pressure for the pretreatment filters.
|
|
3
|
Quartz sand filter
|
Mainly for water turbidity reducing, filter water mud, sand, rust and oil stain.
|
|
4
|
Active carbon filter
|
Removes residual chlorine type disinfector and microscale suspended solids, adsorb microscale organic colloid in raw water. Effective in removing stubborn organic or inorganic pollutant. Deodorization, discoloration, denitrification, removes heavy metal,
synthetic detergent, virus and radioactive substance. |
|
5
|
Water softener
|
Reduce the hardness of water, prevent scaling on the surface of RO membrane, and extend the service life and treatment efficiency
of RO membrane. |
|
6
|
Anti-scale dosing
|
It can prevent / reduce scaling speed on membrane surface, improve water yield and quality, and reduce operating costs.
|
|
7
|
Protective filter
|
Removal of moderate amounts of particles from liquids in the size range of 50 to 0.1 microns.
|
|
8
|
High pressure pump
|
Provide the working pressure of the permeate flow and water quality required by the RO equipment.
|
|
9
|
RO (reverse osmosis)
|
Effectively remove the dissolving salt , ion, colloid, microorganism, heat source, organics, as well as other impurities such as bacteria, sugars, proteins, dyes and constituents having a molecular weight greater than 150-250 dalton.
|
|
10
|
EDI
|
EDI (Electrodeionization) used to produce deionized water / ultrapure water.
|
|
11
|
Sterilizer
|
Use UV or ozone sterilizer to kill bacterial & virus.
|
|
12
|
Treated water tank
|
Store treated water.
|
Products photo

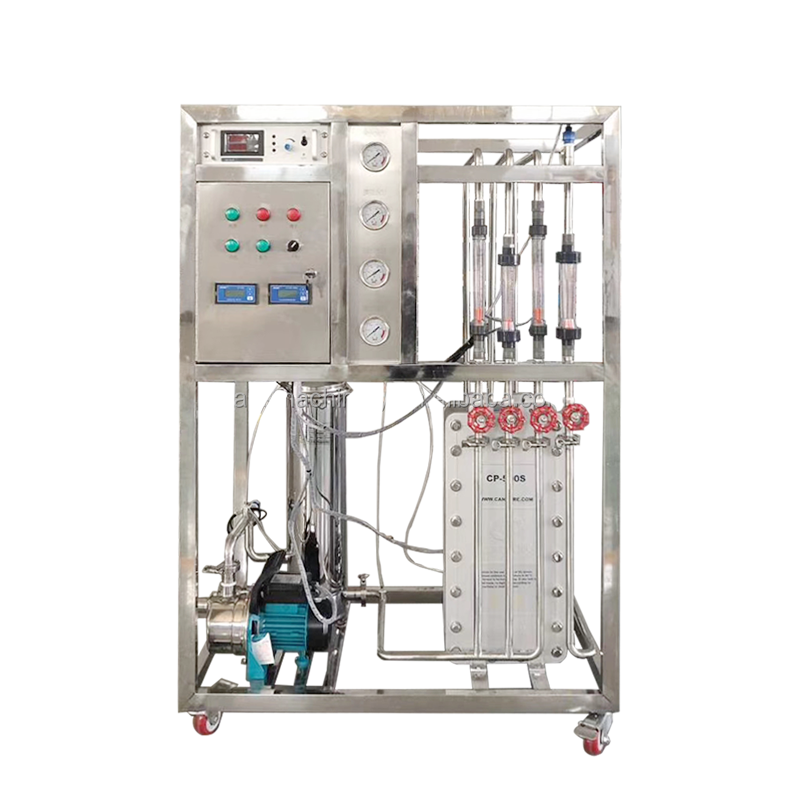

APS 0.5m³/hour EDI ultrapure water treatment equipment
Side view
APS 0.5m³/hour EDI ultrapure water treatment equipment
Front view
APS 0.5m³/hour Two-stage RO + EDI
ultrapure water treatment equipment
Front view
Front view
APS 0.5m³/hour Two-stage RO + EDI
ultrapure water treatment equipment
Back view
ultrapure water treatment equipment
Back view
APS 0.5m³/hour Sand filter + Carbon filter + Water softener + Two-stage RO + EDI ultrapure water treatment equipment
Front view
APS 0.5m³/hour
EDI
ultrapure water treatment equipment
Front view
Front view
APS 1.5m³/hour Sand filter+Carbon filter+Two-stage RO+EDI
ultrapure water treatment equipment
Side view
ultrapure water treatment equipment
Side view
APS 1.5m³/hour Sand filter+Carbon filter+Two-stage RO+EDI
ultrapure water treatment equipment
Front view
ultrapure water treatment equipment
Front view
APS 0.5m³/hour Sand filter + Carbon filter + Softener +
Two-stage RO + EDI ultrapure water treatment equipment
Side view
APS 0.5m³/hour Water tank + Sand filter + Carbon filter + Softener + Two-stage RO water treatment equipment
Front view
APS 0.5m³/hour EDI ultrapure water treatment equipment
+ UV sterilizer + water tank
Front view
+ UV sterilizer + water tank
Front view
APS 0.5m³/hour EDI ultrapure water treatment equipment
+ water tank
Front view
Front view
APS 10m³/hour Two-stage RO + EDI
ultrapure water treatment equipment
Side view
Side view
APS 10m³/hour Two-stage RO + EDI
ultrapure water treatment equipment
Back view
ultrapure water treatment equipment
Back view
APS 3m³/hour EDI ultrapure water equipment
For
urea production
use
For urea production use
APS 30m³/hour Sand filter + Carbon filter + RO + EDI ultrapure water equipment
APS 3m³/hour EDI ultrapure water equipment
+ water tank
APS 30m³/hour Filter pump + Sand filter + Carbon filter
for ultrapure water equipment
APS 30m³/hour Two-stage RO
for ultrapure water equipment
