- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SHOW Q30
-
Dimension:
-
W118mm * D125mm * H1091mm
-
Power Supply Mode:
-
8ohms
-
Storage:
-
Enclosure:12mm(0.5")MDF
-
SNR:
-
-
-
Output Power:
-
8ohms 480W
-
Format:
-
Connector:Standard 4PIN phoenix connector
-
Product Name:
-
SHOW Q30 6 unit full range frequency airtight loudspeaker
-
Type:
-
SHOW Q series mini line array column loudspeaker
-
Keyword:
-
column loudspeaker
-
Rated Power:
-
480W
-
Max power:
-
960W
-
Peak power:
-
1920W
-
Nominal impedance:
-
8 Ω
-
Recommended power amp output rating:
-
500W-1000W@8 Ω
-
Frequency Range (Hz):
-
90Hz-18.5KHz
-
Max SPL(Pmax@1m):
-
126dB@480W(129dB@960W)
Quick Details
-
Warranty:
-
3 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEKEN
-
Model Number:
-
SHOW Q30
-
Dimension:
-
W118mm * D125mm * H1091mm
-
Power Supply Mode:
-
8ohms
-
Storage:
-
Enclosure:12mm(0.5")MDF
-
SNR:
-
-
-
Output Power:
-
8ohms 480W
-
Format:
-
Connector:Standard 4PIN phoenix connector
-
Product Name:
-
SHOW Q30 6 unit full range frequency airtight loudspeaker
-
Type:
-
SHOW Q series mini line array column loudspeaker
-
Keyword:
-
column loudspeaker
-
Rated Power:
-
480W
-
Max power:
-
960W
-
Peak power:
-
1920W
-
Nominal impedance:
-
8 Ω
-
Recommended power amp output rating:
-
500W-1000W@8 Ω
-
Frequency Range (Hz):
-
90Hz-18.5KHz
-
Max SPL(Pmax@1m):
-
126dB@480W(129dB@960W)

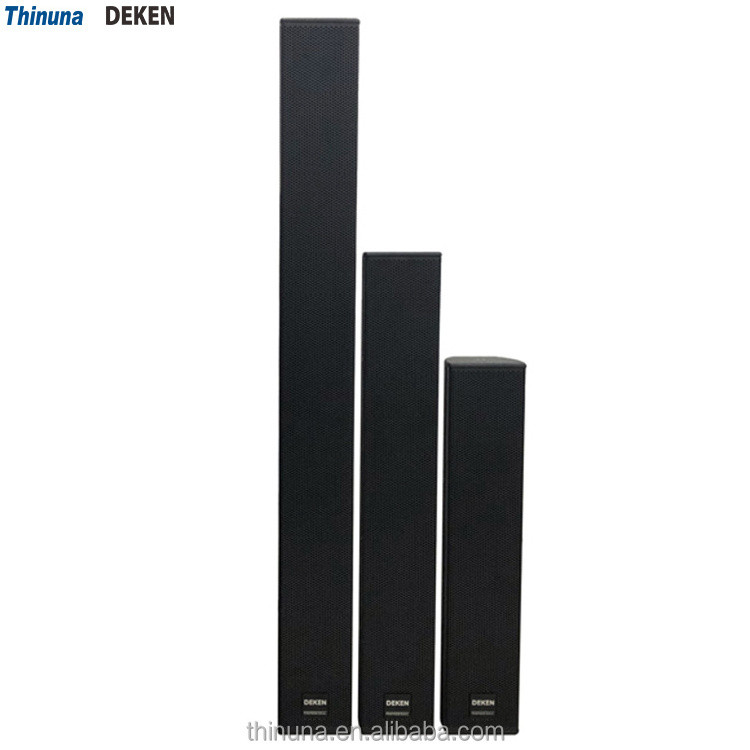

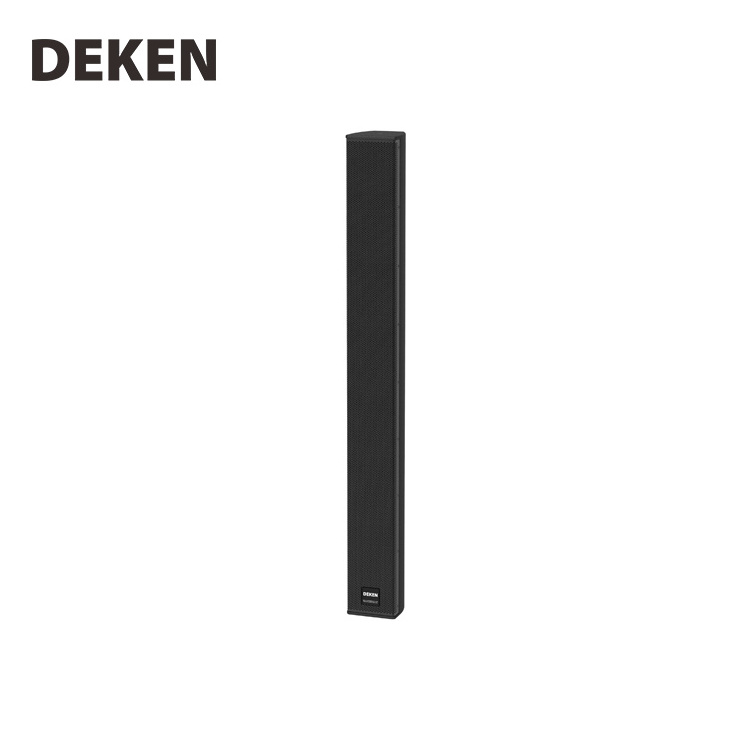

DEKEN SHOW Q30 Mini Line Array Column Speakers 8 Ohms 480 Watts 6 Unit Full Range Frequency Professional Airtight Loudspeaker
Products Description
SPECIFICATIONS：
System type：6 unit full range frequency airtight loudspeaker
Rated power：480W
Max power：960W
Peak power：1920W
Nominal impedance：8 Ω
Recommended power amplifier output rating：500W—1000W@8 Ω
Nominal sensitivity（1W@1m）：99dB
Max SPL（Pmax@1m）：126dB@480W(129dB@960W)
Frequency response（-10dB）：90Hz—18.5KHz
Nominal coverage pattern（-6dB）：90°H×20°V
Speaker component：Full range driver 3″（75mm diameter 20mm voice coil）×12
Crossover modes： -----
Connector：Standard 4PIN phoenix connector
Enclosure：12mm（0.5″）MDF
Color：Default is black, other colors can be customized
Dimensions：W118mm x D125mm x H1091mm
Weight(each) ：10.7kg
Shipping weight：11.9kg
Reference applications:：Multifunctional hall, auditorium, lecture hall, conference room
System type：6 unit full range frequency airtight loudspeaker
Rated power：480W
Max power：960W
Peak power：1920W
Nominal impedance：8 Ω
Recommended power amplifier output rating：500W—1000W@8 Ω
Nominal sensitivity（1W@1m）：99dB
Max SPL（Pmax@1m）：126dB@480W(129dB@960W)
Frequency response（-10dB）：90Hz—18.5KHz
Nominal coverage pattern（-6dB）：90°H×20°V
Speaker component：Full range driver 3″（75mm diameter 20mm voice coil）×12
Crossover modes： -----
Connector：Standard 4PIN phoenix connector
Enclosure：12mm（0.5″）MDF
Color：Default is black, other colors can be customized
Dimensions：W118mm x D125mm x H1091mm
Weight(each) ：10.7kg
Shipping weight：11.9kg
Reference applications:：Multifunctional hall, auditorium, lecture hall, conference room
Specification
|
System type
|
6 unit full range frequency airtight loudspeaker
|
|
Rated power
|
480W
|
|
Max power
|
960W
|
|
Peak power
|
1920W
|
|
Nominal impedance
|
8 Ω
|
|
Recommended power amplifier output rating
|
500W—1000W@8 Ω
|
|
Nominal sensitivity（1W@1m）
|
99dB
|
|
Max SPL（Pmax@1m）
|
126dB@480W(129dB@960W)
|
|
Frequency response（-10dB）
|
90Hz-18.5KHz
|
|
Nominal coverage pattern（-6dB）
|
90°H×20°V
|
|
Speaker component
|
Full range driver 3″（75mm diameter 20mm voice coil）×12
|
|
Crossover modes
|
-----
|
|
Connector
|
Standard 4PIN phoenix connector
|
|
Enclosure
|
12mm（0.5″）MDF
|
|
Color
|
Default is black, other colors can be customized
|
|
Dimensions
|
W118mm x D125mm x H1091mm
|
|
Weight(each)
|
10.7kg
|
|
Shipping weight
|
11.9kg
|
|
Reference applications:
|
Multifunctional hall, auditorium, lecture hall, conference room
|
Application Cases
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks,
stage performances, dance halls, live audio recording, music screening rooms and other places
.......
Recommend Products
The main products：
Speaker：
Ceiling Speaker, Professional Speaker,Blue tooth Speaker,Wall Mount Speaker，Column Speaker, Horn Speaker,Conference Speaker，Active Speaker,Garden Speaker，Lawn Speaker , Rock Stone Speaker, Landscape Speaker ,Subwoofer Speaker，Sound System etc.
Amplifier：
Pa Amplifier，Blue tooth Amplifier，4 Channels Amplifier，FM Amplifier，Class D amplifier，Audio amplifier，Professional Amplifier etc.
Public Address System：
IP network system，IP Network Host，IP Network Soft，IP Amplifier，IP Speaker，IP Microphone.
About us
Production Flow
Our customer feedback
Packing & Delivery
FAQ
Q: Are you Manufacturer or Trading company?
A: We have more than 20 years experience in researching and manufacturing
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q: Do you have any qualification certificate?
A:Yes, we have the CCC.CE and ROHS certificates
Q: Is sample available?
A: Yes, sample order is welcome, sample and delivery cost to be paid by buyer.Average delivery for sample is around 7-10days.
Q: Can I use my own Logo?
A:Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.
Q: Could you produce the products according to our request?
A: Of course, we have experienced engineers to design the expected items as you want, we have much experience at ODM.
Q:What is your payment terms?
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12months after shipment
A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.
Q: What would the delivery time be?
A: Regularly 15-30 days since deposit received depends on different quantities.
Q: Shipping documents to be provided.
A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.
Q: Warranty.
A: 12months after shipment
