2.Speed control, monitor fuel consumption.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2752*1033*1607
-
Machine Weight:
-
1450 kg
-
Bucket capacity:
-
0.14m³
-
Model:
-
DD400
-
HorsePower:
-
25hp
-
Wheels:
-
Rubber tracks
-
Weight:
-
1450 kg(w/t bucket)
-
Rated Load:
-
300kg
-
Drive Mode:
-
Motor direct drive
-
Operations:
-
Hydraulic Joysticks control
-
Total length(L)(with bucket):
-
2752 mm
-
Fuel Tank:
-
28L
Quick Details
-
Engine Brand:
-
Kubota /Perkins diesel engine
-
Power:
-
25hp, 18.4kw
-
Brand Name:
-
Daiding
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2752*1033*1607
-
Machine Weight:
-
1450 kg
-
Bucket capacity:
-
0.14m³
-
Model:
-
DD400
-
HorsePower:
-
25hp
-
Wheels:
-
Rubber tracks
-
Weight:
-
1450 kg(w/t bucket)
-
Rated Load:
-
300kg
-
Drive Mode:
-
Motor direct drive
-
Operations:
-
Hydraulic Joysticks control
-
Total length(L)(with bucket):
-
2752 mm
-
Fuel Tank:
-
28L

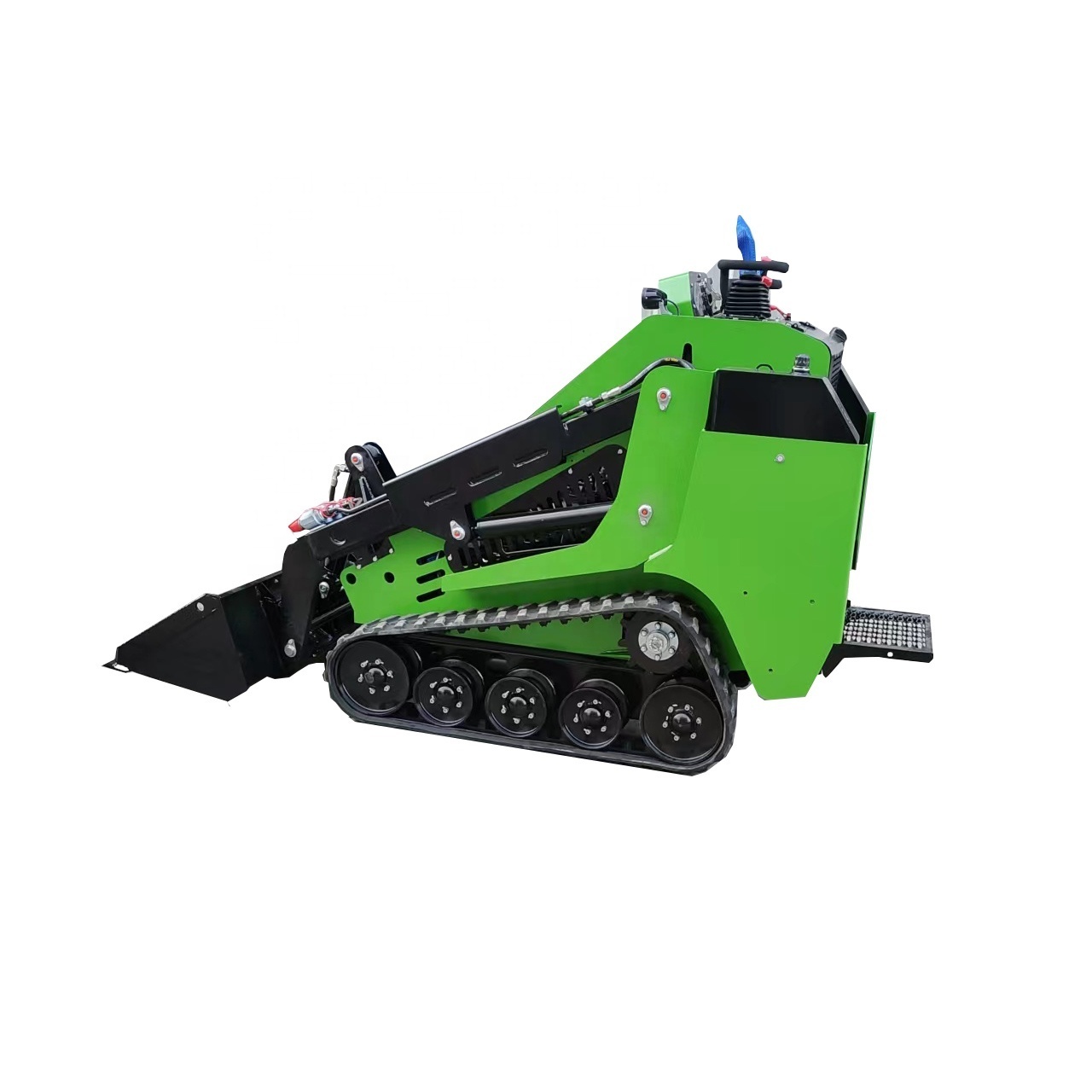

Mini skid steer loader attachment 4 in 1 bucket forestry mulcher easy to operate
Details Images
1.Simple operation, easy to use and high efficiency.
1.Walk left and right; connection data; Separate control.
2.Higher efficiency and faster speed.
1.High quality, easy maintenance, and long service life.
2.Adopting high-tech, low fuel consumption, and strong power.
1.Upgraded and thickened, slip resistant and durable.
2.Strong traction and climbing ability.
Specification
|
Item
|
Metric
|
Inch
|
|
|
Max working height
|
2420 mm
|
95.3 inch
|
|
|
Max pin height
|
2099 mm
|
82.7 inch
|
|
|
Max dump height
|
1617 mm
|
63.7 inch
|
|
|
The highest point discharge distance
|
615 mm
|
24.2 inch
|
|
|
Bucket swing angle
|
79°
|
79°
|
|
|
Bucket unloading angle
|
36°
|
36°
|
|
|
Opening-closing angle
|
43°
|
43°
|
|
|
Angle of departure
|
30°
|
30°
|
|
|
Total height
|
1607 mm
|
63.3 inch
|
|
|
The height from the ground
|
300 mm
|
11.8 inch
|
|
|
Wheelbase
|
1065 mm
|
41.9 inch
|
|
|
No bucket length
|
2200 mm
|
86.6 inch
|
|
|
Total width
|
1033 mm
|
40.7 inch
|
|
|
Bucket width
|
1140 mm
|
44.9inch
|
|
|
Total length（L）（with bucket）
|
2752 mm
|
108.4 inch
|
|
|
Turning radius (F)
|
2198 mm
|
86.5 inch
|
|
|
Engine
|
Model
|
KUBOTA D1105
PERKINS 403J-11 |
|
|
|
Rated power
|
18.2KW/18.4KW(25HP)
|
|
|
|
Rotating speed（rpm）
|
3000
|
|
|
Noise（Db）
|
|
≤95
|
|
|
Hydraulic System |
Hydraulic pressure
|
20 （Mpa）
|
|
|
|
|
Raise 3.89
|
|
|
|
|
Dump 1.6
|
|
|
|
|
Lower 3.35
|
|
|
Performance parameters
|
Metric
|
inch
|
|
|
Load weight (kg)
|
300 Kg
|
667 Lb
|
|
|
Bucket capacity
|
0.14 m3
|
4.95 ft3
|
|
|
Max lifting power
|
1258Kg
|
2795.6 Lb
|
|
|
speed
|
0-8Km/h
|
0-4.972mlie/h
|
|
|
Operating weight
|
1775kg |
3944Lb |
|
|
Machine weight
|
1450kg
|
3208Lb
|
|
|
Main pump
|
|
Qty: 2
|
|
|
Flow of main pump
|
|
24.5*2L/min
|
|
|
Flow of accessories pump
|
|
19.44L/min
|
|
|
Accessories pump
|
|
Qty: 1
|
|
|
Valve
|
|
Qty :4
|
|
Attachments
Recommend Products
Packing & Delivery
Why Choose Us
We have 19 years of experience in machining and manufacturing. Furthermore, our machinery equipment is certified with CE, EPA, and Euro 5, meeting international standards and regulations.
*2-year warranty. Engine enjoys 2 years of International warranty service.
* 24-hour technical support.
* Supply High-Quality types of machinery for You At a Reasonable Price.
* Accept Your Customization.
About US
Shandong Taian Daiding Machinery Manufacturing Co., Ltd. is located in the foot of MountTai, the first of the five Mountains, is a professional R & D and manufacture of small construction machinery company. With slip-loader and mini slip-loader as the company's leading products, with special slip-loader research and development and production and export as the company's business development direction, and constantly expand the company's products and business scope.
Adhering to the principle of "carefully manufacturing high-quality products, sincere service to customers", the company actively adopts advanced production technology at home and abroad, the use of advanced production equipment, the implementation of advanced management experience to produce a variety of small construction machinery. Beautiful appearance, reliable quality, comfortable and convenient operation. The company's products are exported to the United States, Canada, Australia, Argentina, Russia and other countries and regions, and have been widely recognized and trusted by customers.
The company strictly in accordance with the ISO9001 quality management system certification and ISO14000 environmental management system certification as the basis, the production of mechanical engine emissions have reached the Euro II or Euro III standards. Warmly welcome the majority of business calls and letters to negotiate business. All employees of the factory are looking forward to sincere cooperation with our customers, and jointly seek greater development of both sides!
