Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Model Number:
-
QYC
-
Min Height:
-
490mm
-
Rated tensioning power:
-
270 KN
-
Rated oil pressure:
-
63MPa
-
Material:
-
alloy steel, casting iron
-
In stock:
-
yes
-
Certification:
-
ISO CE,CE
-
Color:
-
customizable
-
Application:
-
Prestressing Engineering
Quick Details
-
Warranty:
-
2 years, 2 Years
-
Type:
-
Hydraulic Jack
-
Max Height:
-
690mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Model Number:
-
QYC
-
Min Height:
-
490mm
-
Rated tensioning power:
-
270 KN
-
Rated oil pressure:
-
63MPa
-
Material:
-
alloy steel, casting iron
-
In stock:
-
yes
-
Certification:
-
ISO CE,CE
-
Color:
-
customizable
-
Application:
-
Prestressing Engineering
Products Description

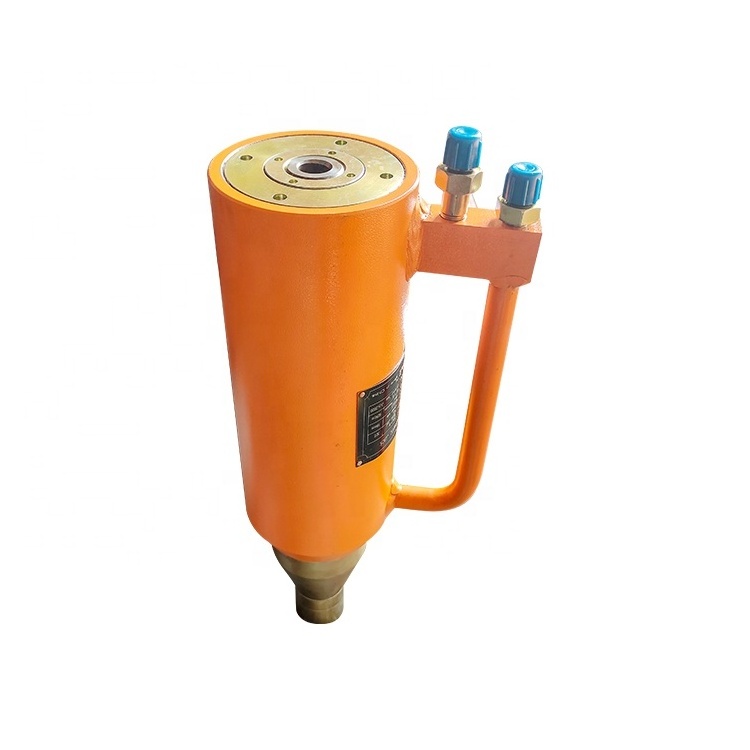

QYC Series Prestressing Steel Strand Front-end Jack
1. Used for single strand tensioning or stressing multi strands one by one.
2. Applied to high strength steel stranded wires of various sizes.
3. Suitable for stressing mono strands, the specification is Φ15.24 and Φ12.7 .
2. Applied to high strength steel stranded wires of various sizes.
3. Suitable for stressing mono strands, the specification is Φ15.24 and Φ12.7 .
4.
Front-end types of hydraulic jack matched with prestressed anchorage, it is widespread used in the construction:
Bridge and buildings projects.
Railway and subway construction.
Water conservancy and hydropower engineering.
Bridge and buildings projects.
Railway and subway construction.
Water conservancy and hydropower engineering.
|
Model
|
Tonnage
|
Tension force
|
Stroke
|
Central diameter
|
Rated oil pressure
|
Number of max. Tension strands
|
Pc strand
|
|
QYC250
|
25T
|
250KN
|
200mm
|
Φ19mm
|
63Mpa
|
Single strand
|
12.7mm
Or
15.24mm
|
|
QYC300
|
30T
|
300KN
|
|
Φ19mm
|
|
|
|
|
QYC400
|
40T
|
400KN
|
|
Φ30mm
|
|
|
|
The standard stroke is 200mm, if there are specific requirements, we also can customize it for you.
Features of QYC Series Prestressing Steel Strand Front-end Jack
1. Saving a lot of prestressed pc strands and easy to operate.
2. Special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process to improve the life of seal.
3. Resigned with high strength steel.
4. Perfect performance and convenience of using and repairing.
5. Safer, faster and more efficient in the operation.
2. Special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process to improve the life of seal.
3. Resigned with high strength steel.
4. Perfect performance and convenience of using and repairing.
5. Safer, faster and more efficient in the operation.
Application
1. Used in pre-tension or post-tension for concrete constructions.
2. Bridge construction, buildings and channel constructions.
3. Highway and railway constructions.
2. Bridge construction, buildings and channel constructions.
3. Highway and railway constructions.
Related Product
|
Model
|
Tonnage
ton
|
Tension Force
KN
|
Stroke
mm
|
Central Diameter
mm
|
Tension area
mm2
|
Rated Oil Pressure
Mpa
|
Numebr Of Max. Tension Strands
|
|
YDC650
|
65
|
650
|
200
|
Φ60
|
12638
|
51
|
3 Strands
|
|
YDC1100
|
110
|
1100
|
200
|
Φ80
|
20488
|
54
|
5 Strands
|
|
YDC1500
|
150
|
1500
|
200
|
Φ90
|
30242
|
50
|
7 Strands
|
|
YDC2000
|
200
|
2000
|
200
|
Φ114
|
35796
|
56
|
9 Strands
|
|
YDC2500
|
250
|
2500
|
200
|
Φ128
|
48356
|
52
|
12 Strands
|
|
YDC3000
|
300
|
3000
|
200
|
Φ142
|
57796
|
52
|
14 Strands
|
|
YDC3500
|
350
|
3500
|
200
|
Φ158
|
70765
|
49
|
17 Strands
|
|
YDC4000
|
400
|
4000
|
200
|
Φ158
|
76302
|
53
|
19 Strands
|
|
YDC4600
|
460
|
4600
|
200
|
Φ190
|
87606
|
53
|
22 Strands
|
|
YDC5000
|
500
|
5000
|
200
|
Φ193
|
93965
|
53
|
24 Strands
|
|
YDC5600
|
560
|
5600
|
200
|
Φ193
|
107156
|
52
|
27 Strands
|
|
YDC6500
|
650
|
6500
|
200
|
Φ205
|
124580
|
52
|
31 Strands
|
1. There are available jacks in stock if tonnage is under 560 tons.
2. It need to be customized if tonnage is over 650 tons.
3. Standard stoke is 200mm, if there are specific requirement, it need to be customized.
