Quick Details
-
Table Travel (Y) (mm):
-
550 mm
-
Spindle Taper:
-
BT40
-
Dimension(L*W*H):
-
2900x2400x2750mm
-
Weight (T):
-
6.5 T
-
Table Travel (Z) (mm):
-
550 mm
-
Positioning Accuracy (mm):
-
0.075 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
1 - 6000 mm/min
-
Rapid Feed Speed(m/min):
-
10
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
220v 380v 415v
-
Warranty of core components:
-
13 months
-
Name:
-
VMC855 vertical cnc milling machine center with price
-
Model:
-
VMC855
-
Table size:
-
800*350
-
Table maximum load:
-
600kg
-
X/Y/Z axis travel:
-
850*550*550
-
Max.tool weight:
-
8kg
-
Max. tool length:
-
250/350
-
Machine dimension:
-
2900*2400*2750
-
Machine weight:
-
6500kg
-
Machine Type:
-
CNC Vertical Machining Center
Quick Details
-
Table Size (mm):
-
1000x550mm
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
850 mm
-
Table Travel (Y) (mm):
-
550 mm
-
Spindle Taper:
-
BT40
-
Dimension(L*W*H):
-
2900x2400x2750mm
-
Weight (T):
-
6.5 T
-
Table Travel (Z) (mm):
-
550 mm
-
Positioning Accuracy (mm):
-
0.075 mm
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
7.5
-
Max. Table Load(kg):
-
600 kg
-
Feed Speed(mm/min):
-
1 - 6000 mm/min
-
Rapid Feed Speed(m/min):
-
10
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
220v 380v 415v
-
Warranty of core components:
-
13 months
-
Name:
-
VMC855 vertical cnc milling machine center with price
-
Model:
-
VMC855
-
Table size:
-
800*350
-
Table maximum load:
-
600kg
-
X/Y/Z axis travel:
-
850*550*550
-
Max.tool weight:
-
8kg
-
Max. tool length:
-
250/350
-
Machine dimension:
-
2900*2400*2750
-
Machine weight:
-
6500kg
-
Machine Type:
-
CNC Vertical Machining Center

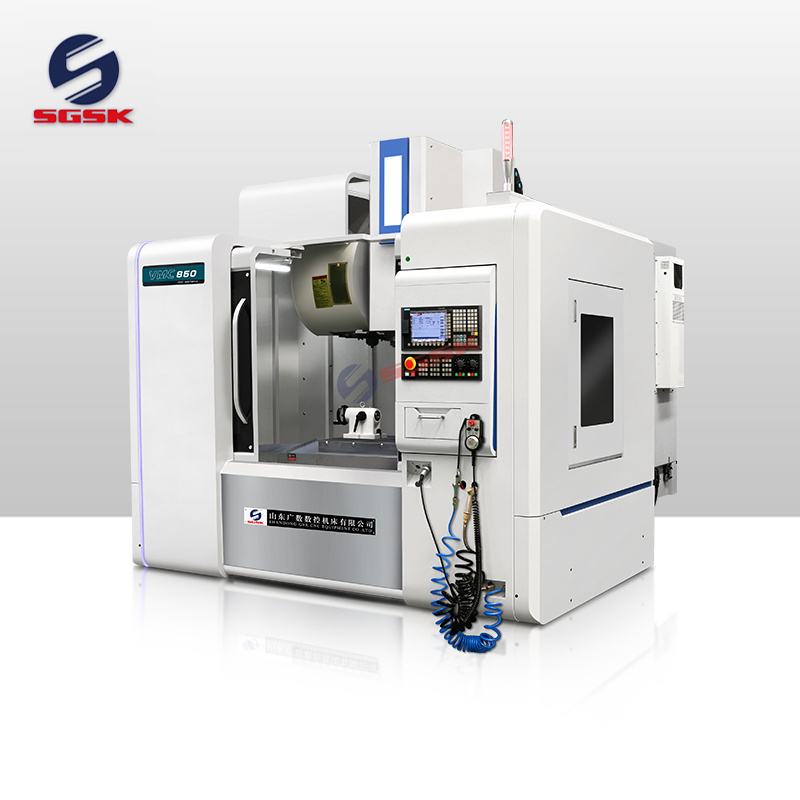

VMC machine center VMC855 cnc milling machine for metal 5 axis
Products Description
Details Display
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical parameters:
|
specifications
|
unit
|
VMC855
|
|
Table size
|
mm
|
1000x550
|
|
X axis travel
|
mm
|
850
|
|
Y axis travel
|
mm
|
550
|
|
Z axis travel
|
mm
|
550
|
|
Distance between spindle center and column surface
|
mm
|
632
|
|
Distance between spindle nose and table surface
|
mm
|
110-660
|
|
T slot
|
|
3-18*100
|
|
Spindle taper
|
mm
|
BT40
|
|
Max. spindle speed
|
r/min
|
8000(10000 optional)
|
|
Main motor power
|
kw
|
7.5
|
|
X/Y/Z axis servo motor torque
|
N.M
|
15/15/18
|
|
X/Y/Z motor connection
|
|
direct
|
|
X/Y/Z guide rail form
|
|
3 axis linear guide rail
|
|
Max.table load
|
kg
|
600
|
|
Automatic tools changer
|
|
16 Armless type(optional:24 arm type)
|
|
Max.tool weight
|
kg
|
8
|
|
Max. tool length
|
mm
|
250/350
|
|
Max. tool diameter
|
mm
|
100(Adjacent)/150(Apart)
|
|
X/Y/Z axis rapid traverse
|
M/min
|
24/24/20
|
|
Cutting feed speed
|
M/min
|
10
|
|
Position accuracy
|
mm
|
±0.005
|
|
Repeat positioning accuracy
|
mm
|
±0.003
|
|
Machine dimension
|
mm
|
2900x2400x2750
|
|
Machine weight
|
kg
|
6500
|
