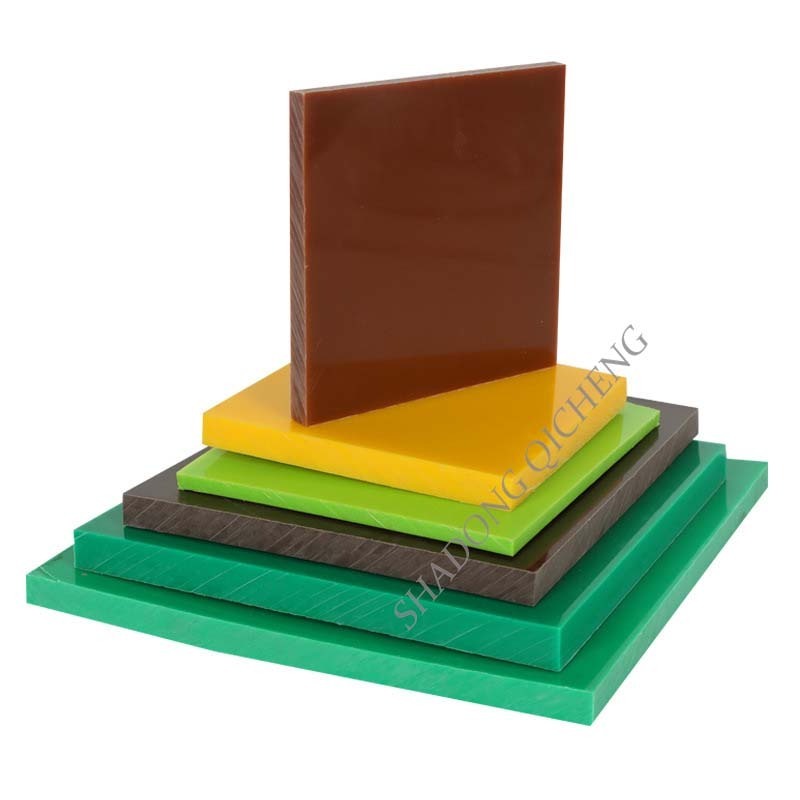

High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet
High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet

High Quality Plastic Engineering Mould Product, Custom Virgin Uhmwpe 1000 Block/Uhmwpe Board Plate Hdpe Sheet

FOB Reference Price: Get Latest Price
≥2 Pieces
US $4.5
≥50 Pieces
US $4
≥100 Pieces
US $3.3
≥50000 Pieces
US $2.2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
ODM&OEM
Thickness:
1-40mm
Size:
1220mm * 2440mm
Product name:
High Density Polyethylene Plastic HDPE Engineering Sheets
Color:
White,black, red,blue,green
Application:
paper industry,port & dock, construction, sports industry
Feature:
Durable;hdpe sheet
Certificate:
ISO 9001/14001
Surface:
Smooth;hdpe sheet
Density:
0.93-0.97g/cm3;hdpe sheet
Type:
Engineering Plastic . HDPE Board
Property:
no-toxic;hdpe sheet
Water absorption:
0.01%;hdpe sheet

Quick Details

Processing Service:
Cutting, Moulding, customized
Place of Origin:
Shandong, China
Brand Name:
Qicheng
Model Number:
ODM&OEM
Thickness:
1-40mm
Size:
1220mm * 2440mm
Product name:
High Density Polyethylene Plastic HDPE Engineering Sheets
Color:
White,black, red,blue,green
Application:
paper industry,port & dock, construction, sports industry
Feature:
Durable;hdpe sheet
Certificate:
ISO 9001/14001
Surface:
Smooth;hdpe sheet
Density:
0.93-0.97g/cm3;hdpe sheet
Type:
Engineering Plastic . HDPE Board
Property:
no-toxic;hdpe sheet
Water absorption:
0.01%;hdpe sheet
Products Description
HDPE SHEET We offer excellent sliding properties and abrasion/wear resistance due to its low coefficient of friction.  HDPE Sheet, also named High Density Polyethylene sheet is very tough and impact resistant, even at
low temprature,  I t is lightweight, easy to weld but difficult to bond.
Two different processing way: Compression Molding or Extrusion molding according to different thickness and load capacity.
Features
Features:
--6 times more wear resistant than steel -
-Anti-Weather & Aging
--Self-lubricating, low coefficient of friction
--Excellent chemical & corrosion resistant
--superior impact resistant, Noise
-- absorption, Vibration-absorption
--Temperature : -2600C ~ +800C; no become fragile even under -1800C
--High tensile Strength
--Non-Toxic and smell
--Flame Retardant; Lower water absorption
--Excellent electrical properties
--Good performance in resisting environment stress crack, 200 times of ordinary PE
--No adhesion
--Light weight and easier to handle and fix
--Cost efficient; Resulting in low energy consumption
--Does not rot, split or crack; 100% recyclable
--Great liner material for industrial material handling applications
Product Paramenters
Item
Units
ASTM test
HDPE
UHMW-PE
Tensile strength
PSI
D-638
4000
3100
Flexural modulus
PSI
D-790
200000
110000
Notched impact
Ft-lbs/in of notch
D-256
1.3
18
Heat deflection temperature at 66psi
D-648
172
-
Maximum continuous service temperature in air
-
180
Water absorotion
%
D-570
0.10
slight
Coeff icient of liner thermal expansion
In/in℉10-5
D-696
7
11.1
Thickness:0.7mm - 25mm Cleat Height: 5 -7mm Texture type on surface: can be customized as your demand Loading Capacity: 50-300 tons according to different thickness and materials.
Property
Standard
Unit
UHMWPE
Physical Properties
Density
GB1033-86
g/cm3
0.93
Water Absorption
GB1034-86
%
< 0.01
Max Working Temperature
-
°C
90
Minimum Working Temperature
-
°C
-269
Mechanical Properties
-
-
-
Tensile Strength
GB1040-79
MPa
21
Ultimate Tensile Strength
GB1040-79
MPa
38
Elongation
GB1040-79
%
12
Break Elongation
GB1040-79
%
340
E-Modulus
GB1040-79
MPa
820
Notched Impact Strength
GB1843-80
KJ/m2
ok
Bending Strength
GB9341-88
MPa
26
Bending E-Modulus
GB9341--88
MPa
760
Compression Strength (deformation 10%)
GB1041-79
MPa
27
Compression E-Modulus
GB1041-79
MPa
550
Shear Strength
GB1041-79
MPa
33
Hadrness
GB2411-80
Shore D
65
Static Coefficient of Friction
GB10006-88
-
0.07-0.15
Dynamic Coefficient Friction
GB10006-88
-
0.07-0.11
Thermal Properties
-
-
-
Coefficient of Linear Expansion
GB1036-89
°C-1
1.5×10-4
Coefficient of Heat Conductivity ( 23 °C )
GB3399-82
Cal/cm sec °C
8.5×10-4
Special Heat ( 23 °C)
GB3399-82
Cal/g°C
0.44
Electrical Properties
-
-
-
Volume Resistivity
GB1410-78
Ohm cm
>1015
Surface Resistivity
GB1410-78
Ohm
>1015
Dielectric Constant ( 1MHZ )
GB1409-78
-
3
Dielectric Strength
GB1408-78
Kv/mm
70
Production Process
