Quick Details
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF10
-
Max. Current:
-
26A
-
Max. Working Pressure:
-
190PSI
-
Media:
-
Air
-
Contact:
-
NC
-
Application:
-
Air compressor
-
Connection:
-
3/8NPT, 1/4NPT, R3/8, R1/4, G1/4 and G3/8
-
Rated voltage:
-
220/240V
-
Material:
-
Plastic, metal
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF10
-
Max. Current:
-
26A
-
Max. Working Pressure:
-
190PSI
-
Media:
-
Air
-
Contact:
-
NC
-
Application:
-
Air compressor
-
Connection:
-
3/8NPT, 1/4NPT, R3/8, R1/4, G1/4 and G3/8
-
Rated voltage:
-
220/240V
-
Material:
-
Plastic, metal
Products Description

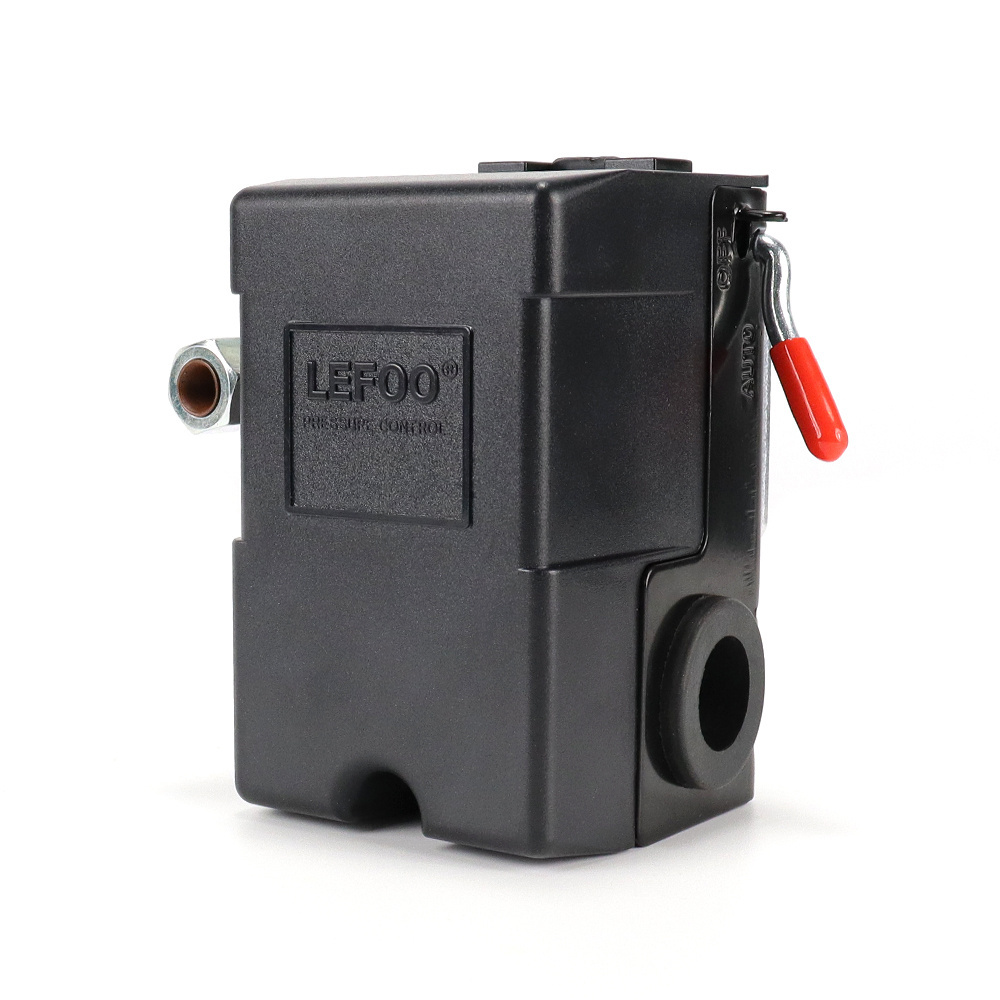

The LF10 pressure switches are used to regulate the tank pressure between two preset values on small (up to 200psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.
|
Number
|
Connection Type
|
|
Connection
Size
|
Unloader
Valve Type
|
Unloader Valve
Connection
|
Handle
Type
|
|
|
0
|
/
|
/
|
/
|
Without
|
Without
|
Without
|
|
|
1
|
single port
|
B
female
|
C
1/4NPT
|
D
vertical
|
Φ6.1mm
|
long and bend
|
|
|
2
|
/
|
male
|
3/8NPT
|
horizontal
|
E
Φ6.4mm
|
long and straight
|
|
|
3
|
/
|
/
|
R1/4
|
/
|
Φ6.5mm
|
F
short and bend
|
|
|
4
|
A
four ports
|
/
|
R3/8
|
/
|
/
|
short and straight
|
|
|
5
|
/
|
/
|
G1/4
|
/
|
/
|
/
|
|
|
6
|
/
|
/
|
G3/8
|
/
|
/
|
/
|
|
Specification
|
Model
|
Media
|
Operating
Pressure Range
|
Factory
Setting
|
Differential
|
Electrical
Rating
|
Contact
Arrangement
|
Connection
|
|
LF10
|
Air
|
25-100psi
|
55-80psi
|
20-35psi
|
20A/120VAC
12A/240VAC
|
NC
|
1/4,3/8Male or
Female NPT
(1Port)
1/4 Female NPT
(4Ports)
|
|
|
Air
|
35-150psi
|
85-115psi
|
30-40psi
|
|
|
|
|
|
Air
|
50-175psi
|
110-150psi
|
35-55psi
|
|
|
|
|
|
Air
|
70-190psi
|
130-175psi
|
40-55psi
|
|
|
|
|
LF10A
|
Air
|
25-100psi
|
55-80psi
|
20-35psi
|
26A/120VAC
26A/240VAC
|
NC
|
1/4,3/8Male or
Female NPT
(1Port)
1/4 Female NPT
(4Ports)
|
|
|
Air
|
35-150psi
|
85-115psi
|
30-40psi
|
|
|
|
|
|
Air
|
50-175psi
|
110-150psi
|
35-55psi
|
|
|
|
|
|
Air
|
70-190ps
|
130-175psi
|
40-55psi
|
|
|
|
Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi
Other connections are available on request
