Quick Details
-
Brand Name:
-
Dixsen
-
Model Number:
-
DW26-10
-
Max. Current:
-
10~160A
-
Mechanical Life:
-
100,000times
-
Contact:
-
Sliver point
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Dixsen
-
Model Number:
-
DW26-10
-
Max. Current:
-
10~160A
-
Mechanical Life:
-
100,000times
-
Contact:
-
Sliver point
-
Certification:
-
CE

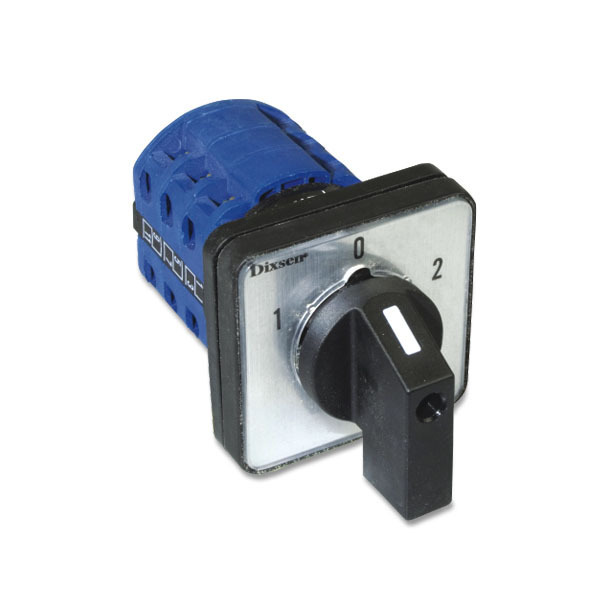

DIXSEN 10a 120v 7 position electrical changeover rotary cam switch
The principle applications of Cam Operated Rotary Switches are for making, breaking and isolation of power circuits and switching the circuits. Cam switches are suitable for AC as well as DC application used for virtually all purposes. Such as motor control, panel meter switching, control and distribution panel, etc.
| Ref |
DW26-20 |
|
Rated thermal Current(A) |
20A |
|
Rated Insulating Voltage(V) |
690V |
| Rated Working Voltage(V) | 240V, 440V |
| Rated Working Current(A) | |
| AC-21A AC-22A | 5A |
| AC-23A | 3.5A |
| AC-2 | 11 A |
| AC-3 | 15 A |
| AC-4 | 15 A |
| AC-15 | 20A |
|
|
|
| Rated Control Power(KW) | |
| AC-4 | 0.55KW |
| AC-3 | 2.2KW |
| AC-5 | 3.7KW |
| AC-23A | 3KW |
Note: At the Rated control Power blank, the AC-23A, AC-3, AC-4 means the power in three phase three pole, and the denominator means the power under single phase two pole.
* Finger-protected respectively hand-protected
