Quick Details
-
Product name:
-

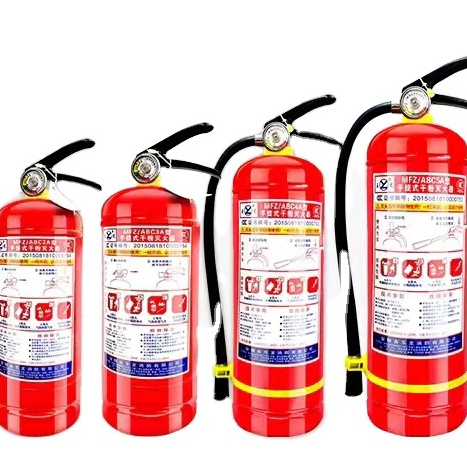

Portable Fire Extinguisher
-
Color:
-
Red Painting
-
Material:
-
Stainless Steel SUS304
-
Name:
-
Fire Extingusher
-
Type:
-
Portabel
-
Function:
-
Stop Fire Quickly
-
Working pressure:
-
12bar
-
Packing:
-
Standard Packing
-
Test pressure:
-
25 Bar
-
Cylinder Material:
-
carton steel and stainless steel
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bohai
-
Model Number:
-
1-5kg
-
Product name:
-
Portable Fire Extinguisher
-
Color:
-
Red Painting
-
Material:
-
Stainless Steel SUS304
-
Name:
-
Fire Extingusher
-
Type:
-
Portabel
-
Function:
-
Stop Fire Quickly
-
Working pressure:
-
12bar
-
Packing:
-
Standard Packing
-
Test pressure:
-
25 Bar
-
Cylinder Material:
-
carton steel and stainless steel
|
Capacity
|
4kg
|
5kg
|
8kg
|
|
Out-Diameter(mm)
|
130
|
140
|
163
|
|
Cylinder Height(mm)
|
415
|
435
|
495
|
|
Volume(L)
|
4.7
|
6.2
|
9.4
|
|
Weight of empty cylinder
|
1.83
|
2.24
|
3.0
|
|
Full Weight(kg)
|
6.3
|
7.7
|
11.5
|
|
Temperature Range(℃)
|
-20℃~
+55℃
|
-20℃~
+55℃
|
-20℃~
+55℃
|
|
Max working pressure(bar)
|
12BAR
|
12BAR
|
12BAR
|
|
Test Pressure(bar)
|
25BAR
|
25BAR
|
25BAR
|
|
Min Wall-thickness(mm)
|
1.13
|
1.16
|
1.24
|
|
Dry Powder Filled Weight(kg)
|
4
|
5
|
8
|
1.material of Cylinder: carton steel and stainless steel
2.Usage: use in factories, offices, schools, hotels, oil pump houses, filling stations, chemical paint houses and combustible place
2.Usage: use in factories, offices, schools, hotels, oil pump houses, filling stations, chemical paint houses and combustible place
3.Volumes:
a) ABC dry powder: 1 - 8kg
d) Trolley type fire extinguisher: 35kg
4. Caution: protect from sunlight and do not expose to temperature over 50+
a) ABC dry powder: 1 - 8kg
d) Trolley type fire extinguisher: 35kg
4. Caution: protect from sunlight and do not expose to temperature over 50+
5.How to use:
( 1) Pull the pin.
( 1) Pull the pin.
(2) Aim the nozzle or hose at the base of the fire from the recommended safe distance.
(3) Squeeze the operating lever to discharge the fire extinguisher agent.
Starting at the recommended distance, Sweep the nozzle or hose from the fire diminishes. Watch the area in case of re-ignition.
6.Place of Origin:Shandong,China
7.Brand Name: BOHAI
8.Model Number:MFCZ --- 1kg, 2kg, 3kg, 4kg, 5kg, 8kg
9.Agent: Dry Powder ABC
10.Working Pressure:12Bar
11.Test Pressure:25Bar
12.Color: Red RAL3000
13.Type: Portable
14.Model: Class A, B, C
15.Standard: CCC
16.Material: Stainless Steel SUS304, SS316
Starting at the recommended distance, Sweep the nozzle or hose from the fire diminishes. Watch the area in case of re-ignition.
6.Place of Origin:Shandong,China
7.Brand Name: BOHAI
8.Model Number:MFCZ --- 1kg, 2kg, 3kg, 4kg, 5kg, 8kg
9.Agent: Dry Powder ABC
10.Working Pressure:12Bar
11.Test Pressure:25Bar
12.Color: Red RAL3000
13.Type: Portable
14.Model: Class A, B, C
15.Standard: CCC
16.Material: Stainless Steel SUS304, SS316
