Quick Details
-
Weight (KG):
-
3700 KG
-
Motor Power (kW):
-
5.5 kW
-
Product name:
-

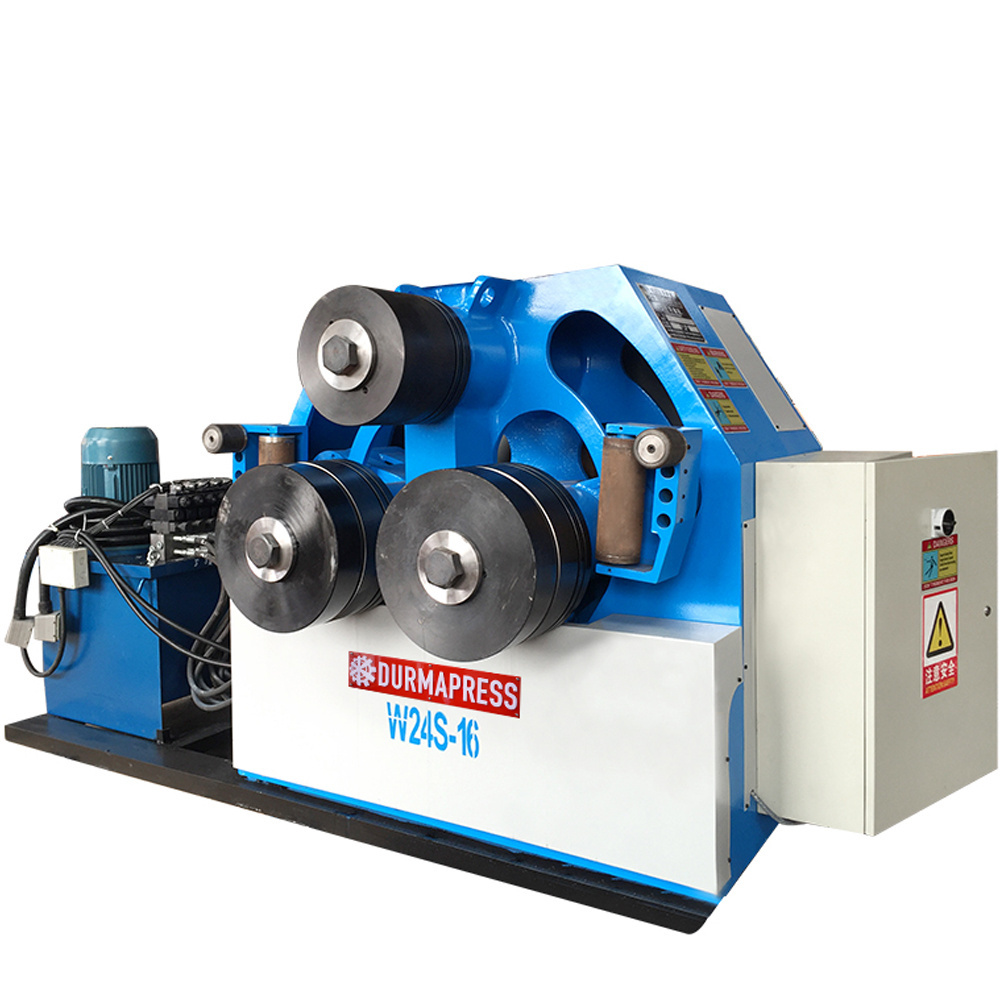

Profile Bending Machine
-
Usage:
-
Pipe Tube Bending
-
Application:
-
Tube Bending
-
Keyword:
-
Tube Pipe Bending Machine
-
Raw Material:
-
Sheet
-
Color:
-
Support Customized
-
Extra Services:
-
Machining
-
Voltage:
-
220V/380V/415V/440V/customized
-
Advantage:
-
High Accurary
-
Dimension:
-
1400X800X1600(mm)
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
durmapress
-
Year:
-
2022
-
Weight (KG):
-
3700 KG
-
Motor Power (kW):
-
5.5 kW
-
Product name:
-
Profile Bending Machine
-
Usage:
-
Pipe Tube Bending
-
Application:
-
Tube Bending
-
Keyword:
-
Tube Pipe Bending Machine
-
Raw Material:
-
Sheet
-
Color:
-
Support Customized
-
Extra Services:
-
Machining
-
Voltage:
-
220V/380V/415V/440V/customized
-
Advantage:
-
High Accurary
-
Dimension:
-
1400X800X1600(mm)
Product Description
|
Model&spec.
|
|
W24S-6
|
W24S-16
|
W24S-30
|
W24S-45
|
W24S-75
|
W24S-100
|
W24S-140
|
|
|
Max bending modulus of section (cm3)
|
|
6
|
16
|
30
|
45
|
75
|
100
|
140
|
|
|
Bending speed(m/min)
|
|
5.5
|
5.5
|
5.5
|
5.5
|
5
|
5
|
5
|
|
|
yield limit of material (MPa)
|
|
245
|
245
|
245
|
245
|
245
|
245
|
245
|
|
|
inward bending of angle steel
|
The max cross section (mm)
|
50×5
|
80×8
|
90×10
|
100×10
|
120×12
|
140×16
|
150×16
|
|
|
|
The min bending diameter (mm)
|
800
|
1000
|
1200
|
1500
|
2000
|
2500
|
2400
|
|
|
|
The min cross section (mm)
|
20×3
|
30×3
|
35×3
|
36×5
|
38×4
|
40×5
|
50×5
|
|
|
|
The min bending diameter (mm)
|
400
|
550
|
560
|
600
|
600
|
720
|
1000
|
|
|
outward bending of angle steel
|
The max cross section (mm)
|
50×5
|
80×8
|
90×10
|
100×10
|
120×12
|
140×16
|
150×16
|
|
|
|
The min bending diameter (mm)
|
800
|
1000
|
1100
|
1300
|
1600
|
1800
|
2200
|
|
|
|
The min cross section (mm)
|
20×3
|
30×3
|
35×3
|
36×5
|
38×4
|
45×5
|
50×5
|
|
|
|
The min bending diameter (mm)
|
400
|
550
|
500
|
600
|
700
|
760
|
400
|
|
|
outward bending of channel steel
|
channel steel model
|
8
|
12
|
16
|
20
|
25
|
28
|
30
|
|
|
|
The min bending diameter (mm)
|
600
|
800
|
800
|
1000
|
1100
|
1100
|
1200
|
|
|
inward bending of channel steel
|
channel steel model
|
8
|
12
|
16
|
20
|
25
|
28
|
30
|
|
|
|
The min bending radius (mm)
|
700
|
900
|
1000
|
1150
|
1600
|
1700
|
1700
|
|
|
plane bending of flat steel
|
The max cross section (mm)
|
100×18
|
150×25
|
180×25
|
200×30
|
220×40
|
250×40
|
280×50
|
|
|
|
The min bending diameter (mm)
|
600
|
700
|
800
|
900
|
1000
|
1200
|
1300
|
|
|
vertical bending of flat steel
|
The max cross section (mm)
|
50×12
|
75×16
|
90×20
|
100×25
|
110×40
|
120×40
|
150×40
|
|
|
|
The min bending diameter (mm)
|
500
|
760
|
800
|
1000
|
1100
|
1300
|
1500
|
|
|
bending of round pipe
|
The max cross section (mm)
|
42×4
|
76×4.5
|
89×5
|
89×8
|
114×5
|
159×5
|
168×6
|
|
|
|
The min bending diameter (mm)
|
500
|
750
|
900
|
900
|
1200
|
2000
|
2000
|
|
|
bending of round bar
|
The max cross section (mm)
|
38
|
52
|
62
|
75
|
85
|
90
|
100
|
|
|
|
The min bending diameter (mm)
|
450
|
600
|
600
|
800
|
100
|
1100
|
1200
|
|
|
bending of square pipe
|
The max cross section (mm)
|
45×3
|
60×4
|
70×4
|
80×6
|
90×8
|
100×10
|
125×10
|
|
|
|
The min bending diameter (mm)
|
750
|
900
|
1000
|
1200
|
1600
|
2000
|
2500
|
|
