pneumatic systems.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
RWT-100JYN
-
Material:
-
Stainless steel, Stainless steel
-
Size:
-
100
-
Range:
-
0~10bar, customizable
-
Dial size:
-
100mm/4inch
-
Thread connection:
-
All kinds of thread optional
-
Installation option:
-
Bottom/back
-
Feature:
-
Dual pointer. Memory pressure gauge with maximum indicating hand
-
Accuracy:
-
1.6% /2.5%
-
Lens:
-
Glass\PC Glass\Safety Glass
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
N/A
-
Model Number:
-
RWT-100JYN
-
Material:
-
Stainless steel, Stainless steel
-
Size:
-
100
-
Range:
-
0~10bar, customizable
-
Dial size:
-
100mm/4inch
-
Thread connection:
-
All kinds of thread optional
-
Installation option:
-
Bottom/back
-
Feature:
-
Dual pointer. Memory pressure gauge with maximum indicating hand
-
Accuracy:
-
1.6% /2.5%
-
Lens:
-
Glass\PC Glass\Safety Glass

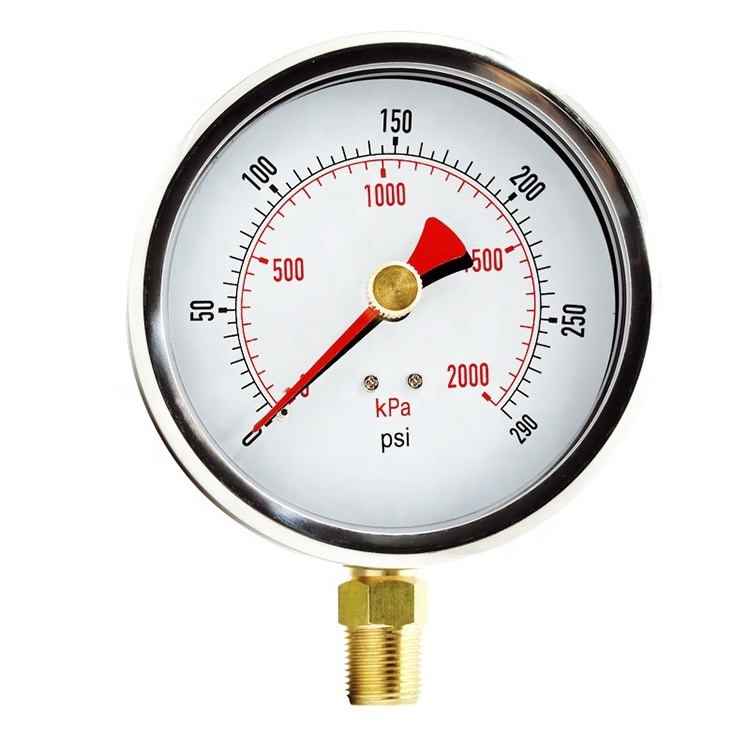

100mm Glycerine Liquid-Filled Industrial Drag Pointer Pressure Gauges with Lazy Hand Peak Pressure Indicator
What kinds of dual pointers pressure gauge are available from us ?
50mm
2 inch
60mm
2.5 inch
100mm
4 inch
Radial, Lower Mounting.
Radial, Lower Mounting.
Radial, Lower Mounting.
Axial , Back Mounting
Axial , Back Mounting
Axial , Back Mounting
|
By Sizes
|
|
50mm
2 inch
|
60mm
2.5 inch
|
100mm
4 inch
|
||
|
Dual Pointers
|
With Tattle-Tale Drag Pointer
|
●
|
●
|
●
|
||
|
|
With Limit Pressure Pointer
|
●
|
●
|
|
||
|
Housing Materials
|
Plastic
|
●
|
●
|
|
||
|
|
Steel Chrome Plated or Steel With Electrophoresis
|
●
|
●
|
●
|
||
|
|
SUS304 Stainless Steel
|
|
●
|
●
|
||
|
Gauge Types
|
Dry Gauge
|
●
|
●
|
●
|
||
|
|
Liquid-Filled Gauge
|
●
|
●
|
●
|
||
|
Mounting Styles
|
Lower Connection
|
●
|
●
|
●
|
||
|
|
Back Connection
|
●
|
●
|
●
|
||
|
Accuracy Grade
|
±2.5%
|
●
|
●
|
●
|
||
|
|
±1.6%
|
●
|
●
|
●
|
||
|
Fitting Thread
|
Brass
|
●
|
●
|
●
|
||
|
|
Stainless Steel
|
|
|
●
|
||
|
|
M10 x 1 / M14 x 1.5 or 1/4 BSP/ NPT
|
●
|
●
|
|
||
|
|
M20 x 1.5 or 1/2 BSP/ NPT
|
|
|
●
|
||
|
|
|
" ● " means the optional item.
|
|
|
||
Where are the maximum pointer pressure gauge commonly used ?
Application
pneumatic systems.
Application
petrochemical, plant construction and low-pressure pneumatic systems.
Application
machine and apparatus construction.
|
Size
|
2.5"/63mm;
|
|
Usage
|
HVAC heating system, steam, hot water, boiler, oil hydraulic fluid lines and other pipelines.
|
|
Pressure range
|
0~4 bar, 0~6 bar, 0~10 bar, 0~16 bar
|
|
Joint thread
|
G1/4-19
|
