Quick Details
-
Model Number:
-
H13X-320P
-
Brand Name:
-
EITOK
-
Item:
-
Check Valve
-
Thread Type:
-
BSP
-
Connection:
-
Thread
-
Size:
-
1/8" -2"
-
Working pressure:
-
32MPa
-
Material:
-
304 stainless steel
-
MOQ:
-
3 Pcs
-
Sample:
-
Available
-
Keyword:
-
Check Valve Hard Seal High Pressure
Quick Details
-
Port Size:
-
1/8"-2"
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hunan
-
Model Number:
-
H13X-320P
-
Brand Name:
-
EITOK
-
Item:
-
Check Valve
-
Thread Type:
-
BSP
-
Connection:
-
Thread
-
Size:
-
1/8" -2"
-
Working pressure:
-
32MPa
-
Material:
-
304 stainless steel
-
MOQ:
-
3 Pcs
-
Sample:
-
Available
-
Keyword:
-
Check Valve Hard Seal High Pressure
Product Description

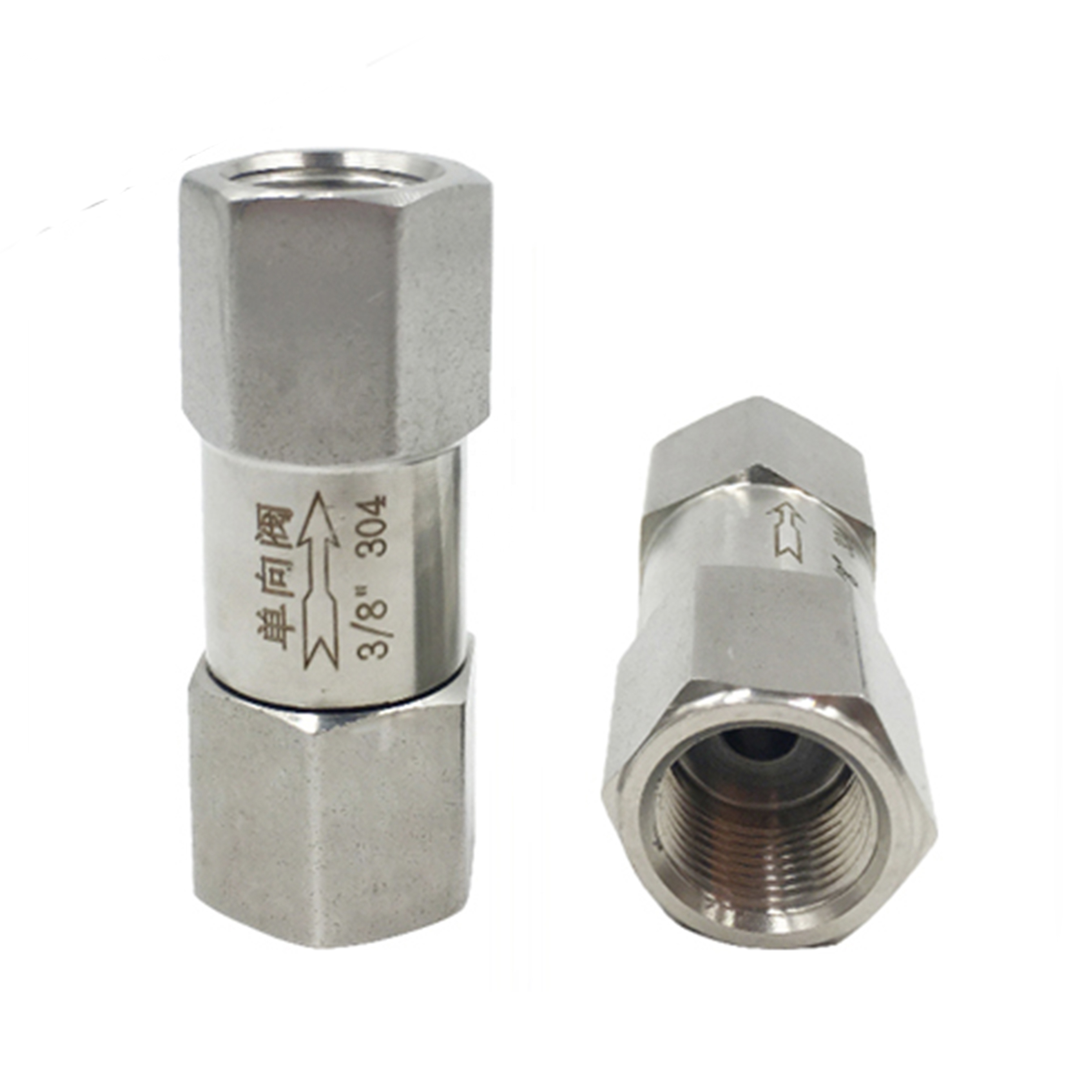

Female Stainless Steel High Pressure Non Return Valve Air Water Aquarium Non-return Swing Valve Vertical Check Valve
|
Item
|
Check Valve
|
|
Specification
|
1/8" -2"
|
|
Material
|
304 stainless steel/ Brass
|
|
Nominal pressure
|
32MPa
|
|
Connection
|
Thread
|
|
Application
|
Water/ oil /gas
|
|
MOQ
|
3 pcs
|
|
Sample
|
Available
|
Product diaplay
Related Products
Installation Instructions
1.
Check valves are usually used to stop the backflow of media.
2. Non-metallic elastic sealed valve, its maximum allowable leakage is zero, metal sealed valve, its maximum allowable leakage is 0.1×DNmm³/s, so qualified metal sealed valve may have a small leakage, therefore, no leakage is required, it is appropriate to choose a soft sealed check valve.
3. The pipe threaded check valve is connected with the pipe thread at the end of the pipe, wherein the internal thread can be cylindrical pipe thread or conical pipe thread, and the external thread must be conical pipe thread. During installation, the hex or octagonal part on the same side of the thread should be wrenched, and the hex or octagonal part on the other end of the check valve should not be wrenched to avoid deformation of the check valve.
4. Nominal pressure of brass check valve: 1.6MPa, metal sealing medium temperature :-20 ° C ~150 ° C, non-metal elastic sealing medium temperature :-20 ° C ~100 ° C, when the check valve is used for saturated steam, saturated steam pressure <0.6MPa.
2. Non-metallic elastic sealed valve, its maximum allowable leakage is zero, metal sealed valve, its maximum allowable leakage is 0.1×DNmm³/s, so qualified metal sealed valve may have a small leakage, therefore, no leakage is required, it is appropriate to choose a soft sealed check valve.
3. The pipe threaded check valve is connected with the pipe thread at the end of the pipe, wherein the internal thread can be cylindrical pipe thread or conical pipe thread, and the external thread must be conical pipe thread. During installation, the hex or octagonal part on the same side of the thread should be wrenched, and the hex or octagonal part on the other end of the check valve should not be wrenched to avoid deformation of the check valve.
4. Nominal pressure of brass check valve: 1.6MPa, metal sealing medium temperature :-20 ° C ~150 ° C, non-metal elastic sealing medium temperature :-20 ° C ~100 ° C, when the check valve is used for saturated steam, saturated steam pressure <0.6MPa.
