Quick Details
-
Voltage:
-
380V
-
Power:
-
3.5KW, 380V Three Phase,220V Single Phase,50Hz, Pls Consu
-
Dimension(L*W*H):
-
2670mm*1160mm*1600mm
-
Weight:
-
1200 kg
-
Name:
-

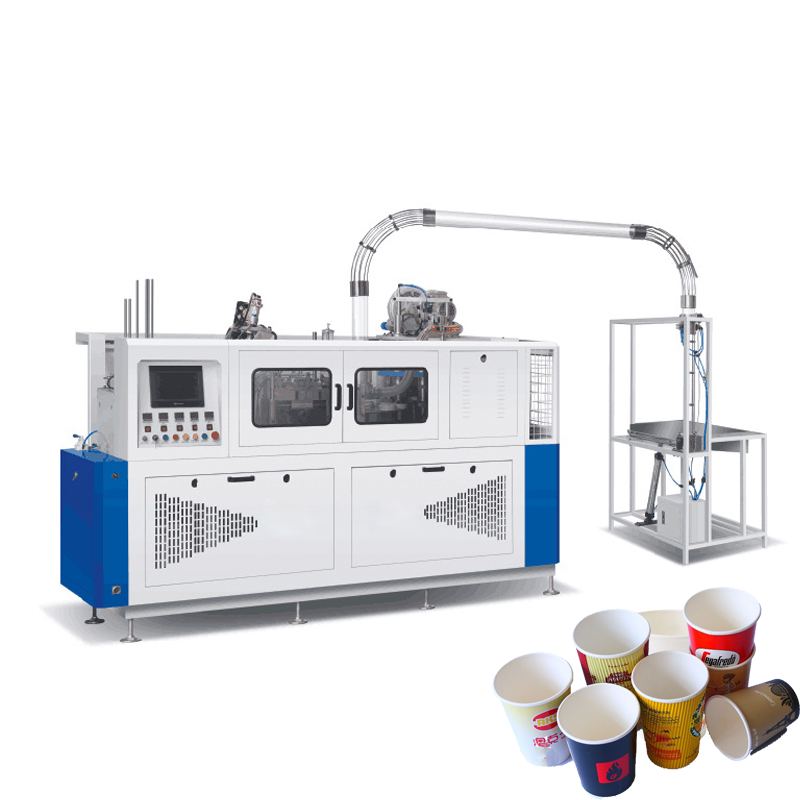

Paper Cup Forming Machine
-
Raw Material:
-
150-400GSM Single/Double PE Coating/Side Paper
-
Speed:
-
40-60pcs/min
-
Key words:
-
Paper cup machine
-
Working Power:
-
3.5KW
-
Usage:
-
Beverage Factory
-
Paper Cup Size:
-
Customized
Quick Details
-
Production Capacity:
-
80 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Betty
-
Voltage:
-
380V
-
Power:
-
3.5KW, 380V Three Phase,220V Single Phase,50Hz, Pls Consu
-
Dimension(L*W*H):
-
2670mm*1160mm*1600mm
-
Weight:
-
1200 kg
-
Name:
-
Paper Cup Forming Machine
-
Raw Material:
-
150-400GSM Single/Double PE Coating/Side Paper
-
Speed:
-
40-60pcs/min
-
Key words:
-
Paper cup machine
-
Working Power:
-
3.5KW
-
Usage:
-
Beverage Factory
-
Paper Cup Size:
-
Customized
Model
|
BT-PCM-X12
|
|
|
Paper Glass Size
|
3 OZ-12 OZ
|
|
|
Raw Material
|
One-side PE (polyethylene) film coated / laminated paper
Ultrasonic machine can be produce single and double pe paper |
|
|
Speed
|
80~90 Pcs/min
|
|
|
Total Weight
|
2500KG
|
|
|
Package Size (L x W x H)
|
2700x1300x1700mm
|
|
|
Working Power
|
3.5KW
|
|
|
Total power
|
6KW
|
|
|
Power Source
|
380V 3-Phase 50Hz(if special,please info us)
|
|
|
Material
|
160~350gsm One-side or Two-side PE (polyethylene) Film Coated Paper
|
|
|
Air requirement
(Buy Comperssor ) |
0.4Mpa(4bar )/Air pressure:0.4Mpa(4bar)
Air out-put:0.6m³/Min |
|
1: Advanced indexing cam open structure .manufacturing precision,ensuring and stability of the machine operation.
2: Swiss import Leiter flameless hot air system, stable performance, high production efficiency.
3: Using high-strength structural profiles.compact machine structure stable.
4: AIl use of standardized parts production,versatility.excellent interchange eability ,casy maintenance of equipment.
5: Using automatic lubrication system ensures high speed operation of the machine for a long time without a break.
6: Intelligent design.PLC automatic control.servo motor,automatic fault alarm.counting. detection.parking
7: Automatic shutdown isolation.
8:we use spray lubrication to add oil,so you only need to use three barrels of oil which is much less than other company
FAQ
1.How to start an order with us ?
1. Inquiry -Email Wechat/whatapp 24 hours available for have your requirements
2. Solution offer - Best quotation based on your production capacity ,invest plan ,budget ect.
3. Customized -High-end customized according your local market requirement.
4. Preparation before placing order -Share us your factory layout ,we will design it the machine space ,air ,power ,electric accordingly ,invite you come to visit our machinery factory or our model customer’s factory to understand details .
5. Confirm the order -With the advanced payment for starting machine prodcution .
2.How to check the quality of the machine you ordered and the guarantee ?
1.Production process -We will show online meeting at our factory working time for machinery procss from the raw material inspection to machine assembly,8 hours running the machine for testing is most important
2.Quality control -Each part is marked with the source code of the supplier, and the real name of each production link is assessed,12 months Warranty,We would express the free replacement parts during the warranty date.
3.Delivery- Packing according to international shipping, railway or air Shipping tracking standard ,Tracking information will be keep updated by our side .
3.How about the Installation and training when the machine arrive your factory ?
1.Installation -Engineer Schedule confirmed 7 days before machinery arrival ,7-10days for installation depend on the machine operation difficulty .
2.Training -Due to virus,buyer cannot dispatch technician to install machine in buyer's factory.But will provide machine operating manual and machine disassemble video for reference.If buyer meet some problems during installation,will have engineer online,but the buyer require to download Wechat apply for a account as other foreign app doesn't work in China.
3.Cost of Installation & Training :You shoud cover our engineer's visa, air tickets,SIM card, hotel, food, and also their salary 80USD one day per person.
1.Feedback - Your sincere feedback is the most effective reference for the continuous improvement of our service Deep cooperation
2.Deep cooperation :We provide a complete set of raw materials matching with the equipment with our experience to save your time and cost .
4.How to build a long-term partnership between us ?
1.Feedback - Your sincere feedback is the most effective reference for the continuous improvement of our service Deep cooperation
2.Deep cooperation :We provide a complete set of raw materials matching with the equipment with our experience to save your time and cost .
