Quick Details
-
Clamping force:
-
0.50~0.78 mega pascal
-
Grinding diameter:
-
18~75(mm)
-
Fineness of ground side:
-
B VIIgrade(The highest domestically)
-
Shaping degree of ground side:
-
Face 96%;Appearance99%(amendable freely)
-
Operation noise:
-
less than 60DB
-
Max linear velocity of grinding wheel:
-
15m/s
-
Humidity:
-
20~80%RH
-
Appearance size:
-
710*430*615(mm)
-
Ambient operation temperature:
-
5°C~40°C
-
Electric power:
-
350W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sunnymed
-
Model Number:
-
SY-V041
-
Clamping force:
-
0.50~0.78 mega pascal
-
Grinding diameter:
-
18~75(mm)
-
Fineness of ground side:
-
B VIIgrade(The highest domestically)
-
Shaping degree of ground side:
-
Face 96%;Appearance99%(amendable freely)
-
Operation noise:
-
less than 60DB
-
Max linear velocity of grinding wheel:
-
15m/s
-
Humidity:
-
20~80%RH
-
Appearance size:
-
710*430*615(mm)
-
Ambient operation temperature:
-
5°C~40°C
-
Electric power:
-
350W
SUNNYMED Reliable Quality Affordable Price

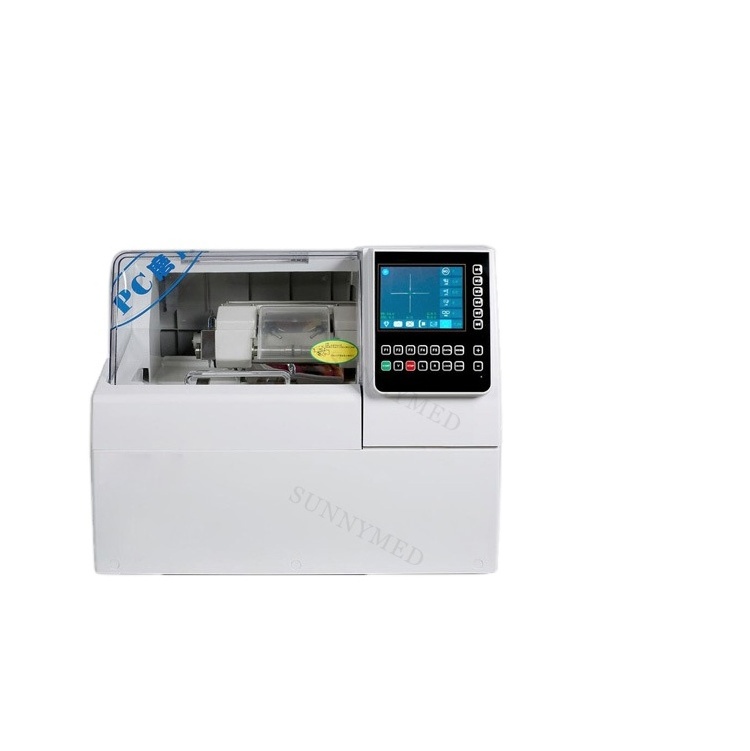

SY-V041A Best quality medical machine china patternless auto lens edger quotation

FAQ

2.
How to pay?
A. Trade assurance
B. Credit Card
C. Paypal in Alibaba
D.T/T(Bank Transfer)
E. Western union
E. Western union
F. L/C
Return policy
3. How long to wait for the order?
A. Ready stock within 24 hours
B. OEM need 2-7 working days
A. Ready stock within 24 hours
B. OEM need 2-7 working days
C. Safety delivery:special
one-to-one
inspection service before arranging the delivery

4. How to use our product?
A.
Video tutorial: including installation, operation, repairing and maintenance
B.
Real Time Online Video Call at your convenience:
Pre-sales and after-sales online video training
5. Warranty and after-sale service
A.
12-60 months
B.
After-sales service: Reply within
8 hours
Why this model?
1
|
patternless auto lens edger Feature:
1.Body is characteristics 2.Screening and grinding is finished together once without need for platen. 3.It has double functions with platen and without platen. 4.It has large size of liquid crystal screen for English and Chiese display, easy to operate. 5.Parameter such as pupil is distance, height,axial position and etc.are amendable with unnecessary to locate center manually. 6.The minimum diameter of lens blank can be displayed. 7.Any functions of platen machine are kept. 8.Grinding time for one lens 3 minutes. 9.Operation life of main grinding wheel 3 10000 lenses(Hardness below 5level). 10.Build-in counter and display function. 11.Characteristics of system and main part 12.Automatic tracked grinding system is adopted to insure the best pressure angle, axial force and radial force 13.Diamond wheel at international level is made of imported materials and new 5+1 process. 14.Digital smart computer is adopted for controlling geometrical size of lens and amending its geometrical shape. 15.Parameters such as sharp side type, grinding force and speed,clamping force and etc are adjustable freely for insuring lens quality 16.Potential technical space for improving performance and expanding function is reserved is order to add special functions |
2
|
patternless auto lens edger Specification:
1.Clamping force:0.50~0.78 mega pascal 2.Grinding diameter:Φ18~Φ75(mm) 3.Fineness of ground side:B VIIgrade(The highest domestically) 4.Shaping degree of ground side:Face 96%;Appearance99%(amendable freely) 5.Operation noise:less than 60DB 6.Maximum operation linear velocity of grinding wheel:15m/s 7.Diameter arrangement of grinding wheel:Φ100mm~Φ125mm 8.Width of grinding wheel group:60mm~100mm 9.Grinding wheels for PC: Φ101mm×16mm 10.Grinding wheels for glass: Φ101mm×15mm 11.Grinding wheels for V-molding and re-beveling:Φ101mm×21mm 12.Grinding wheels for polishing: Φ101mm×11mm 13.Rated voltage:220V/50HZ~110V/60HZ 14.Main motor power:250W 15.Electric power:350W 16.Ambient operation temperature:5°C~40°C 17.Humidity:20~80%RH 18.Appearance size:710×430×615(mm) |

Packing&Delivery
Product to be used together
Why choose us
We are based in Guangdong, China, starting from 2014. Products are sold to South America, Southeast Asia, North America, and Africa, ect. .
