Rock wool acoustic ceiling panels sound absorbing board material fiberglass ceilings Factory direct

Rock wool acoustic ceiling panels sound absorbing board material fiberglass ceilings Factory direct

FOB Reference Price: Get Latest Price

≥300 Square meters

US $3.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Villa

Design Style:: Modern

Place of Origin:: China

Brand Name:: DEGOPHON

Model Number:: W600

Material:: glasswool, rock wool.Mineral wool

Surface:: Emulsion paint sprayed

Size:: 600*600mm 1200*600mm

Color:: Smooth white, snowy mountain white

Thickness:: 12mm 15mm 20mm

NRC:: 0.85

Fireproof:: A2

Edge:: Square A24 E15 D24

Density:: 100Kg/m3

Installation:: Ceiling grid

Quick Details

Warranty:: NONE

After-sale Service:: NONE

Project Solution Capability:: NONE

Application:: Villa

Design Style:: Modern

Place of Origin:: China

Brand Name:: DEGOPHON

Model Number:: W600

Material:: glasswool, rock wool.Mineral wool

Surface:: Emulsion paint sprayed

Size:: 600*600mm 1200*600mm

Color:: Smooth white, snowy mountain white

Thickness:: 12mm 15mm 20mm

NRC:: 0.85

Fireproof:: A2

Edge:: Square A24 E15 D24

Density:: 100Kg/m3

Installation:: Ceiling grid

High performance ceiling tiles

DEGOFON stonewool ceiling products have resin bonded mineral wool core and consists of at least %98 rockwool. , solid rock is melted and being converted to wool. Then the wools are cut with different shapes, sizes and densities and applied with asurface finish and finally turned into different . DEGOFON ceiling s – being made from unadulterated resin bonded mineral wool – are between 40-80% lighter than traditional wet felted mineral fibre & gypsum ceiling tiles. Besides; this pure structure of the material makes DEGOFON ceiling unique in terms of 4 main properties:
class A1 Fire Resistance
100 % Relative Humidity
Excellent Acoustic Performance NRC0.85

The Production process

The base material of Degofon ceiling products is stone wool (resin bonded mineral wool) produced according to the principles of a volcanic eruption., stone is melted and transformed into wool with binders being added. In the following processes, the wool is shaped and cut according to specification and turned into ceiling tiles of various sizes, thicknesses and densities. Finally, a finishing treatment is applied giving the tiles an elegant and attractive surface finish.

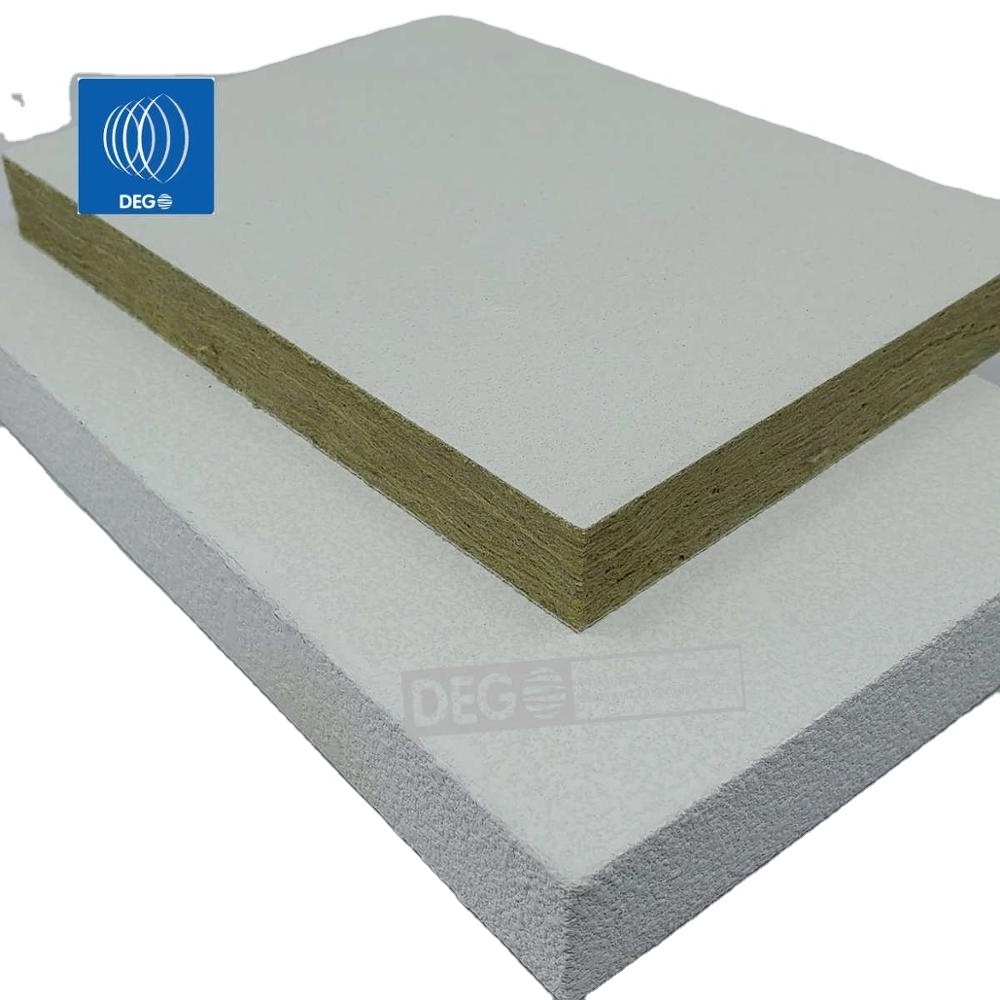

Acoustic Stonewool ceiling tiles 600*(600mm/1200mm)

Product description
·Material: 140K Stone wool panels ·Surface：white(WH) Black RAL

·Back：Sound absorption fiberglass mat

·Edge：Spraying
Features & Benefits:
- Elegant lightly textured white surface
-High sound absorption (NRC = 0.8 - 0.95)
- High fire performance (A1)
- High light reflectance (LR = 0.83)
-Optimal design freedom thanks to a large selection of edges (lay-in, tegular, concealed)
- Available in an array of sizes and formats, including planks.

PHYSICAL DATA

MATERIAL	Stone wool &rockwoo with acoustically transparent membrane
SURFACE FINISHE D	DEGOACOUSTIC factory applied acrylic latex paint,
COLOR	White .black ，Custom
SOUND ABSORPTION	NRC：0.85-0.9
SIZE(s）	Item606012(600mm×600mm×15mm),Item606015(600mm×600mm×12mm),
		Item 606025(600mm×600mm×25mmItem6012015(600mm×1200mm×15mm)
		Item6012020(600mm×1200mm×20mm),Item6012025(600mm×1200mm×25mm)
		Item6024025(600mm×2400mm×25mm),tem6018025(1200mm×1800mm×25mm),
EDGE	·A15/24 Square Lay-in	·E 15/24 Tegular	·D24 Concealed
WEIGHT	2.25kgs/m2Items606015	·3.2kgs/m2 (Items606020)	4.5kgs/m2(Item12024025
LIGHT REFLECTANCE	LR 0.85
MOISTURERESISTANCE	RH99
FIRE CLASS	(ASTM E1264) Class A1 per CN，lame Spread: 25 or less Smoke Developed: 50 or less
MILDEW RESISTANC	Fiberglass substrate is inherently resistantto the growth of mold and mildew.
RECOVERABLE	71%
WARRANTY	15Year ，	Useful life 50Y

Edge deltails

Square edge Lay-in A24

A lay-in grid system provides the room with a simple and structured expression that highlights the shape of the room. Lay-in grid ceilings have a SQ edge. SQ (square lay-in) - SQ tiles are a cost-effective solution that provides easy access The grid system is less dominant with the narrower T24 proﬁle. SQ edge tiles are demountable.

Tegular edge E15

Tegular grid ceilings use light and shadow to create a distinctive appearance. Combine the shape of the ceiling tile edges with the width and color of the suspension system to create a unique ceiling that contributes to the overall architectural expression of the space.

C oncealed edge D24

A concealed grid ceiling system can be suspended, directly fastened or glued to the ceiling. With little or no visible grid,they provide a concealed appearance and can integrate service installations such as lighting, ventilation and smoke detectors.

Clour

Smooth matt or micro-textured .

Elegant white 600#

high acoustic Dego ceiling tile that is suitable for a variety of commercial applications. It offers a tegular edge design with sealed edges.

Smooth white 100#

acoustic rockwool ceiling tile that achieves essential demands of a commercial ceiling. Each tile is individually demountable and
is available with either natural or primed edges.

Smooth Black 100#

black rockwool ceiling tile that provides high sound absorption properties. It is ideal for commercial applications such as
movie theatres or lecture theatres

Design

Lay in Ceiling tile

The suspension system is made from 15/24mm wide galvanised steel with a smooth white* visible surface. The system comprises main
runners, cross tees, perimeter trims and a variety of accessories

Degoacoustic Shapes

Cloud is a sophisticated sound absorbing free hanging feature for commercial ceiling spaces. Perfect for areas where a traditional
suspended ceiling is not required but solid acoustic properties are. The Ambience cloud range is available in eight different
shapes and sizes.

Degoacoustic baffle

Baffle is a sound absorbing free hanging feature for commercial ceiling spaces. Perfect for areas where a traditional suspended
ceiling is not required but solid acoustic properties are. The Ambience baffle range is available in two shapes; Platform and Rise

DEGO FACTORY

DEGO develops, manufactures and markets acoustic panels baffles and ceiling tiles systems.18 years of experience in many projects through architects, designers, agents, OEMs of famous brand companies

Our acoustic products cover glass fiber, rock wool, mineral wool, gypsum materials .
Customized surface textures, colors, shapes and modular standard products ，High quality products to serve many customers
We offer a wide range of acoustic ceilings for all purposes. Explore our comprehensive product systems.

Mineral wool modular ceiling
