Multi tool Electric Puncher Hydraulic Hole punching tool 35T Digger Copper Iron Plate Stainless Steel Hole Opener Tools kit

Multi tool Electric Puncher Hydraulic Hole punching tool 35T Digger Copper Iron Plate Stainless Steel Hole Opener Tools kit

FOB Reference Price: Get Latest Price

≥5 Sets

US $115

≥10 Sets

US $112

≥30 Sets

US $110

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Output:: 35T

Throat Depth:: 110mm

Thickness iron sheet:: 3-10mm

Thickness copper busbar:: 3-12mm

Weight:: 38kg

Punching dies:: 10.5 13.8 17 20.5mm

Certificate:: CE

Quick Details

Product name:: Hydraulic hole punch machine

Power Source:: Hydraulic

Model Number:: CH-70

Output:: 35T

Throat Depth:: 110mm

Thickness iron sheet:: 3-10mm

Thickness copper busbar:: 3-12mm

Weight:: 38kg

Punching dies:: 10.5 13.8 17 20.5mm

Certificate:: CE

Hydraulic punching tool

Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.5/ 17.5 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 10mm. With hydraulic power, 4pairs sharp punching dies, easy fast and clean punching can be achieved. emi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Name	CH-60	CH-60L	CH-70	CH-70L
Punch Force	31T	31T	35T	35T
Depth Throat	95mm	95mm	115mm	115mm
L Angle Steel	4-8#	4-8#	5-10#	5-10#
Channel Steel	6-10# (wide face)	6-10# (wide face)	6-12# (wide face)	6-12# (wide face)
Copper Busbar	3-10mm	3-10mm	3-12mm	3-12mm
Aluminum Busbar	3-10mm	3-10mm	3-12mm	3-12mm
Iron Plate	3-8mm	3-8mm	3-10mm	3-10mm
Stainless Steel Plate	3-6mm	3-6mm	3-8mm	3-8mm
Accessories	Φ10.5 ,13.8,17, 20.5	Φ10.5 ,13.8,17, 20.5	Φ10.5 ,13.8,17, 20.5	Φ10.5 ,13.8,17, 20.5
Package	wooden case	wooden case	wooden case	wooden case
Weight	22kg	22kg	38kg	38kg

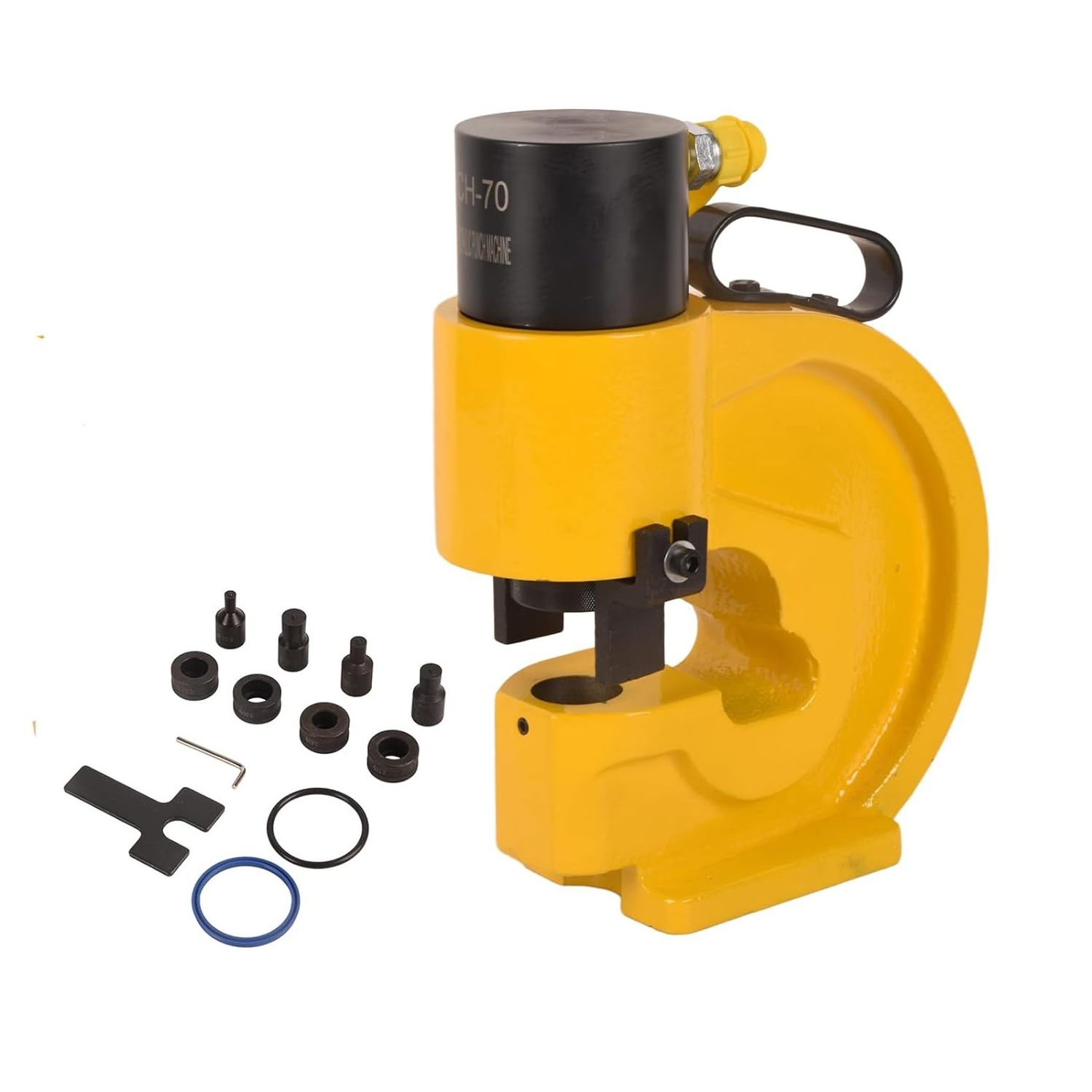

Hydraulic Hole Punching Tool Machine

Model: CH-70

Punching Force: 35T
Depth Of Throat: 115mm
Aluminum and Copper Plate: 3-12mm
Iron Plate: 3-10mm
Stainless Steel: 3-8mm
Accessories:
English Manual *1
Auxiliary Board * 1
Hammer Nail * 1
Allen Wrench * 1
Punch Dies *4(Φ10.5 13.8 17 20.5mm)

\uD835\uDC11\uD835\uDC28\uD835\uDC1B\uD835\uDC2E\uD835\uDC2C\uD835\uDC2D \uD835\uDC02\uD835\uDC28\uD835\uDC27\uD835\uDC2C\uD835\uDC2D\uD835\uDC2B\uD835\uDC2E\uD835\uDC1C\uD835\uDC2D\uD835\uDC22\uD835\uDC28\uD835\uDC27.

This knockout punch set is made of premium alloy steel with high strength and excellent toughness. It has a flat and sturdy base,not easily fall. It is robust and durable.

115\uD835\uDC26\uD835\uDC26 \uD835\uDC03\uD835\uDC1E\uD835\uDC1E\uD835\uDC29 \uD835\uDC13\uD835\uDC21\uD835\uDC2B\uD835\uDC28\uD835\uDC1A\uD835\uDC2D

this hydraulic punch down installation tool features a deep throat for convenient operation and excellent punching. Depth of throat: 4.53"/115 mm.

\uD835\uDC0F\uD835\uDC2E\uD835\uDC26\uD835\uDC29 \uD835\uDC09\uD835\uDC28\uD835\uDC22\uD835\uDC27\uD835\uDC2D & \uD835\uDFD15\uD835\uDC13\uD835\uDC28\uD835\uDC27 \uD835\uDC0F\uD835\uDC2E\uD835\uDC27\uD835\uDC1C\uD835\uDC21\uD835\uDC22\uD835\uDC27\uD835\uDC20 \uD835\uDC1F\uD835\uDC28\uD835\uDC2B\uD835\uDC1C\uD835\uDC1E

The male connector is covered with a plastic dust jacket, to prevent dust from entering. It is designed to connect with a pump.Punching force: 350KN(35T).

\uD835\uDC0F\uD835\uDC2E\uD835\uDC27\uD835\uDC1C\uD835\uDC21\uD835\uDC22\uD835\uDC27\uD835\uDC20 \uD835\uDC03\uD835\uDC22\uD835\uDC1E\uD835\uDC2C & \uD835\uDFD2 \uD835\uDC0F\uD835\uDC1A\uD835\uDC22\uD835\uDC2B\uD835\uDC2C..

This hydraulic punch tool comes with four pairs of dies, made of high carbon tungsten steel. 3/8"(ф10.5 mm),
1/2"(ф13.8mm),5/8"(ф17mm), 3/4"(ф20.5 mm).

Install & Remove Dies

A variety of punching molds for selection Reasonable selection of punching mold according to requirements .

\uD835\uDC15\uD835\uDC1A\uD835\uDC2B\uD835\uDC22\uD835\uDC28\uD835\uDC2E\uD835\uDC2C \uD835\uDC00\uD835\uDC29\uD835\uDC29\uD835\uDC25\uD835\uDC22\uD835\uDC1C\uD835\uDC1A\uD835\uDC2D\uD835\uDC22\uD835\uDC28\uD835\uDC27.

The punch tool commonly used in the electricity industry, construction, and other maintenance areas.This hole punching tool can
apply to L and H style flat copper and busbar, etc.

1. The hole puncher is split design,single oil return.

2. you need prepare the hydraulic pump to push hole puncher work
3. Connecting with pump of model Hand type CP-700, CP-700-2 ,CP-800 , or electric pump DYB-630, ZCB-700A QQ-700 etc.
