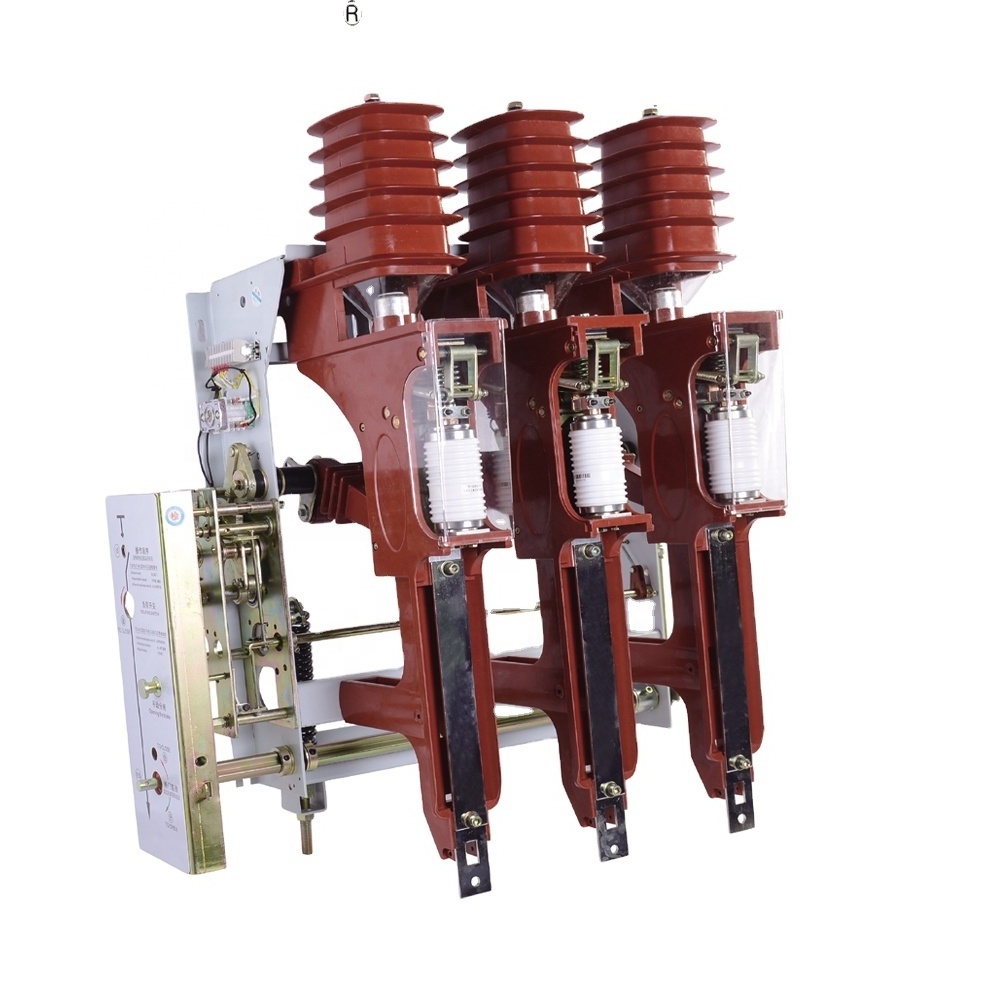

Indoor High Pressure Vacuum Load Switch
-
Type:
-
FKRN12-12
-
Rated working voltage:
-
12KV
-
Rated shortcircuit breaking current:
-
630A 125A
-
Rate Frequency(HZ):
-
50Hz
-
Pole Number:
-
3
-
Voltage:
-
12KV
-
Application:
-
Short-circuit Protection
-
Certificate:
-
ISO9001
-
Warranty:
-
12 Months
Quick Details
-
Breaking Capacity:
-
31.5KA
-
Rated Voltage:
-
12KV
-
Rated Current:
-
630A 125A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LUGAO
-
Model Number:
-
FKRN12-12
-
Product name:
-
Indoor High Pressure Vacuum Load Switch
-
Type:
-
FKRN12-12
-
Rated working voltage:
-
12KV
-
Rated shortcircuit breaking current:
-
630A 125A
-
Rate Frequency(HZ):
-
50Hz
-
Pole Number:
-
3
-
Voltage:
-
12KV
-
Application:
-
Short-circuit Protection
-
Certificate:
-
ISO9001
-
Warranty:
-
12 Months
Product overview
FK (R) N12-12D/T type high voltage load switch is suitable for 12KV and below three-phase high voltage switching equipment, as transformers, cables, overhead lines and other power equipment control box protection; It is especially suitable for terminal substation and box-type substation of urban network and agricultural network. And suitable for ring network, double radiation power supply unit control and protection.
Product Structural features
Load switch for the frame structure, unique structure compact, integrated isolating switch, load switch, fuse, grounding switch is one of the high voltage electrical products .
Isolating switch for direct drive type, motion direction and motion parallel to the direction of the vacuum interrupter. Separate switch has obvious partition port security barrier, when the grounding switch on at the same time, and the safety barrier grounding switch static contact linkage automatically charged (closed busbar chamber), repair or replace the fuse is absolutely safe.
Isolating switch, load switch on-off sequence mechanical procedure guarantee. Closing operation, isolating switch, load switch it on first after closing. The opening operation, load switch off after the first isolating switch gate.
A mechanical interlock to prevent mis-operation between load switch and earthing switch.
The load switch with lock, can easily switch cabinet and the switch when the door open or the door interlock, door unlocked, load switch can not operate, when the grounding switch does not switch on, the door cannot be opened.
Load switch for electric manual can realize remote control
Isolating switch for direct drive type, motion direction and motion parallel to the direction of the vacuum interrupter. Separate switch has obvious partition port security barrier, when the grounding switch on at the same time, and the safety barrier grounding switch static contact linkage automatically charged (closed busbar chamber), repair or replace the fuse is absolutely safe.
Isolating switch, load switch on-off sequence mechanical procedure guarantee. Closing operation, isolating switch, load switch it on first after closing. The opening operation, load switch off after the first isolating switch gate.
A mechanical interlock to prevent mis-operation between load switch and earthing switch.
The load switch with lock, can easily switch cabinet and the switch when the door open or the door interlock, door unlocked, load switch can not operate, when the grounding switch does not switch on, the door cannot be opened.
Load switch for electric manual can realize remote control
Using the environment conditions
Ambient temperature:-10ºC-+40ºC
Relative humidity:The average humidity of a day should be no more than 95%. The average humidity of a month should be no more than 90%.
Earthquake intensity: not exceed 8 degrees.
Saturated vapor pressure the average pressure of a day should be no more than 2.2 Kpa ; the average pressure of a month should be no more than 1.8 Kpa;
The height above sea level:≤1000 m (Except special requirements)
It should be installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.
Relative humidity:The average humidity of a day should be no more than 95%. The average humidity of a month should be no more than 90%.
Earthquake intensity: not exceed 8 degrees.
Saturated vapor pressure the average pressure of a day should be no more than 2.2 Kpa ; the average pressure of a month should be no more than 1.8 Kpa;
The height above sea level:≤1000 m (Except special requirements)
It should be installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.
|
No.
|
Name
|
|
|
Unit
|
FKN12A
|
FKRN12A
|
|||
|
1
|
Rated voltage
|
|
|
KV
|
12
|
12
|
|||
|
2
|
Rated frequency
|
|
|
Hz
|
50
|
50
|
|||
|
3
|
Rated current
|
|
|
A
|
630
|
125
|
|||
|
4
|
Rated insulation level
|
power frequency withstand voltage(1min)
|
To ground,Interphase
|
KV
|
42
|
42
|
|||
|
|
|
|
breaker fracture
|
|
48
|
48
|
|||
|
|
|
lighting implus withstand voltage(peak)
|
To ground, Interphase
|
|
75
|
75
|
|||
|
|
|
|
breaker fracture
|
85
|
|
85
|
|||
|
5
|
Rated short-time withstand current(thermal stability current)
|
|
Load switch
|
KA
|
20
|
|
|||
|
|
|
|
Grounding switch
|
|
20
|
|
|||
|
6
|
Rated short-circuit duration(thermal stability time)
|
|
Load switch
|
S
|
4
|
|
|||
|
|
|
|
Grounding switch
|
|
2
|
|
|||
|
7
|
Rated short circuit closing current(peak)
|
|
|
|
50
|
|
|||
|
8
|
Rated breaking current
|
|
load breaking current
|
A
|
630
|
|
|||
|
|
|
|
closed loop breaking current
|
|
630
|
|
|||
|
|
|
|
Cable charging current
|
|
10
|
|
|||
|
|
|
|
breaking no-load transformer capacity
|
KVA
|
1250
|
|
|||
|
9
|
Rated short-circuit breaking current(Current limiting fuses)
|
|
|
KA
|
|
31.5
|
|||
|
10
|
Rated transf current
|
|
|
A
|
|
1200
|
|||
|
11
|
Mechnical life
|
|
|
times
|
2000
|
2000
|
|||
|
|
Fracture opening distance
|
|
|
mm
|
≥175
|
|
|||
|
|
Interphase center distance
|
|
|
210±2
|
|
|
|||
|
|
interphase air distance
|
|
|
≥
|
|
|
|||
|
|
travel
|
|
|
210±4
|
|
|
|||
|
|
overtravel
|
|
|
≥40
|
|
|
|||
|
|
three-phase non-simultaneity of contact closing
|
|
|
ms
|
≤0
|
|
|||
|
|
three-phase non-simultaneity of contact opening
|
|
|
≤5
|
|
|
|||
|
|
Proper release of shunt release
|
|
|
40~65
|
|
|
|||
|
14
|
Dominant loop resistance
|
|
|
μΩ
|
≤130
|
|
|||
