Quick Details
-
Brand Name:
-
GOLD
-
Model Number:
-
GDGK-307
-
Power supply:
-
AC220V±10%; 50Hz±10%
-
Working temperature:
-
-10~50°C
-
Humidity:
-
<80%
-
Internal DC power source:
-
Voltage: 12~265V; current:0~20A
-
Vibration measurement:
-
Range: 0~5000G; error:<3%
-
Coil current measurement:
-
Range: 0~20A; resolution: 0.001A; error:<0.01A
-
Time measurement range:
-
4000ms
-
Time measurement error:
-
< 0.1ms
-
Time measurement resolution:
-
0.01ms
-
Test current:
-
25~100A
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
GOLD
-
Model Number:
-
GDGK-307
-
Power supply:
-
AC220V±10%; 50Hz±10%
-
Working temperature:
-
-10~50°C
-
Humidity:
-
<80%
-
Internal DC power source:
-
Voltage: 12~265V; current:0~20A
-
Vibration measurement:
-
Range: 0~5000G; error:<3%
-
Coil current measurement:
-
Range: 0~20A; resolution: 0.001A; error:<0.01A
-
Time measurement range:
-
4000ms
-
Time measurement error:
-
< 0.1ms
-
Time measurement resolution:
-
0.01ms
-
Test current:
-
25~100A
Products Description
Application
:

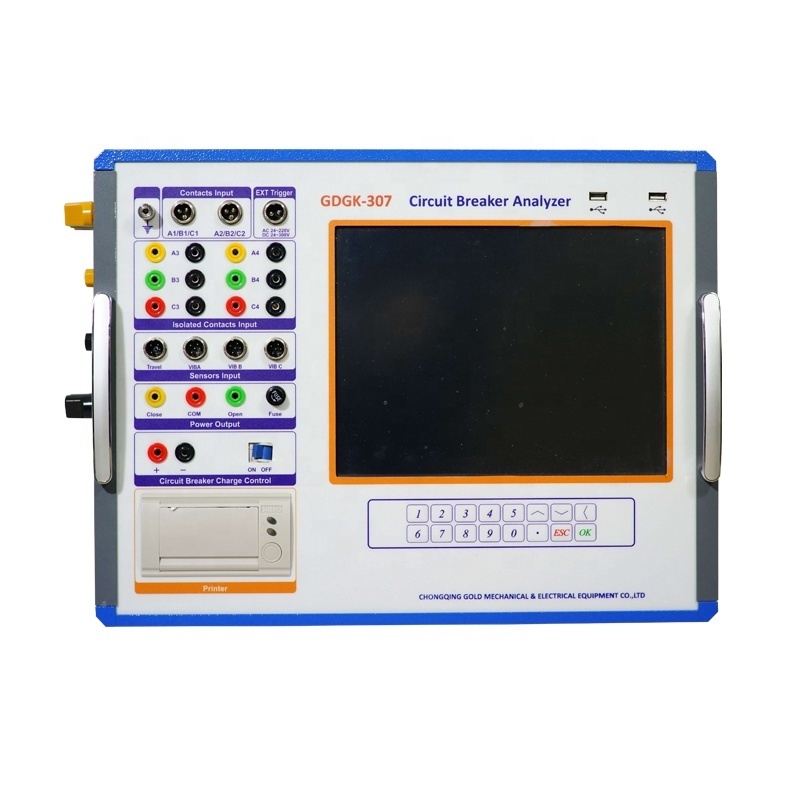

Circuit Breaker Analyzer is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration
characteristics etc.
Introduction:
1. Circuit Breaker Analyzer is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc.
2. The functions of Circuit Breaker Analyzer cover all testing items of high voltage circuit breaks.
Technical Parameters:
Circuit Breaker Analyzer is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration
characteristics etc.
Introduction:
1. Circuit Breaker Analyzer is used for testing, analyzing and assessing power system circuit breakers, mechanical characteristics of load switches and isolated switches and other AC high voltage switches, contact resistance, Arcing contacts and vibration characteristics etc.
2. The functions of Circuit Breaker Analyzer cover all testing items of high voltage circuit breaks.
Technical Parameters:
|
12 channels for time measurement
|
3-channel supports both the time contact and resistance contact time
|
|
|
6-channel isolated contacts for cascaded unit measurement of pole
|
|
Time measurement
|
Range: 4000ms
|
|
|
Error :< 0.1ms
|
|
|
Resolution: 0.01ms
|
|
Travel measurement according to sensor
|
Linear resistance sensor:
Measurement range: 0~250mm; resolution: 0.01mm; error:<0.5mm Measurement range: 0~25mm; resolution: 0.01mm; error:<0.05mm |
|
|
Angle resistance sensor:
Measurement range: 0~360°; resolution: 0.01°; error:<0.5° |
|
Pre-insertion Resistance Measurement
|
Range: 50~5000ohm; error :<1%RDG+2D
|
|
Dynamic resistance measurement
|
Test current: 25~100A
|
|
|
Measurement error :< 1%RDG+2D
|
|
Contact resistance measurement
|
Range:0--10mohm ; Error<0.5%RDG+0.05%FS
|
|
|
Range: 0-2mohm; Error:<0.5%RDG+2D
|
|
Speed measurement
|
250mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D
|
|
|
25mm linear resistance scale: 0~20m/s; error:<0.5%RDG+2D
|
|
|
Angle sensor: 0~20m/s; error:<0.5%RDG+2D
|
|
|
Acceleration sensor: 0~20m/s; error:<5%RDG+2D
|
|
Coil current measurement
|
Range: 0~20A; resolution: 0.001A; error:<0.01A
|
|
Vibration measurement
|
Range: 0~5000G; error:<3%
|
|
Internal DC power source
|
Voltage: 12~265V; current:0~20A
|
|
Data Save
|
Built-in 8G storage memory and 2 USB interface for data export and external keyboard or mouse connection
|
|
Power supply
|
AC220V±10%; 50Hz±10%
|
|
Working environment
|
Temperature: -10~50°C; Humidity:<80%
|
Features
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Category
About US
Certifications
Customer Praise
Packing & Shipping
FAQ
1. What kind of certificate can you provide?
A: We can provide CE mark,ISO 9001 quality certificate, the third party calibration certificate(CNAS),factory test report.
2. What's the delivery lead time?
A: For most of the products, delivery lead time is 10 days after the order is confirmed; For some customized products, please check with the sales person.
3. What's the payment term?
A: For total amount below USD3,000.0, payment term is 100% T/T as deposit; For total amount above USD3,000.0, payment term is 30% T/T as deposit, the balance before delivery; The payment term is also negotiable.
4. What's the warranty period?
A: Warranty period is 1 year
5.What’s the power supply can we support?A: Normally, our power supply is AC220V±10%,50Hz/60Hz. If you required 127V or 110V, we can also customize it.
