Quick Details
-
Voltage:
-
AC220V, 50/60HZ(can be customized)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beyago
-
Dimension(L*W*H):
-
630mm*430mm*400mm
-
Weight:
-
40 KG
-
Machinery Capacity:
-
20-40bottels/min
-
Product name:
-
wet cold glue labeling machine
-
Other name:
-
No adhesive sticker labeling machine
-
Labeling speed:
-
20-30pcs/min
-
Label size:
-
width 40mm~200mm, length 80mm~380mm
-
Label accuracy:
-
1mm
-
Suitable bottle:
-
diameter 30mm~120mm, height 30mm~230mm
-
Model:
-
BYG-L811
-
After Warranty Service:
-
Online support
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, APPAREL, Textiles
-
Packaging Type:
-
case
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Voltage:
-
AC220V, 50/60HZ(can be customized)
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beyago
-
Dimension(L*W*H):
-
630mm*430mm*400mm
-
Weight:
-
40 KG
-
Machinery Capacity:
-
20-40bottels/min
-
Product name:
-
wet cold glue labeling machine
-
Other name:
-
No adhesive sticker labeling machine
-
Labeling speed:
-
20-30pcs/min
-
Label size:
-
width 40mm~200mm, length 80mm~380mm
-
Label accuracy:
-
1mm
-
Suitable bottle:
-
diameter 30mm~120mm, height 30mm~230mm
-
Model:
-
BYG-L811
-
After Warranty Service:
-
Online support
Product Overview

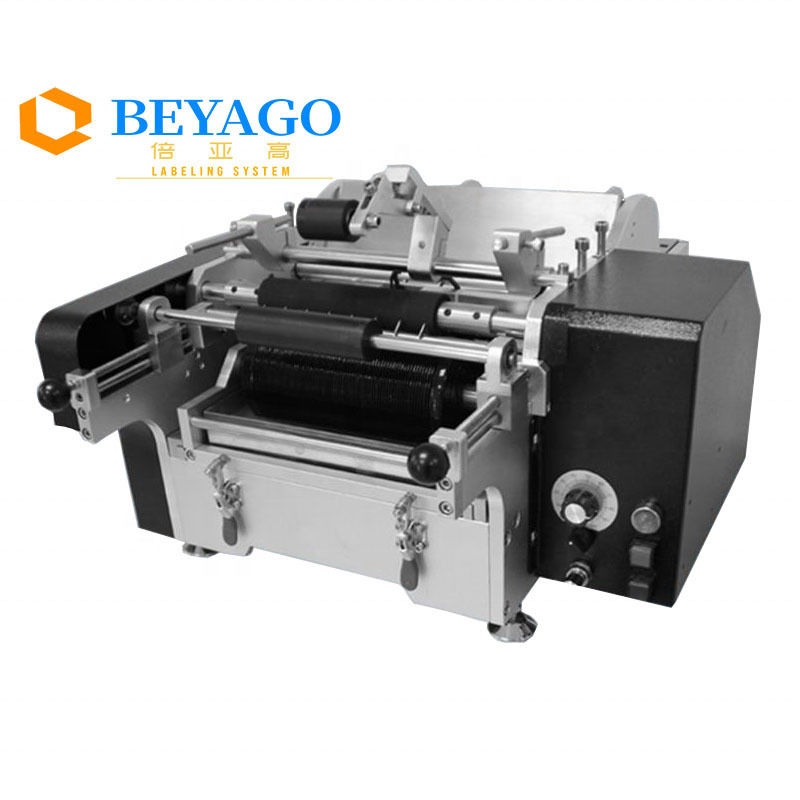

BYG-L811 Wet Cold Glue Paste Labeling machine
Semi automatic paste labeling machine belongs to paste labeling machine, applicable to objects of various round bottle paste labeling, paper separating, brush glue, labeling, covering label automatically, reduce the artificial labeling procedures, improve the labeling efficiency. Glue brushing event with stripes efficiency, no wrinkle, improve packaging quality. Especially suitable for small and medium quantity labeling production, such as food, alcohol and others labeling. At the same time, the company also provides faster and can be connected to the production line ‘s automatic paste labeling machine.
Operation process:
feeding products - > paper separating + paper feeding +brush glue + labeling + cover labeling (realized
automatically) - >take out the labeling products.
automatically) - >take out the labeling products.
Product features:
Simple operation, Feeding and receiving bottle to complete the whole process of labeling by manual. The simple
adjustment, especially suitable for small batch production, simple and quick switching product, improve efficiency. save the glue,
glue thickness can be adjusted according to the requirement, glue brush event, eliminate waste of glue. Labeling accurate, label
head and tail overlap is high precision, the label on the bottle body positioning accurately. The labeling with high quality,
adjustable stripes type, labeling is flat, wrinkle free, no warping, improve packaging quality. The high degree of automation,
paper separating, paper feeding, glue brushing, labeling, covering label complete automatically, improve the labeling efficiency.
The application of a wide range of products, which can meet paste labeling within the scope of diameter 30-120mm Simple cleaning,
glue plate, scraping knife, glue wheel separated type design, easy cleaning
adjustment, especially suitable for small batch production, simple and quick switching product, improve efficiency. save the glue,
glue thickness can be adjusted according to the requirement, glue brush event, eliminate waste of glue. Labeling accurate, label
head and tail overlap is high precision, the label on the bottle body positioning accurately. The labeling with high quality,
adjustable stripes type, labeling is flat, wrinkle free, no warping, improve packaging quality. The high degree of automation,
paper separating, paper feeding, glue brushing, labeling, covering label complete automatically, improve the labeling efficiency.
The application of a wide range of products, which can meet paste labeling within the scope of diameter 30-120mm Simple cleaning,
glue plate, scraping knife, glue wheel separated type design, easy cleaning
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Power
|
0.45KW
|
|
|
|
2
|
Capacity
|
20-30 pcs/min
|
|
|
|
3
|
Applicable product size
|
diameter 30mm~120mm, height 30mm~230mm
|
|
|
|
4
|
Applicable label size
|
width 40mm~200mm, length 80mm~380mm
|
|
|
|
5
|
The whole machine size:
|
630 * 430 * 400mm
|
|
|
|
6
|
Weight
|
40kg
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PRODUCT CONFIGURATION
FAQ
Q1: Are you factory or trading company?
A:
We are both manufacturers and traders .We sell both our own products and Other associated equipment, all equipment is manufactured and tested under our strict acceptance standards.
Q2: Can you guarantee your quality?
A:
Yes, we have a strict manufacturing and installation process and all equipment is tested for three days before leaving the factory.Pneumatic and electrical components are of well-known brands.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides,we provide on line video chat support . we have professional after-sale group to customer 's site to solve any problems.Major overseas sales team members have a certain technical background and can quickly understand customer needs and after-sales technical issues. Provide professional services and support to overseas customers.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring belt etc. Non-artificial damaged spares will be sent freely during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
Q8:Do I need to pay for the extra cost like tax or duty ?
A:Yes, custom duty / tax it's the buyer responsibility need to pay it, the shipping cost it's not included the tax.
