Quick Details
-
Model Number:
-
LH-SS200-02A
-
Place of Origin:
-
Jiangsu, China
-
Theory:
-
Ultrasonic
-
Product name:
-

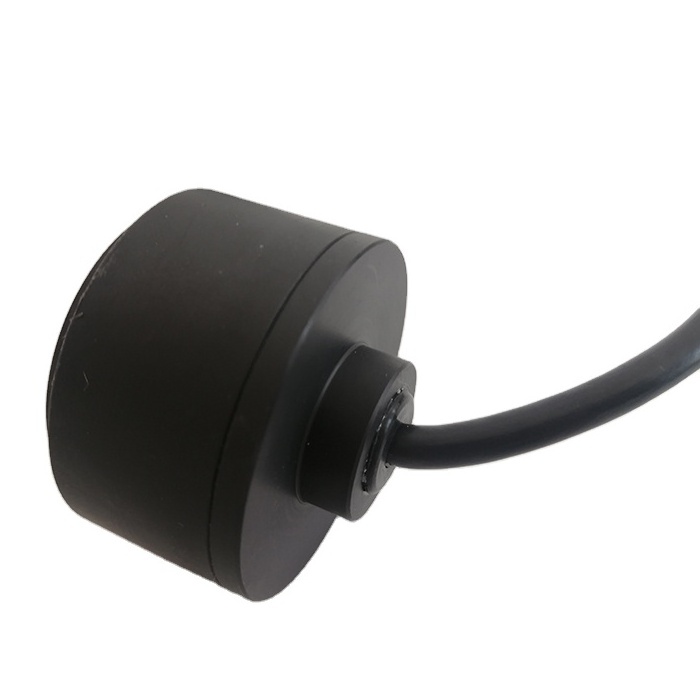

Ultrasonic Transducer
-
Transducer frequency:
-
200KHZ±4 KHZ
-
Sensitive element material:
-
PZT-4
-
Send response:
-
161dB/V
-
Revalidation failed:
-
-190dB
-
Beam Angle:
-
14±1°
-
Electrostatic capacitance:
-
1500±15%
-
Shunt impedance:
-
500(±30%Ω)
-
Ambient temperature:
-
'-20℃ - 70℃
Quick Details
-
Series:
-
Water level Transducer, Water Depth Transducer
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor
-
Model Number:
-
LH-SS200-02A
-
Place of Origin:
-
Jiangsu, China
-
Theory:
-
Ultrasonic
-
Product name:
-
Ultrasonic Transducer
-
Transducer frequency:
-
200KHZ±4 KHZ
-
Sensitive element material:
-
PZT-4
-
Send response:
-
161dB/V
-
Revalidation failed:
-
-190dB
-
Beam Angle:
-
14±1°
-
Electrostatic capacitance:
-
1500±15%
-
Shunt impedance:
-
500(±30%Ω)
-
Ambient temperature:
-
'-20℃ - 70℃
Product Description
Specification
|
Transducer frequency
|
200KHZ±4 KHZ
|
|
Sensitive element material
|
PZT-4
|
|
Send response
|
161dB/V
|
|
Revalidation failed
|
-190dB
|
|
Beam Angle
|
14±1°
|
|
Electrostatic capacitance
|
1500±15%
|
|
Shunt impedance
|
500±30%(Ω）
|
|
Ambient temperature
|
-20℃ - 70℃
|
|
rated power
|
200W
|
|
Housing Material
|
ABS
|
|
Cable length
|
6M
|
|
Note
|
Construction and size of transducer is customizable。
|
