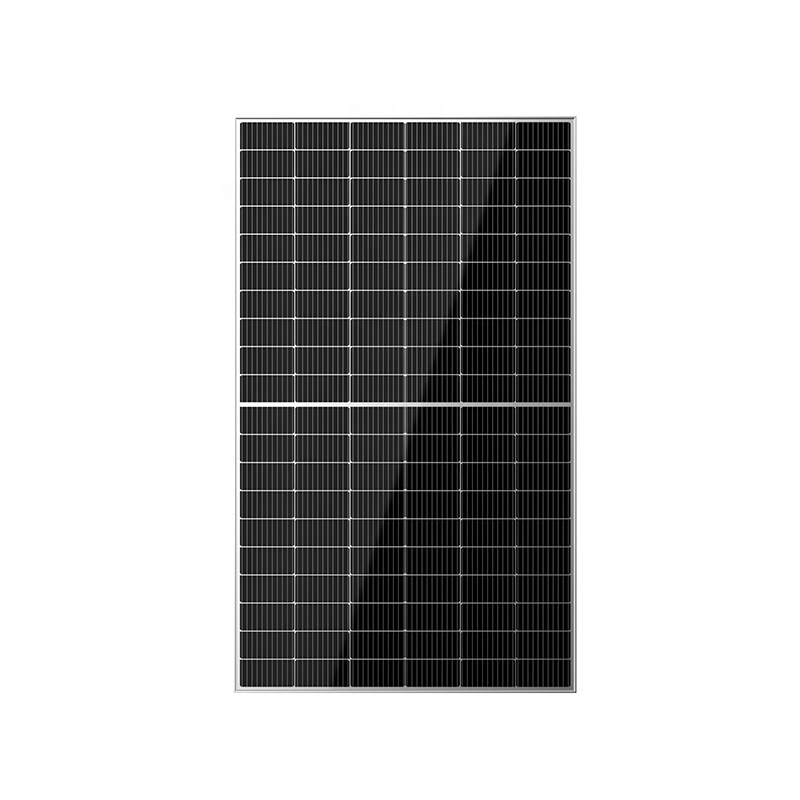

Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel
Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel

Panels Price For Watt With System Wholesale Home Paneles China Power Kit Solares 550W Portable In Glass Flexible Pv Solar Panel

FOB Reference Price: Get Latest Price
≥36 Pieces
US $64
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
25YEARS
Brand Name:
LYNXSUN
Model Number:
LK400M-108P
Place of Origin:
Guangdong, China
Panel Dimensions:
1722*1134*30mm

Quick Details

Cell size:
182mmx182mm
Type:
PERC
Panel Efficiency:
20.5%-22.5%
Warranty:
25YEARS
Brand Name:
LYNXSUN
Model Number:
LK400M-108P
Place of Origin:
Guangdong, China
Panel Dimensions:
1722*1134*30mm
Products Description

MSD400M-120
Half-cut Single/Double Glass Module

400-430/MB

INTRODUCTION
LYNXSUN mono half-cut single / double glass module,assembled with multi-busbar PERC technique and half-cut structure, which can not only absorb the energy from the front of the module, but also absorb the reflected light and the scattered light from the back,offer the advantages of higher power output,reduce shading effect on the energy generation,enhance the mechanical load bearing capacity as well.

LCOE save6-8%

IEC61215.1EC61730
SO9001:2015 Quality Management Systems
SO45001:2015 Environmental Management Systems
ISO45001:2018

Multi Busbar Technology

Better light utilization and currentcollection,improve product powe routput and reliability

Half-cut Technology

Through the half-cut technology,the current through each busbar is reduced to 1/2 than before.Therefore,the internal power loss of the half-cut module is reduced'to 1/4 for the whole mould.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control

Enhanced Mechanical Load

Certified to withstand: wind load (2400Pascal)
and snowload (5400 Pascal)
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certificated by the third party.
Product Paramenters
Cell Type
MONO(182mm)
No of Cells
108pcs(6x18)
Dimensuons
1722x1134x30mm
Weight
23.9kg/pcs
Structre
3.2mm Anti-Reflection Coating High Transmission Low lron ,Tempered Glass+EVA Film+White Back
Cable
4.0mm2(+)300mm/(-)300mm
Junction box
IP68.3 bypass diode
Mechanicalload
front 5400 Pa/back2400Pa
Packing number
36pcs/pallet
40HQ container
936 pcs
Frame
Anodized Aluminum Alloy
Electrical Parameters at STC
Module Type
MSD400P
MSD410P
MSD420P
MSD430P
Rate Maximum Power(Pmax/w)
400
410
420
430
Module Efficiency(%)
20.5
21
22
22.5
Open Circit Voiatge(Voc/v)
36.96
37.23
37.58
37.75
Short Circuit Current(lsc/A)
13.82
14
14.41
14.74
Voltage at Pmax(Vmp/V)
30.65
30.95
31.32
31.59
Current at Pmax(lmp/A)
13.06
13.25
13.73
13.93
Power Tolerace
0~+5W
Temperature Coefficents of lsc
+0.046%℃
Temperature Coefficents of Voc
-0.276%℃
Temperature Coefficents of Pmax
-0.350%℃
STC
lrradiance 1000w/m² Cell Temperarure25℃ AM1.5
Remark:Electrical data in this catalogue does not refer to a single module and it's not part of the offer ,lt only serves
for the comparison among different module types
