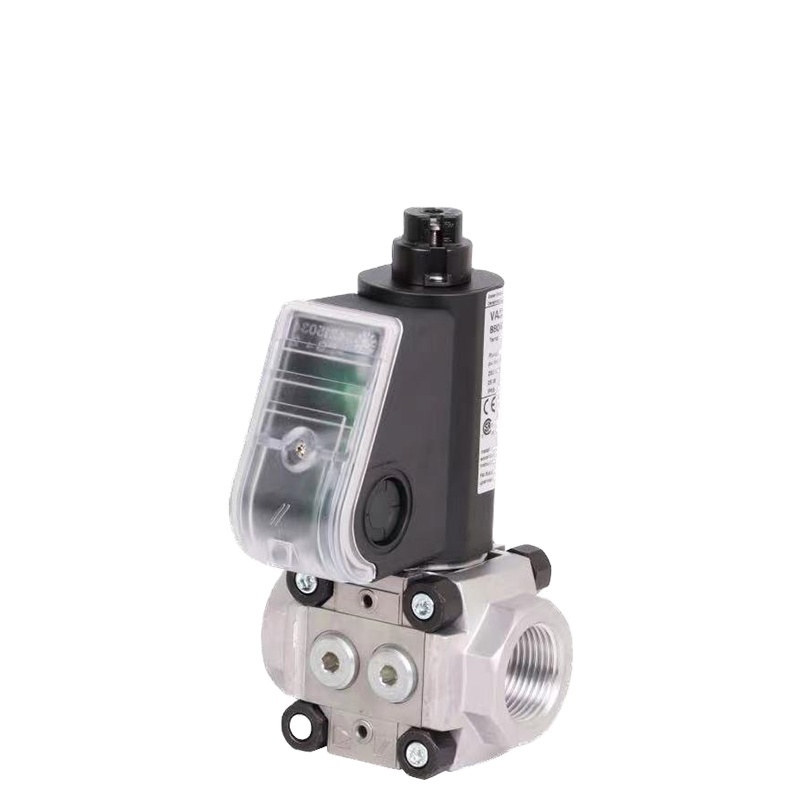

Kromschroder OR VAS 365R/NQ 88000052 Double Gas Solenoid Control Valves For Gas Burners And Appliances

Kromschroder OR VAS 365R/NQ 88000052 Double Gas Solenoid Control Valves For Gas Burners And Appliances

FOB Reference Price: Get Latest Price

≥2 Pieces

US $669

≥5 Pieces

US $624

≥10 Pieces

US $585

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: VAS 365R/NQ 88000052

Brand Name:: kromschroder

Product name:: Kromschroder OR VAS 365R/NQ 88000052 Air Double Gas Solenoid Valves

Brand:: Kromschroder

Model:: VAS 365R/NQ 88000052

Power Supply:: 230 V AC, 50/60 Hz

Max. inlet pressure pe: max.:: 500 mbar

Opening time:: ≤1s

Closing time:: Quick closing: < 1 s

Enclosure:: IP 65.

After Warranty Service:: Video technical support

Usage:: Gas Burner Accessories

Quick Details

Port Size:: DN 65

Warranty:: 1.5years

Place of Origin:: Germany

Model Number:: VAS 365R/NQ 88000052

Brand Name:: kromschroder

Product name:: Kromschroder OR VAS 365R/NQ 88000052 Air Double Gas Solenoid Valves

Brand:: Kromschroder

Model:: VAS 365R/NQ 88000052

Power Supply:: 230 V AC, 50/60 Hz

Max. inlet pressure pe: max.:: 500 mbar

Opening time:: ≤1s

Closing time:: Quick closing: < 1 s

Enclosure:: IP 65.

After Warranty Service:: Video technical support

Usage:: Gas Burner Accessories

Product Description

Kromschroder OR VAS 365R/NQ 88000052 Double Gas Solenoid Control Valves For Gas Burners And Appliances

Solenoid valves for gas VAS

1.A further development of the solenoid valves for gas VG and VS

2.Suitable for a max. inlet pressure of 500 mbar

3.Easy installation into a system

4.Compact design saves space Easy flow adjustment with display

5.Check indication by blue LED
6.Position indicator with integral visual indicator

7.Suitable for intermittent operation

8.Wide-ranging applications due to the modular construction

9.Higher flow rates with the same nominal size

Application

The modular design principle allows the individual compon ents of theVAS,VCS Series tobe easily assembled: e.g. quick opening,
slow
opening, with proof of closure switch and visual position indicator, slow opening with attached pressure switch.
Solenoid valves for gas VAS and double solenoid valves VCS for safe guarding and controlling the air and gas supply to gas
burners and gas
appliances. For use in gas control and safety systems in all sectors of the iron, steel, glass and ceramics industries, as well as
in commercial heat generation, such as the packaging, paper and foodstuffs industries.

Function

The gas solenoid valveVASis closedwhenit is disconnected from the power supply. Opening: connect the system to the electrical power supply (alternating voltage will be rectified). The blue LED lights up. The coil’s magnetic field pulls the
armature with the attached valved is csup wards. The gas solenoid valve VAS opens. The double valve seat means that the forces
from theinlet pressure are divided almost equally between the twovalve seats. Closing: disconnect theVASfrom the electrical power
supply.The blue LED goes out.The armature is pressed intoits initial position by theclosingspring.The gas solenoid valve closes within 1 s.
The strainerin the inlet of the gas solenoid valve prevents deposits of dirt particles on the valve seats.The pressure loss through the straineris very low.
VAS 1–8 . .N, VAS 1–3 . .L
The flow rate can be varied by a flow adjusting screw on the
actuator within a range from 20 to 100%. On VAS 1–3, the setting can be monitored on an indicator.

Specification

item	value
Warranty	1.5 years
Type	Kitchen Gas Shut-Off Valves, Emergency Shut-Off Valves, Truck Shut-Off Valves, AXIAL VALVES, Backwater Valves, Pressure Vacuum Breaker, Atmospheric Vacuum Breaker, Safety Relief Valves, Adjustable Relief Valves, Pressure Regulators, Boiler Feed Valves, VENT Valves, Mixing Valves, Temperature Regulating Valves, SOLENOID VALVES, Globe Valves, PLUG VALVES, Drain Valves, Air Valves & Vents, Faucet Valve, Flush Valves, REVERSING VALVE
Customized support	OEM
Application	Gas Burner Accessories
Power	Solenoid
Media	Gas
Port Size	Rp 2 1/2
Opening time	quick opening: ≤ 1 s;
Model	VAS 365R/NQ 88000052
Brand	Kromschroder
Power Supply	230 V AC, 50/60 Hz
Max. operating pressure	500mbar (50kPa)
Closing time	Quick closing: < 1 s
After Warranty Service	Video technical support
Usage	Gas Burner Accessories
